Exploded View

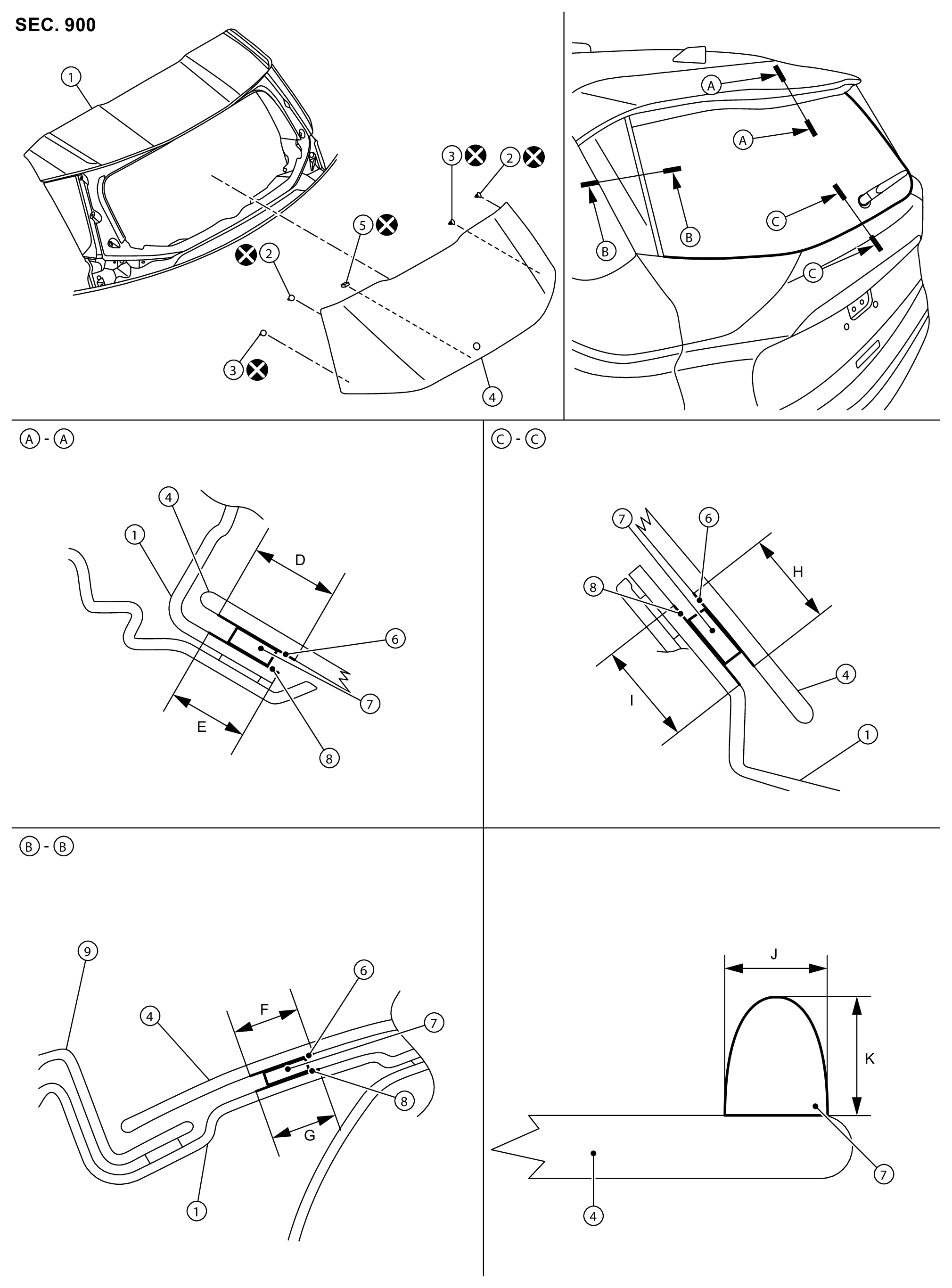

FOR USA PRODUCTION

Courtesy of NISSAN NORTH AMERICA, INC.

	Back door outer panel		Spacer (upper)		Clip
	Back door window glass		Spacer (lower)		Glass primer
	Adhesive		Painted surface primer		Rear spoiler
	: Always replace after every disassembly.

Unit: mm (in)

Portion			Primer range	Adhesive range
				J	K
Back door window glass - Back door outer panel	-	D	15.0 (0.59)	8.0 (0.31)	12.0 (0.47)
		E	15.0 (0.59)
	-	F	15.0 (0.59)	8.0 (0.31)	12.0 (0.47)
		G	15.0 (0.59)
	-	H	15.0 (0.59)	8.0 (0.31)	12.0 (0.47)
		I	15.0 (0.59)

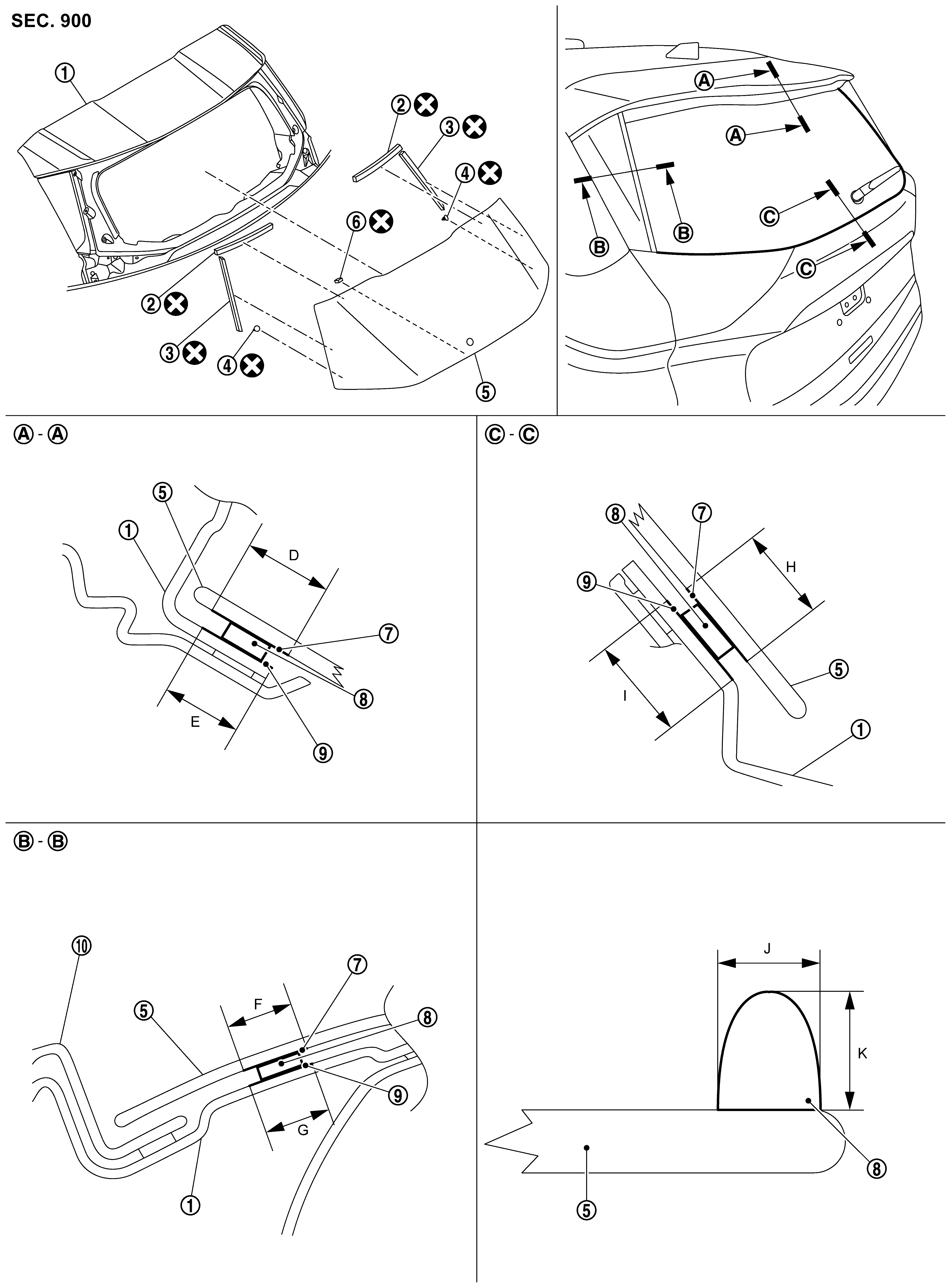

EXCEPT FOR USA PRODUCTION

Courtesy of NISSAN NORTH AMERICA, INC.

	Back door outer panel		Spacer (upper)		Spacer (middle)
	Clip		Back door window glass		Spacer (lower)
	Glass primer		Adhesive		Painted surface primer
	Rear spoiler
	: Always replace after every disassembly.

Unit: mm (in)

Portion			Primer range	Adhesive range
				J	K
Back door window glass - Back door outer panel	-	D	15.0 (0.59)	8.0 (0.31)	12.0 (0.47)
		E	15.0 (0.59)
	-	F	15.0 (0.59)	8.0 (0.31)	12.0 (0.47)
		G	15.0 (0.59)
	-	H	15.0 (0.59)	8.0 (0.31)	12.0 (0.47)
		I	15.0 (0.59)
