Removal and Installation

REMOVAL

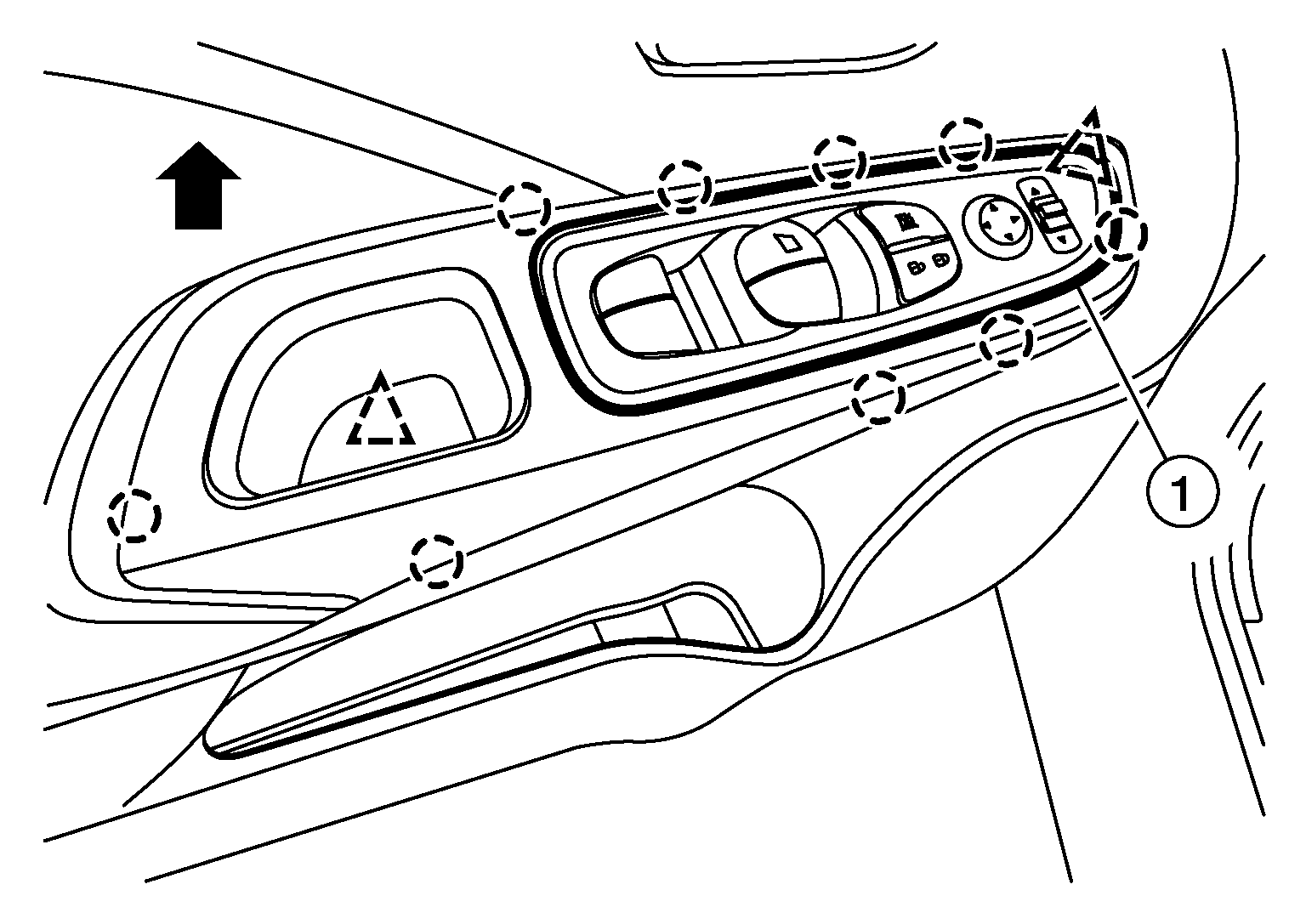

1. Release pawls using a suitable tool and remove main power window and door lock/unlock switch finisher (1) in direction shown, below ( ).

   Courtesy of NISSAN NORTH AMERICA, INC.

   	: Pawl
   	: Clip

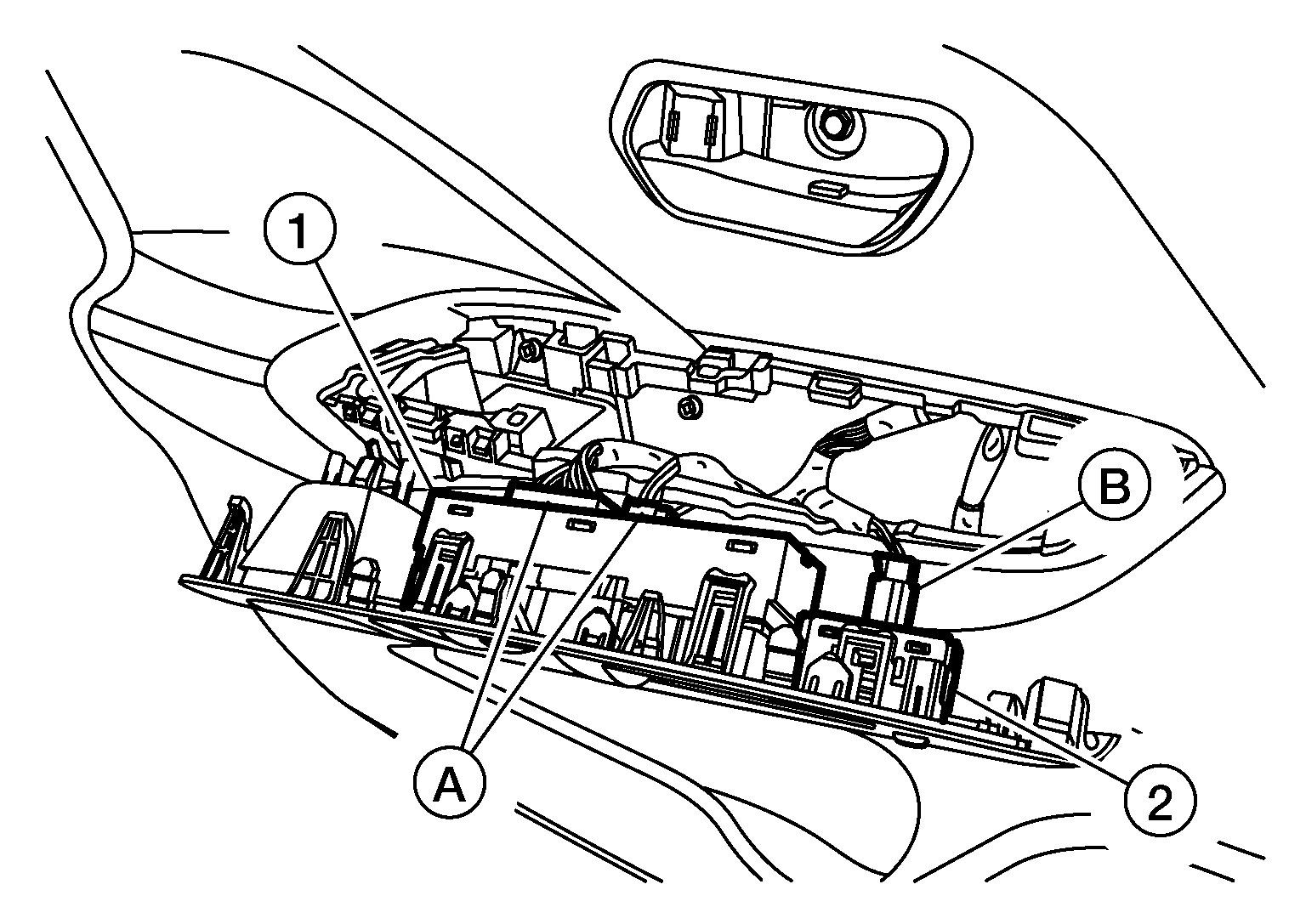

2. Disconnect the harness connectors (A) from the main power window and door lock/unlock switch (1) and harness connector (B) from the door mirror remote control switch (2) and remove.

   Courtesy of NISSAN NORTH AMERICA, INC.

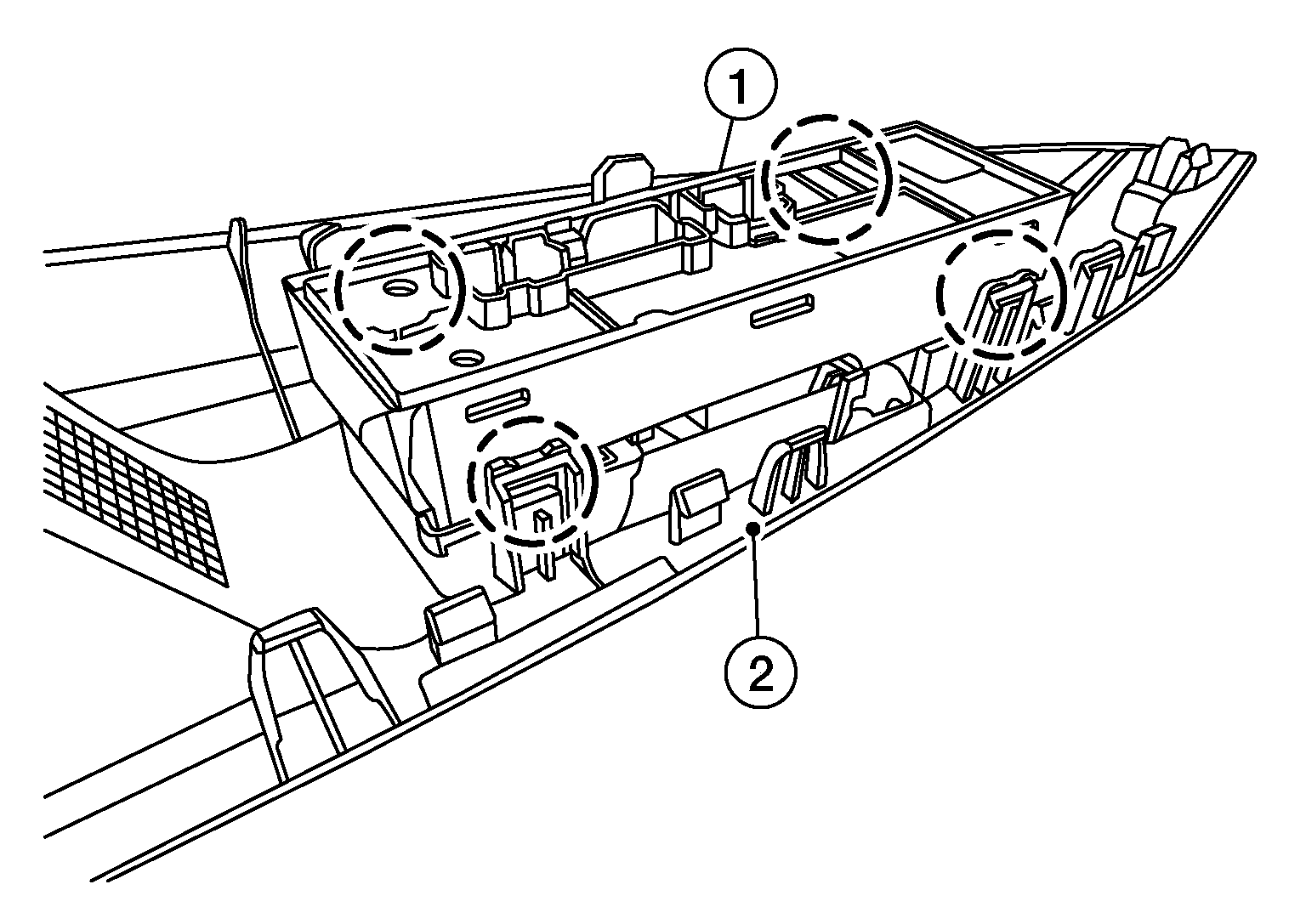

3. Release pawls, then remove main power window and door lock/unlock switch (1) from the main power window and door lock/unlock switch finisher (2).

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
