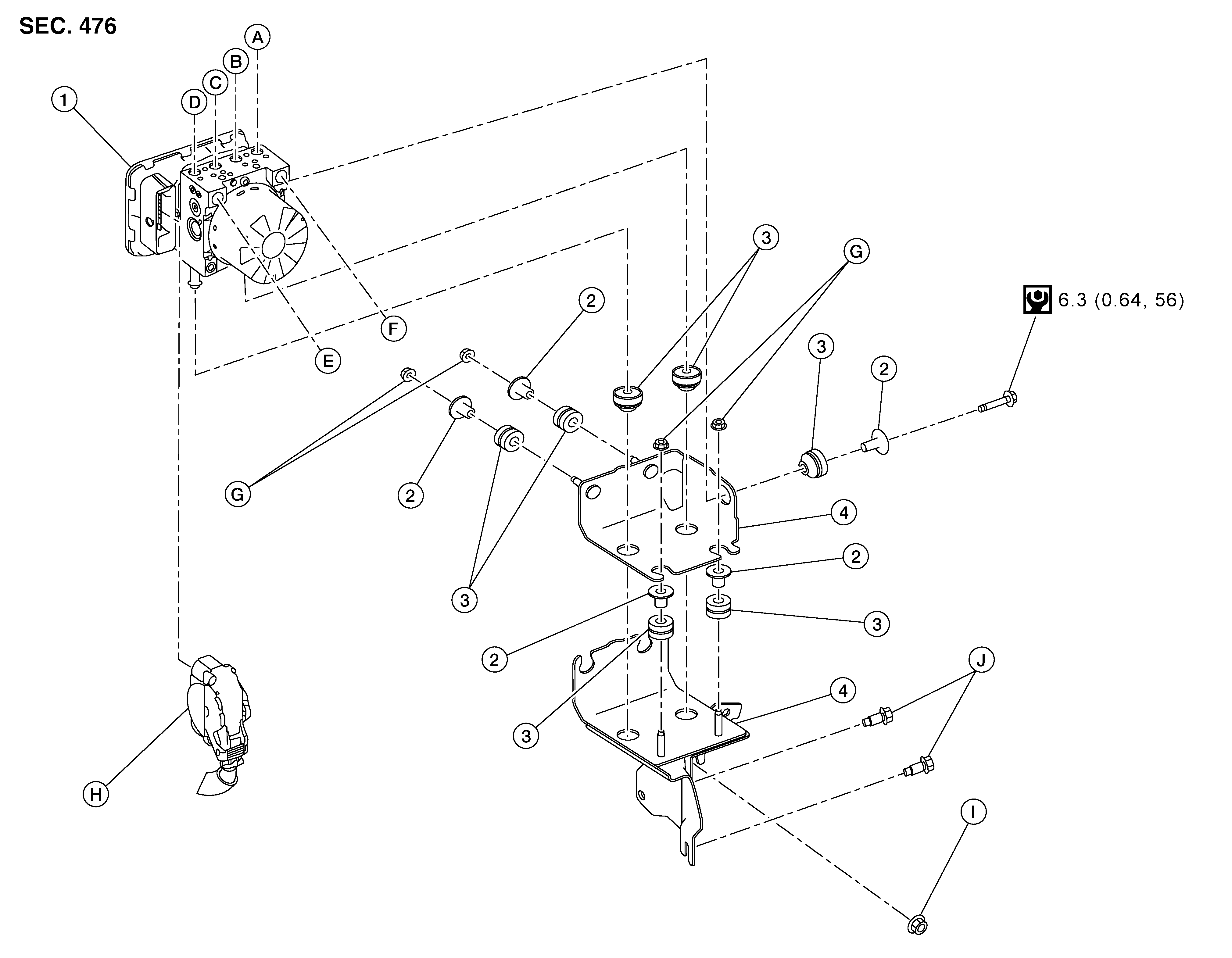

| 1. |
ABS actuator and electric unit (control unit) |
2. |
Insulator collar |
3. |
Insulator |
| 4. |
Bracket |
A. |
To rear (LH) brake caliper or wheel cylinder. Refer to Exploded View
. |
B. |
To front (RH) brake caliper. Refer to Exploded View
. |
| C. |
To front (LH) brake caliper. Refer to Exploded View
. |
D. |
To rear (RH) brake caliper or wheel cylinder. Refer to Exploded View
. |
E. |
From master cylinder primary side. Refer to Exploded View
. |
| F. |
From master cylinder secondary side. Refer to Exploded View
. |
G. |
Nut |
H. |
Harness connector |
| I. |
Refer to Removal and Installation . |
J. |
Refer to Removal and Installation . |
