Exploded View

WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

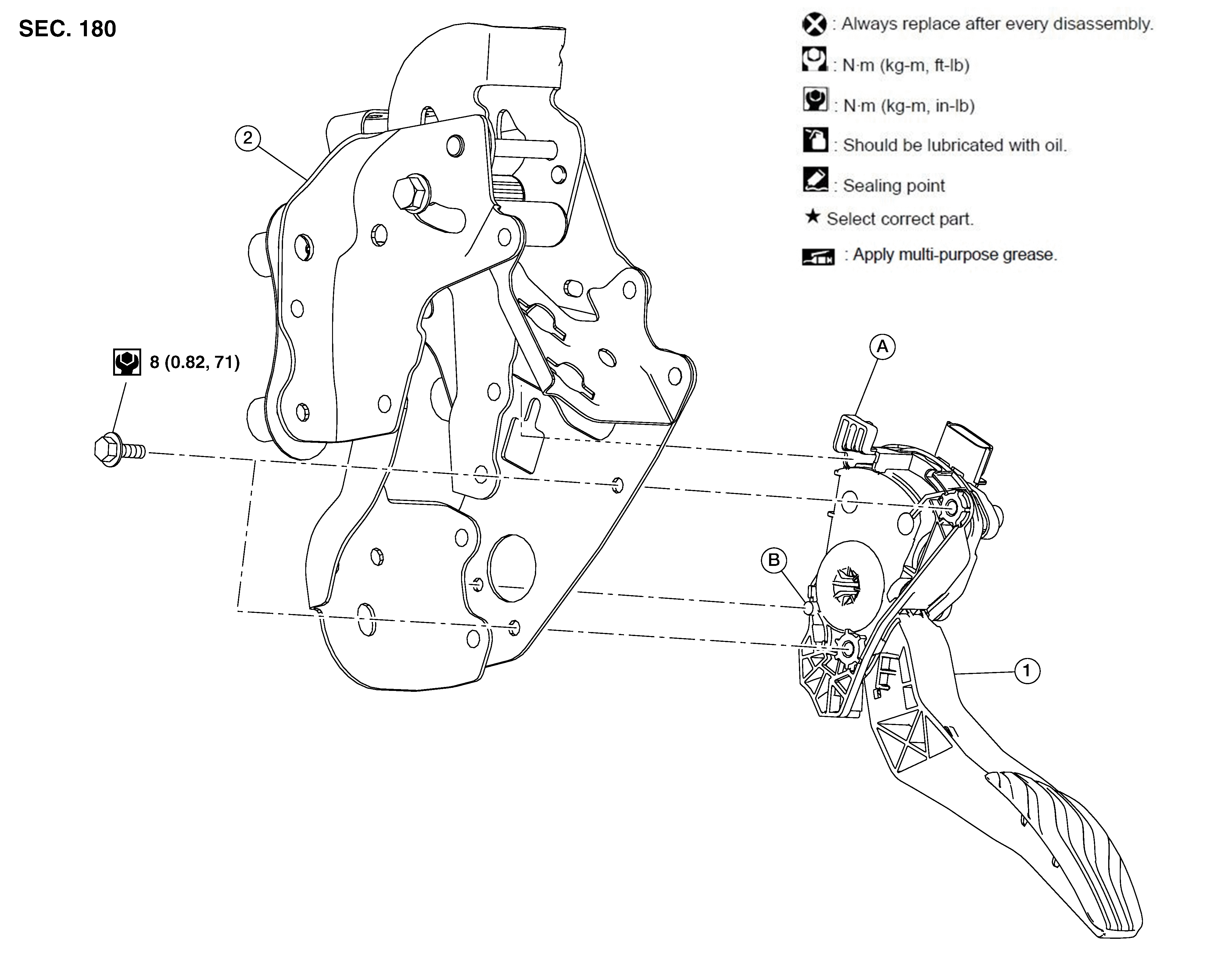

Fig 1: Accelerator Pedal Assembly With Torque Specifications
GNSDB47302Courtesy of NISSAN
1. Accelerator pedal assembly 2. Brake pedal bracket A. Locating hook
B. Locating pin
