Reference Value

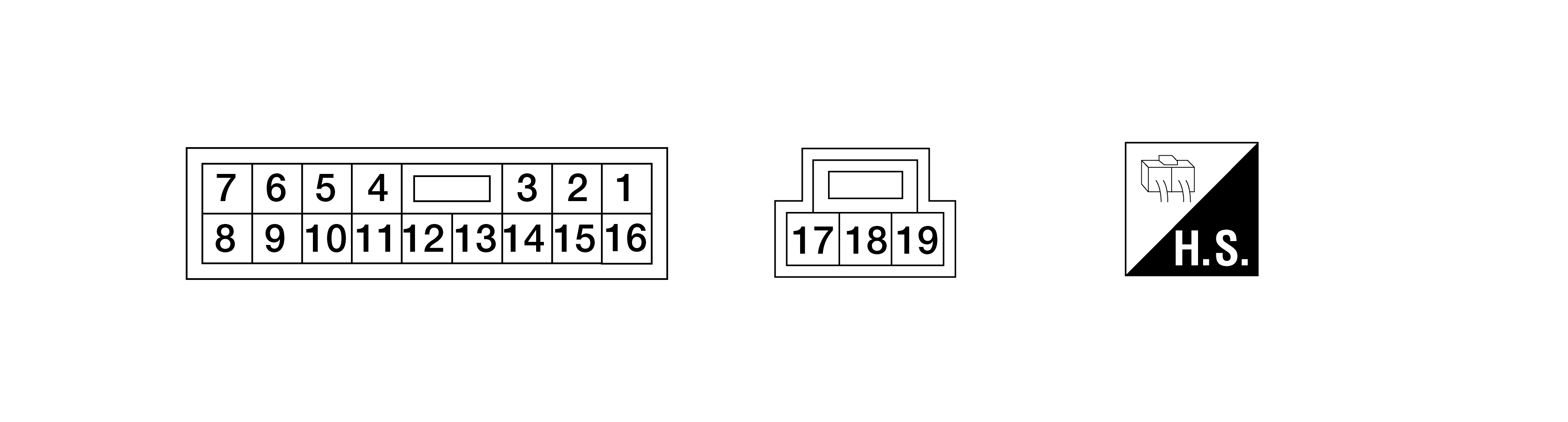

TERMINAL LAYOUT
PHYSICAL VALUES
| Terminal No. (Wire color) | Description | Condition | Voltage (Approx.) | |||
|---|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | |||
| 1 (B) | Ground | Ground | - | - | 0 V | |
| 3 (SB) | Ground | Door lock signal | Output | Door lock switch in main power window and door lock/unlock switch | Pressed | 0 V |
| Not pressed | Battery voltage | |||||
| 4 (W) | 12 (V) | Encoder pulse signal 2 | Input | When the power window motor operates. | ||
| 5 (R) | 12 (V) | Encoder pulse signal 1 | Input | When the power window motor operates. | ||
| 6 (Y) | Ground | Rear power window motor RH DOWN signal | Output | When the rear RH switch on the main power window and door lock/unlock is operated in the DOWN position. | Battery voltage | |
| 7 (P) | Ground | Rear power window motor RH UP signal | Output | When the rear RH switch on the main power window and door lock/unlock is operated in the UP position. | Battery voltage | |
| 8 (BR) | Ground | Rear power window motor LH DOWN signal | Output | When the rear LH switch on the main power window and door lock/unlock is operated in the DOWN position. | Battery voltage | |
| 9 (LG) | Ground | Rear power window motor LH UP signal | Output | When the rear LH switch on the main power window and door lock/unlock is operated in the UP position. | Battery voltage | |
| 10 (L) | Ground | Ignition power supply | Input | Ignition switch ON | Battery voltage | |
| Ignition switch OFF | 0 V | |||||
| 11 (BG) | Ground | Power window serial link | Input/ Output | Ignition switch ON or power window operating | ||
| 12 (V) | Ground | Encoder ground | - | - | 0 V | |
| 14 (G) | Ground | Encoder power supply | Output | When ignition switch ON or power window timer operates. | Battery voltage | |
| 15 (BG) | Ground | Door unlock signal | Output | Door unlock switch in main power window and door lock/unlock switch | Pressed | 0 V |
| Not pressed | Battery voltage | |||||
| 17 (L) | 19 (BR) | Front power window motor LH UP signal | Output | When the front LH switch on the main power window and door lock/unlock is operated in the UP position. | Battery voltage | |
| 18 (LG) | Ground | Battery power supply | Input | - | Battery voltage | |
| 19 (BR) | 17 (L) | Front power window motor LH DOWN signal | Output | When the front LH switch on the main power window and door lock/unlock is operated in the DOWN position. | Battery voltage | |
