Exploded View

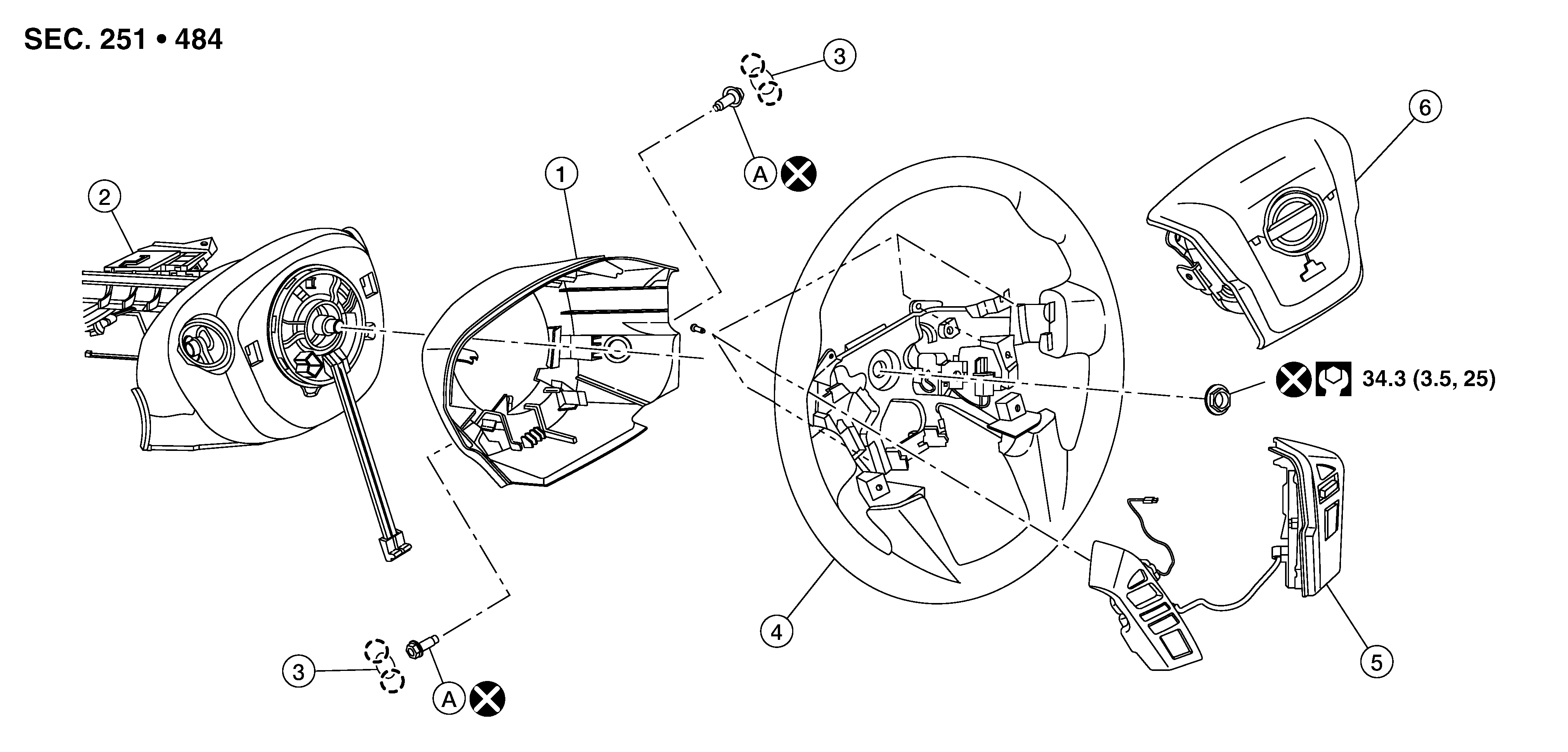

Fig 1: Steering Wheel With Torque Specifications
GNSDB135122Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering wheel cover 2. Steering column 3. Side lid
4. Steering wheel 5. ICC steering switches 6. Driver air bag module
A. Refer to Installation . SYMBOL Pawl
