Removal and Installation

REMOVAL

Remove the door finisher. Refer to Removal and Installation .

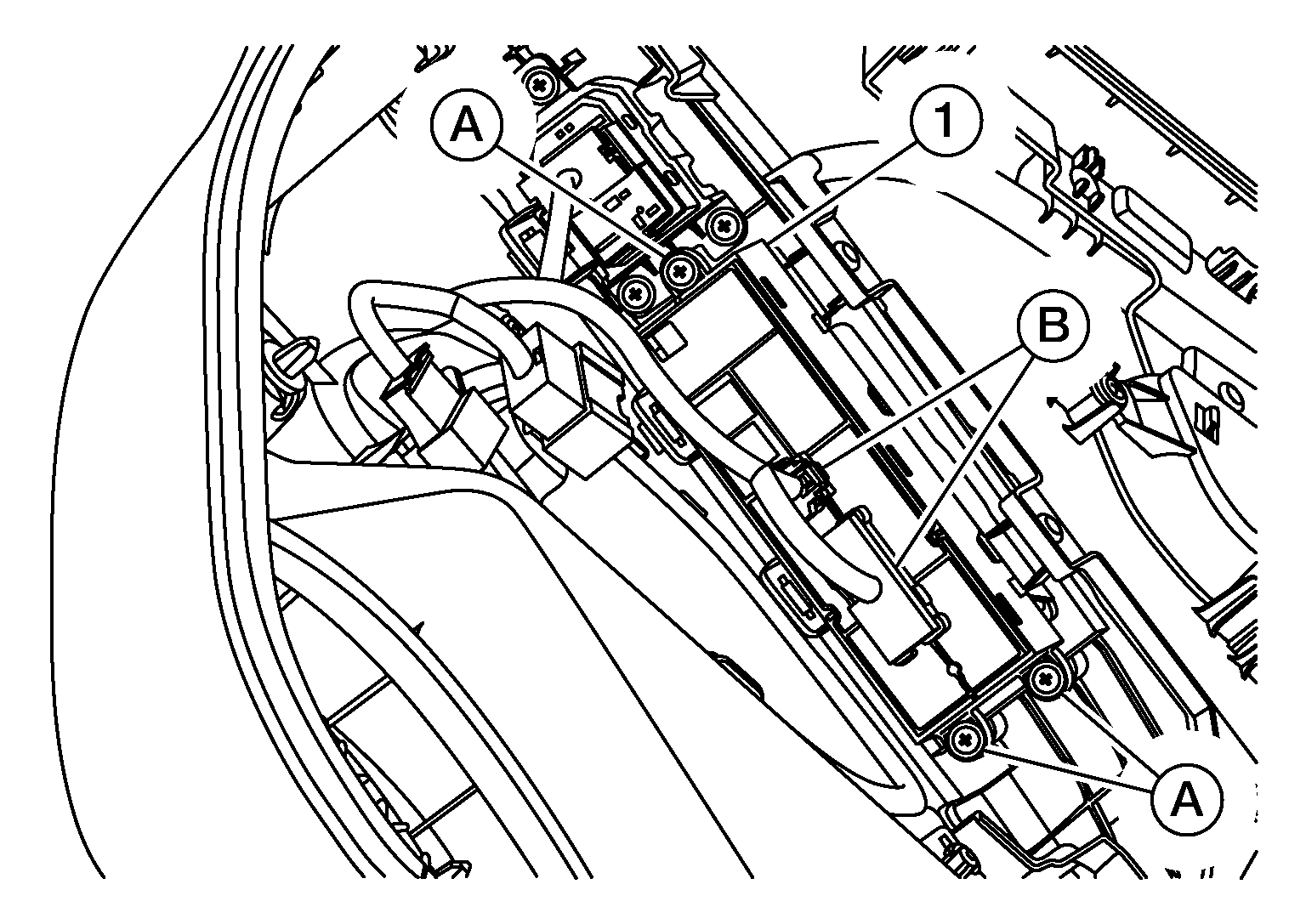

Disconnect the harness connectors (B) from the main power window and door lock/unlock switch (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the screws (A) and the main power window and door lock/unlock switch.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When main power window and door lock/unlock switch is removed or replaced, it is necessary to perform the initialization procedure. Refer to Description .
When main power window and door lock/unlock switch is removed or replaced, it is necessary to perform the check anti-pinch procedure. Refer to Description .
