Exploded View

REMOVAL (JAPAN PRODUCTION MODELS)

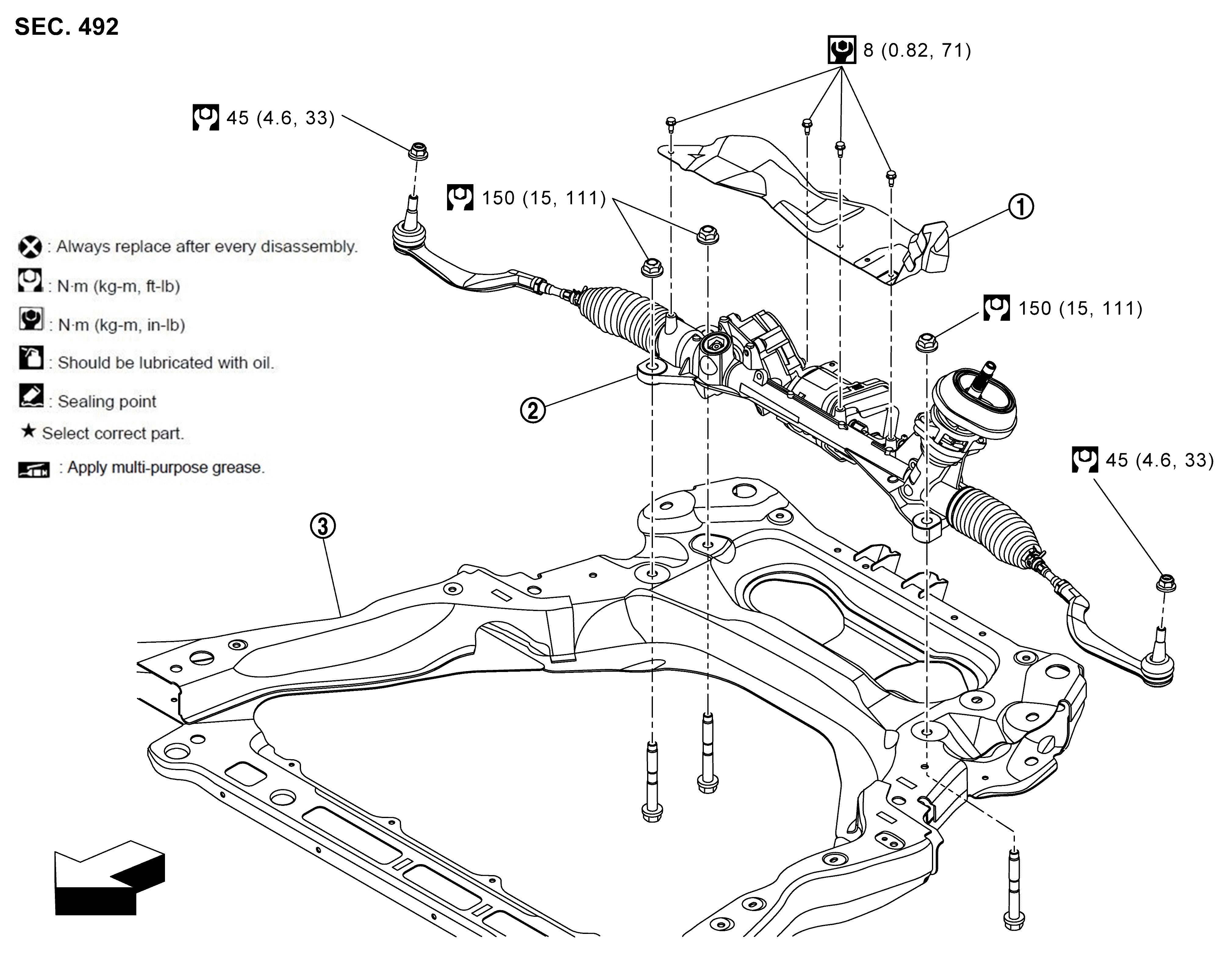

Fig 1: Steering Gear And Linkage With Torque Specifications - Japan Production Models

Courtesy of NISSAN

	Heat insulator		Steering gear assembly		Front suspension member
	: Vehicle front
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)

REMOVAL (NORTH AMERICA PRODUCTION MODELS)

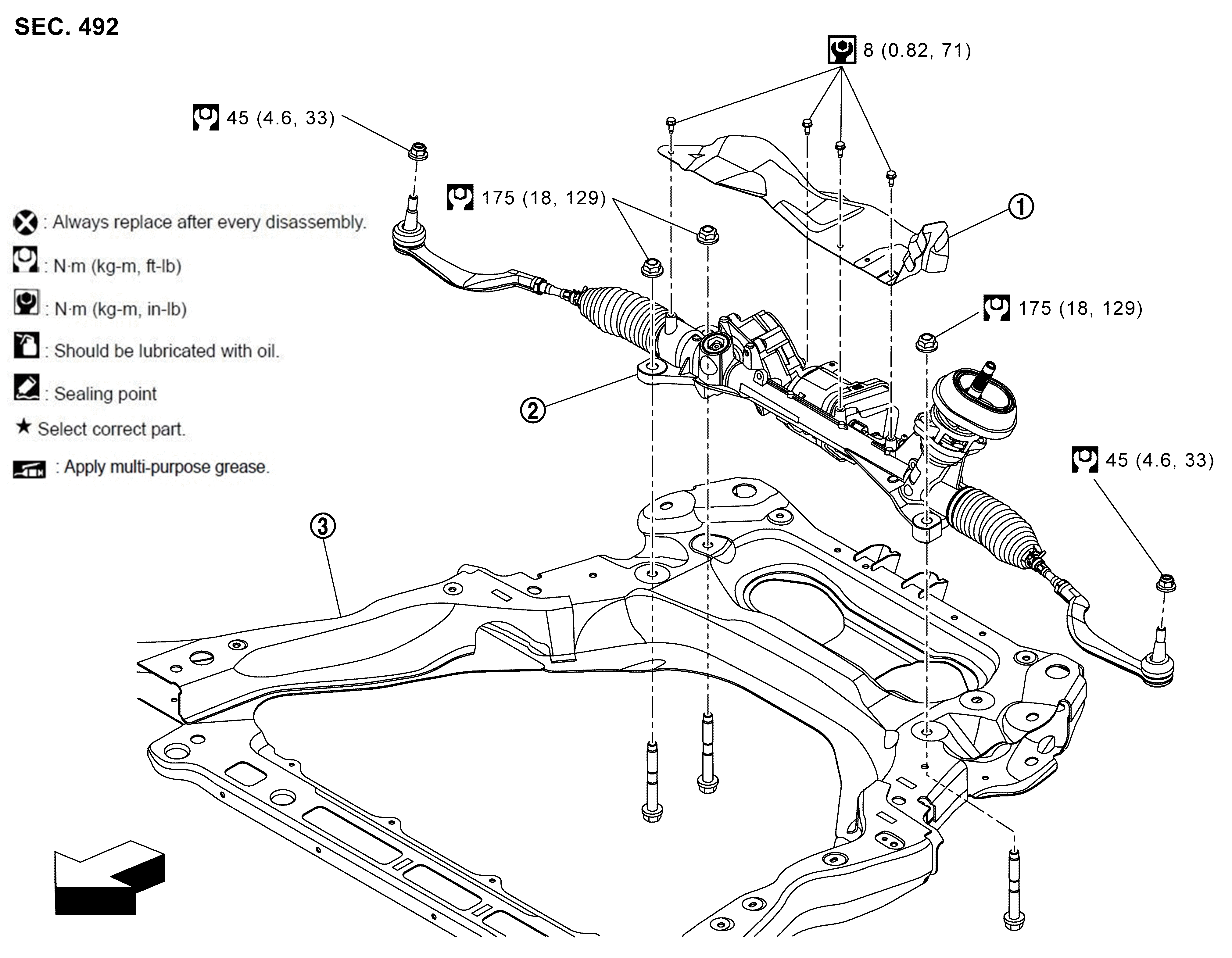

Fig 2: Steering Gear And Linkage With Torque Specifications - North America Production Models

Courtesy of NISSAN

	Heat insulator		Steering gear assembly		Front suspension member
	: Vehicle front
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
