Component Operation

WARNING: This page is about a different car, the 2022 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

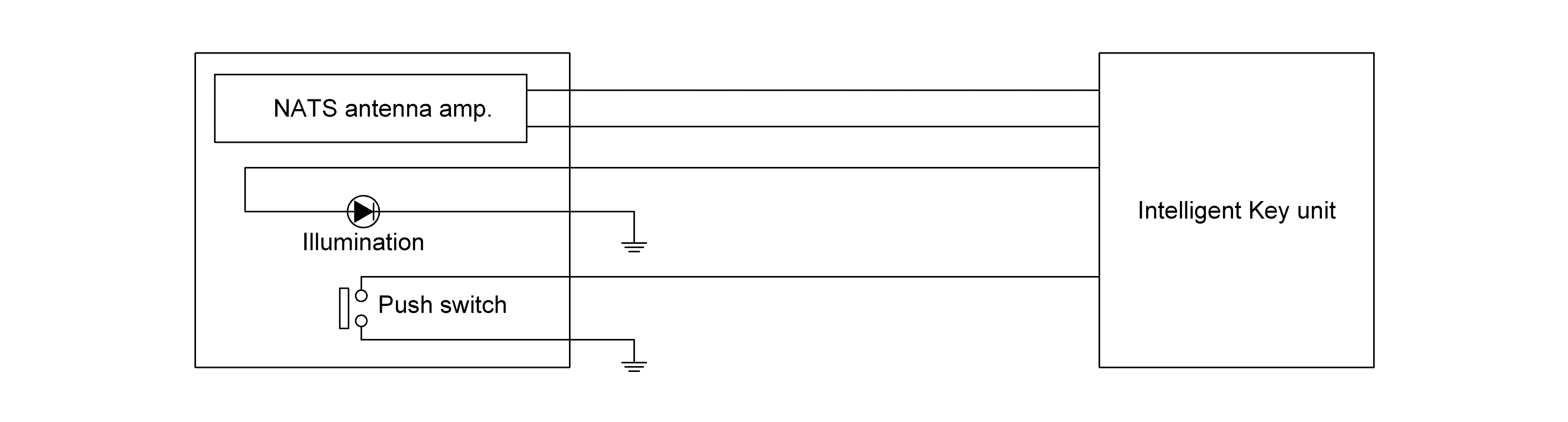

Push-button ignition switch is pressed, and transmits the status signal to Intelligent Key unit.

GNSILL0261299Courtesy of NISSAN NORTH AMERICA, INC.
