Removal and Installation

CAUTION:

CAUTION:  Never bend the fixing pawl of power window switch finisher.

REMOVAL

  1. Remove power window switch finisher. Refer to Removal and Installation .
  2. Remove rear power window switch SYMBOL from power window switch finisher SYMBOL .

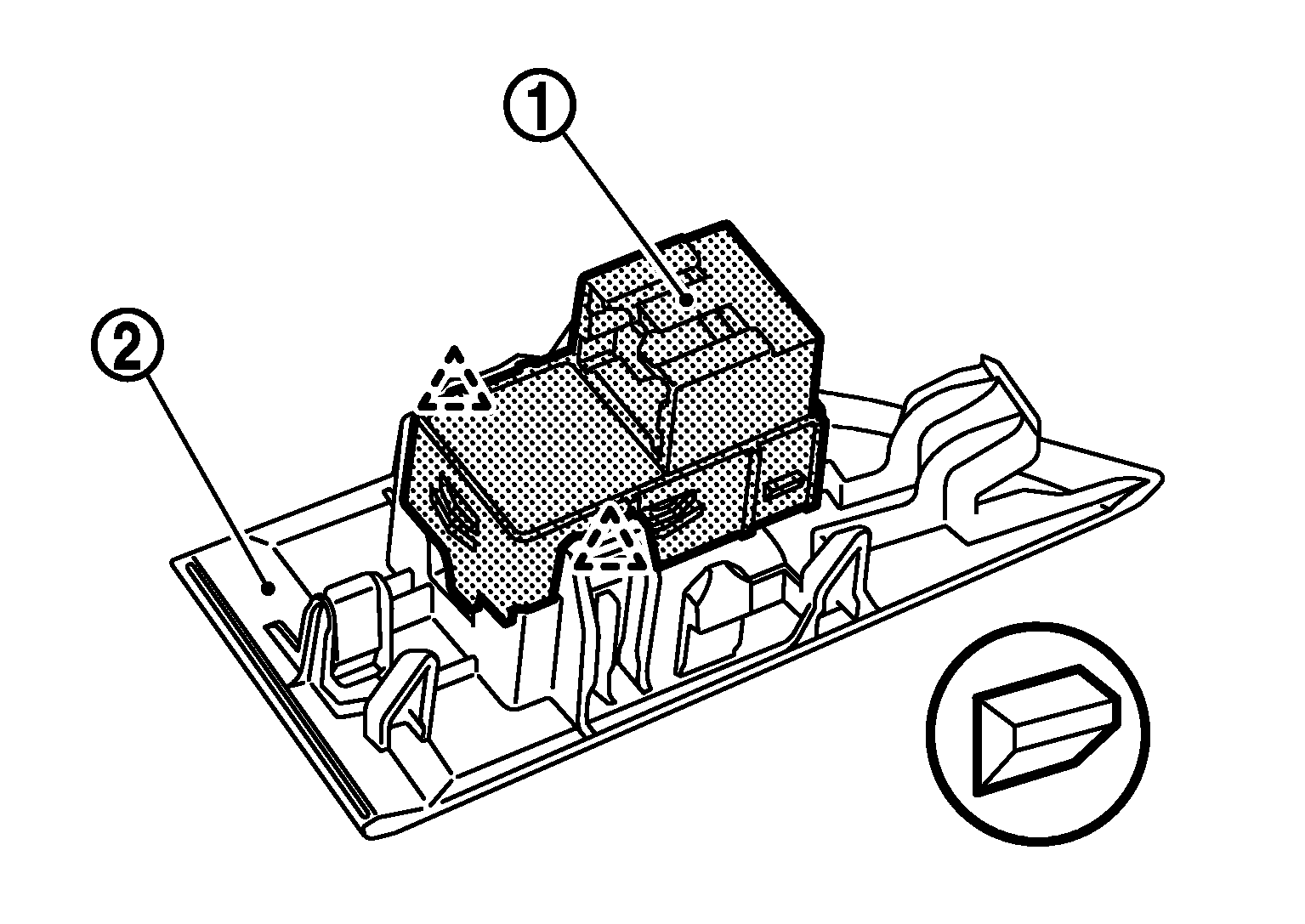

    GNSDB35278Courtesy of NISSAN
    SYMBOL : Pawl

INSTALLATION

Install in the reverse order of removal.
