Heated Steering Wheel Switch
>>

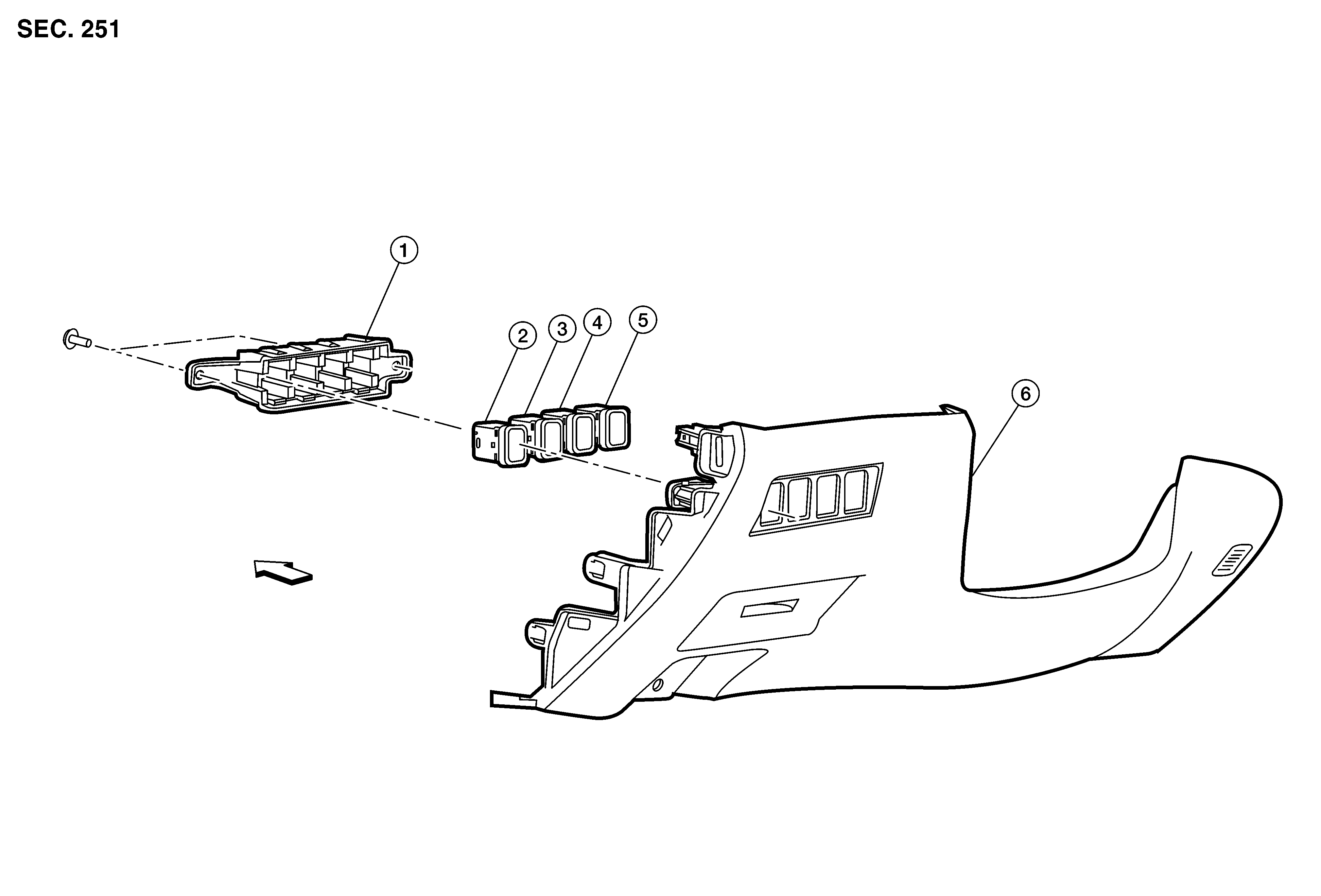

Exploded View
Exploded View
Courtesy of NISSAN
1.
Switch carrier
2.
Trunk lid switch
3.
VDC OFF switch
4.
Heated steering wheel switch
5.
Rear sunshade switch (if equipped)
6.
Instrument lower panel LH
Front
