Removal and Installation

REMOVAL

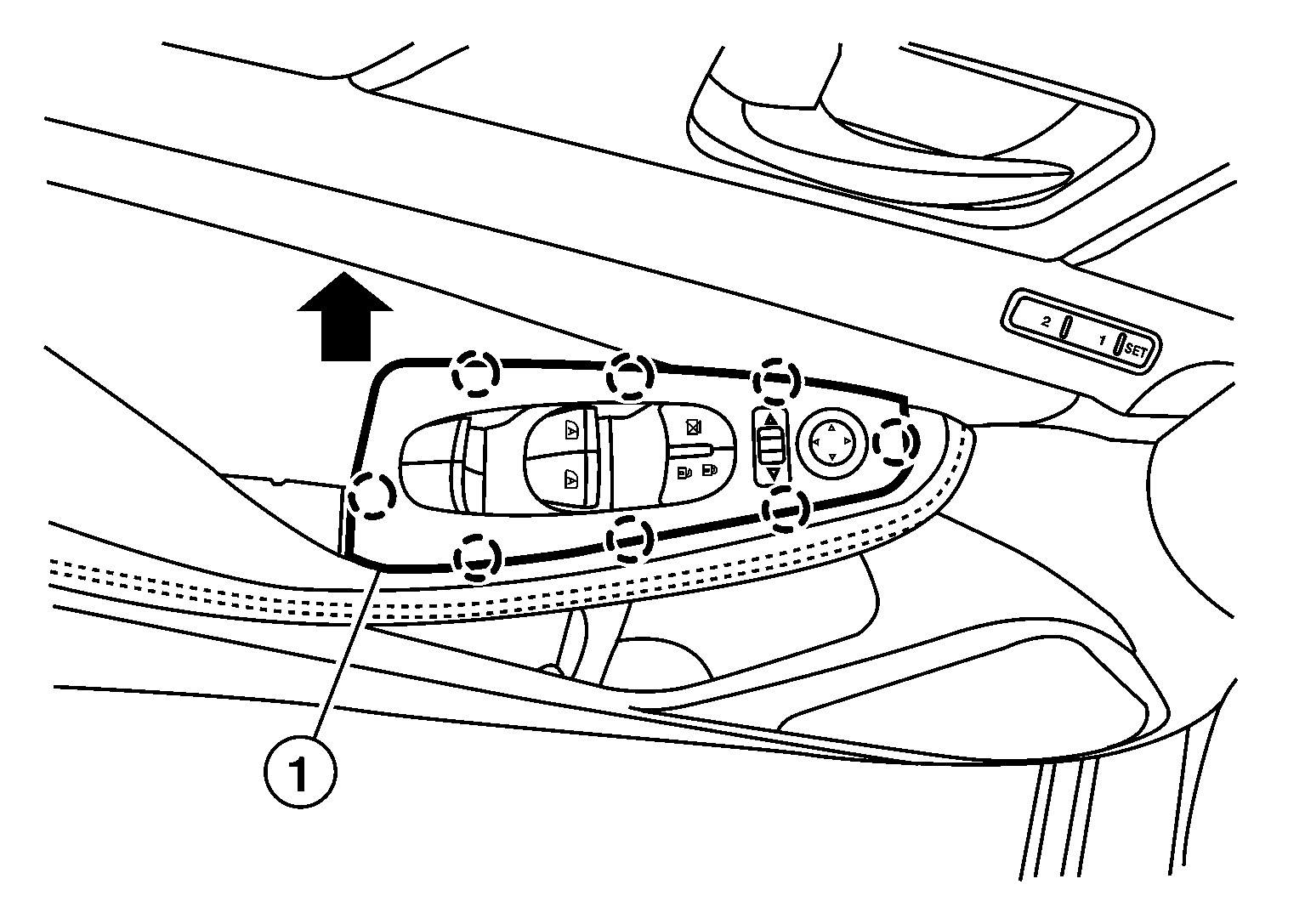

  1. Release pawls using a suitable tool and the remove main power window and door lock/unlock switch finisher (1) upward in direction shown in the illustration (SYMBOL ).
    GNSDB55720Courtesy of NISSAN
    SYMBOL : Pawl

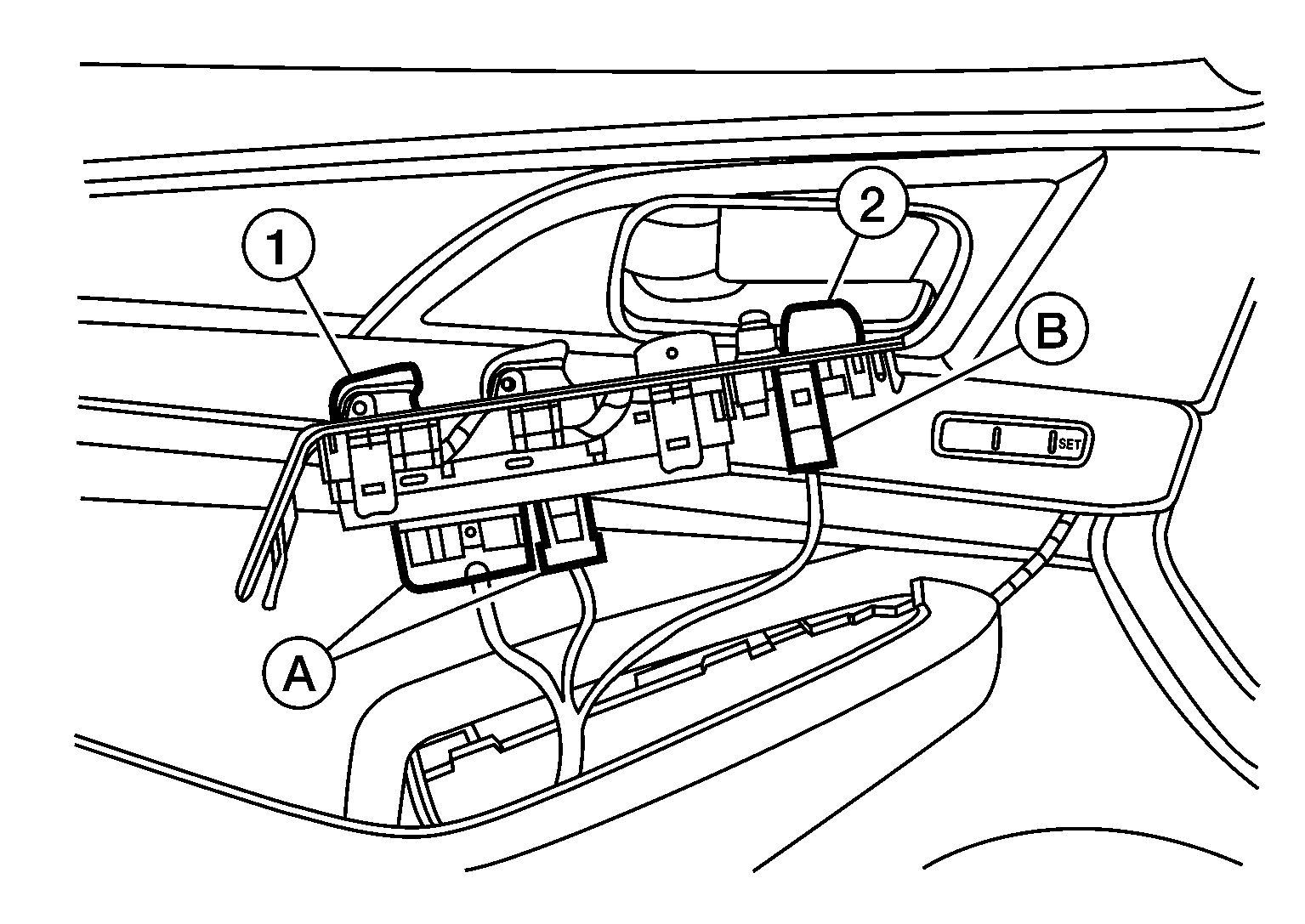

  2. Disconnect the harness connectors (A) from the main power window and door lock/unlock switch (1) and harness connector (B) from the door mirror remote control switch (2) and remove.
    GNSDB55082Courtesy of NISSAN

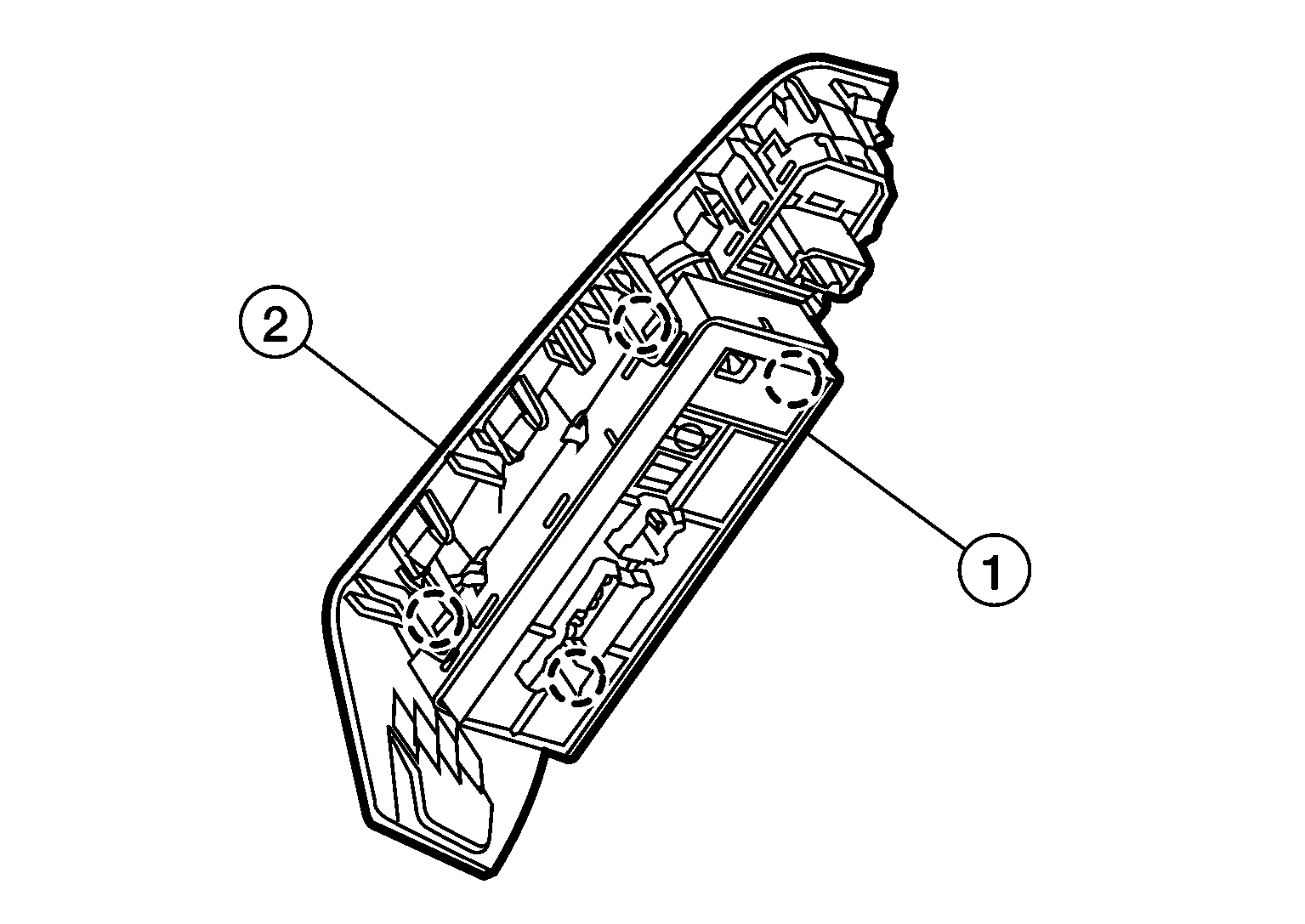

  3. Release pawls, then remove main power window and door lock/unlock switch (1) from the switch finisher (2).
    GNSDB54992Courtesy of NISSAN
    SYMBOL : Pawl

INSTALLATION

Installation is in the reverse order of removal.

NOTE: SYMBOL Whenever the main power window and door lock/unlock switch is disconnected from the harness connector, it is necessary to perform the initialization procedure. Refer to Description .
