Removal and Installation

REMOVAL

Remove the main power window and lock/unlock switch LH escutcheon.

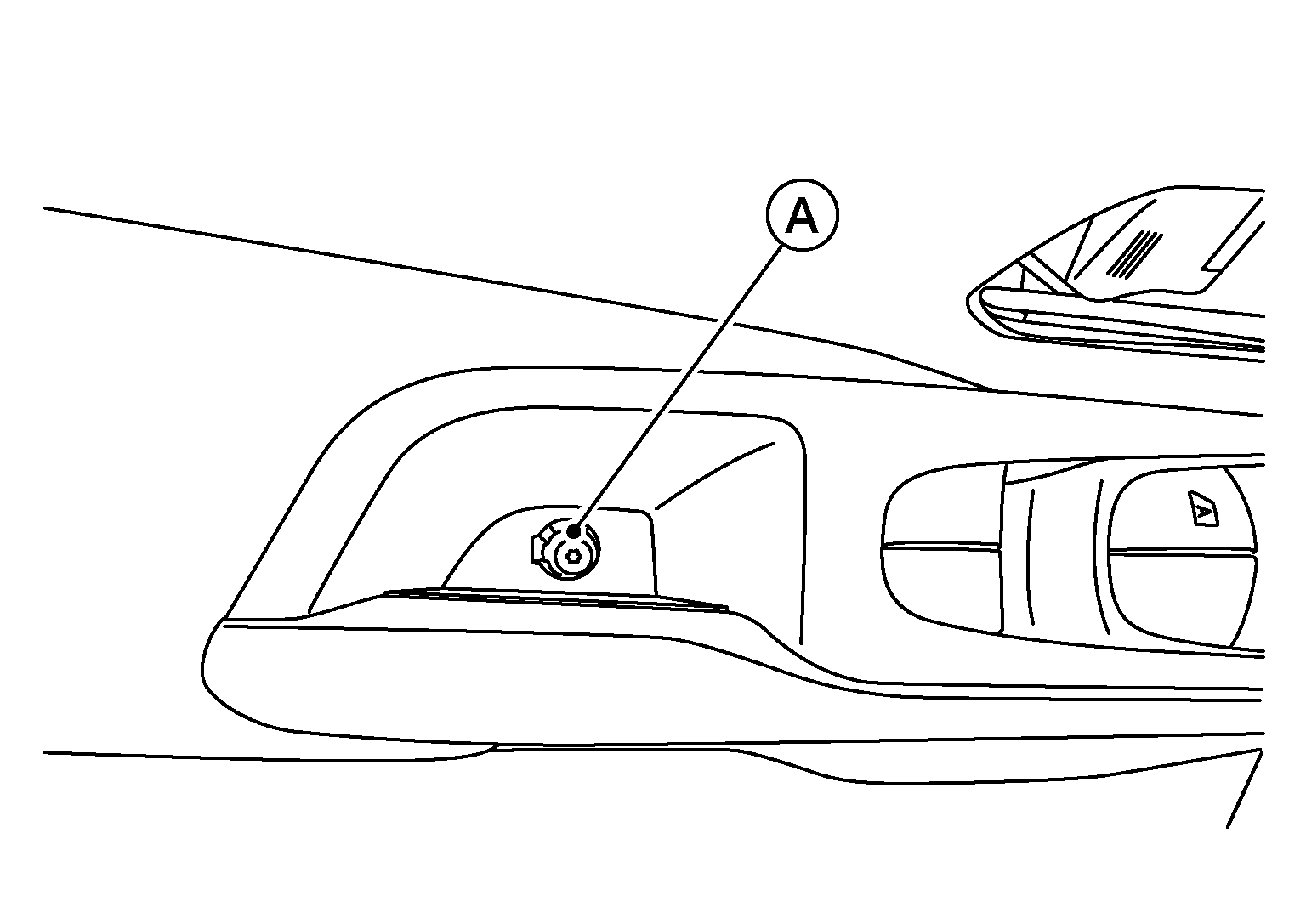

Remove the main power window and door lock/unlock switch screw (A).

Courtesy of NISSAN

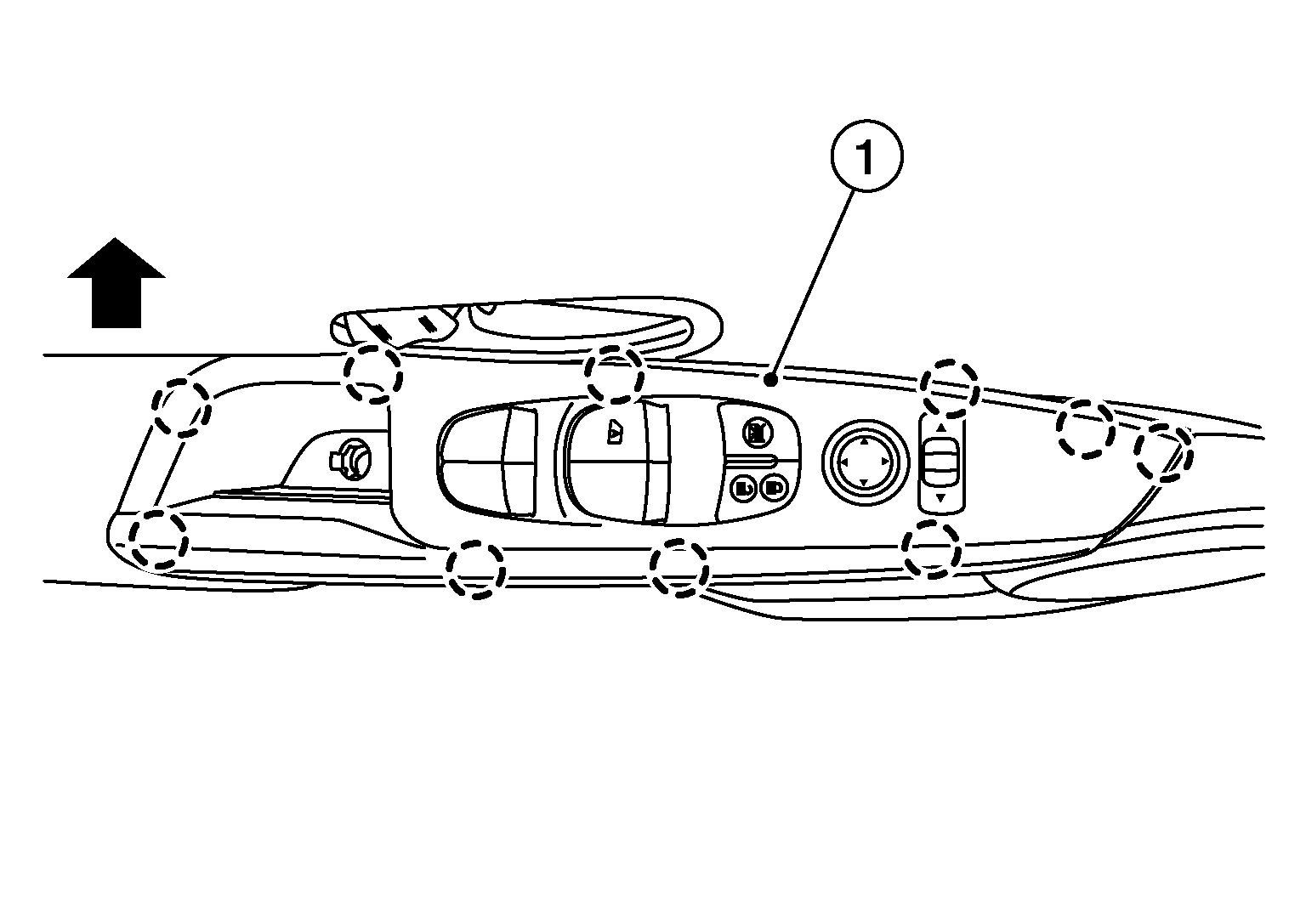

Release pawls using a suitable tool and remove main power window and door lock/unlock switch finisher (1) in direction shown, below ( ).

Courtesy of NISSAN

: Pawl

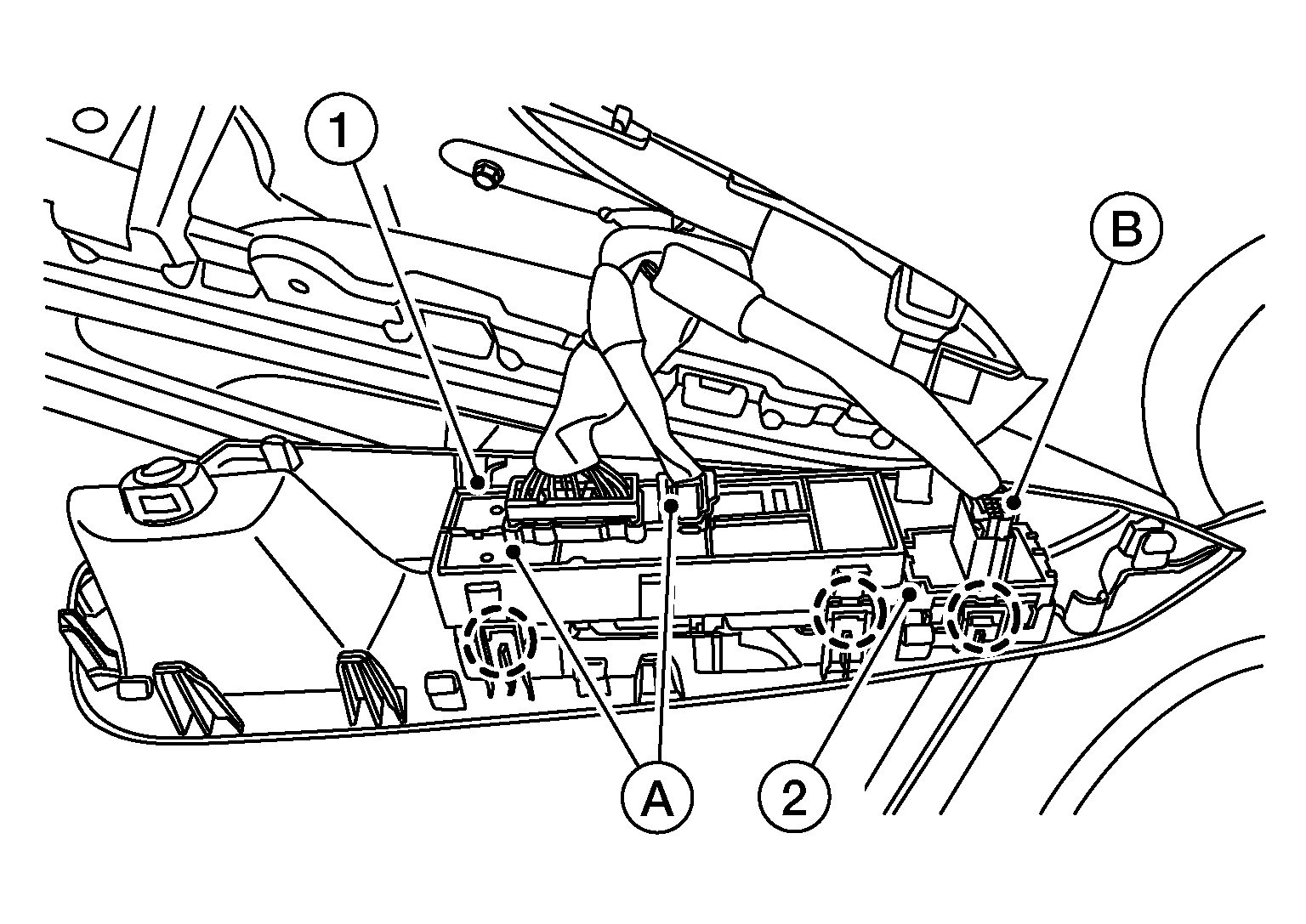

Disconnect the harness connectors (A) from the main power window and door lock/unlock switch (1) and harness connector (B) from the door mirror remote control switch (2) and remove.

Courtesy of NISSAN

: Pawl

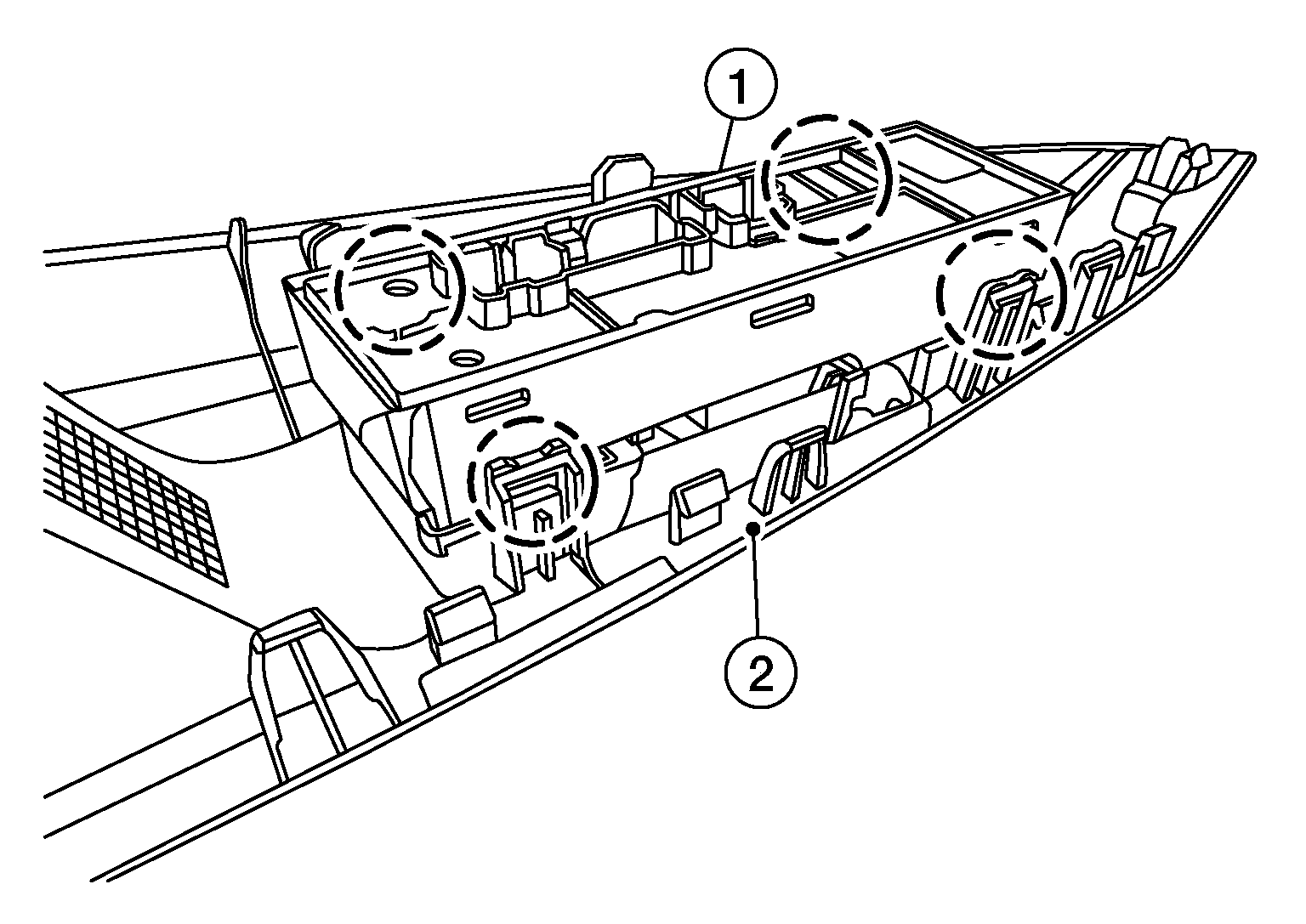

Release pawls, then remove main power window and door lock/unlock switch (1) from the main power window and door lock/unlock switch finisher (2).

Courtesy of NISSAN

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Whenever the main power window and door lock/unlock switch is disconnected from the harness connector, it is necessary to perform the initialization procedure. Refer to Description .
