Home
>>
Nissan-Datsun
>>
2022
>>
Maxima SR
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Steering System
>>
Unit Removal And Installation
>>
Steering Gear And Linkage
>>
Exploded View
Exploded View

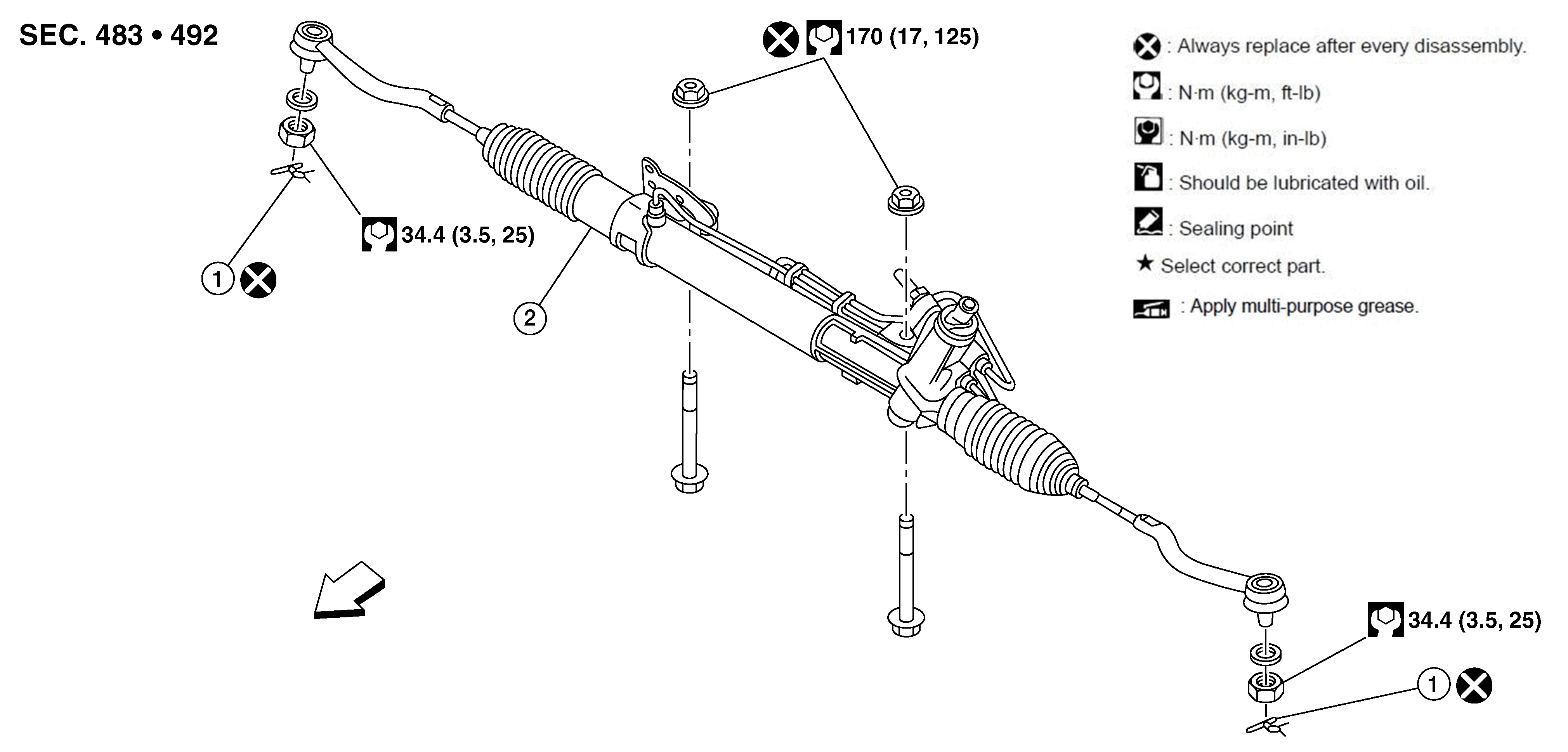

Fig 1: Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Cotter pin
2.
Steering gear
Front
Courtesy of NISSAN NORTH AMERICA, INC.
