Home >> Nissan-Datsun >> 2022 >> Kicks SR >> Repair and Diagnosis >> Accessories & Equipment >> Ignition Switch/Steering Lock >> Security Control System >> Wiring Diagram >> Intelligent Key System-Engine Start Function >> Wiring Diagram

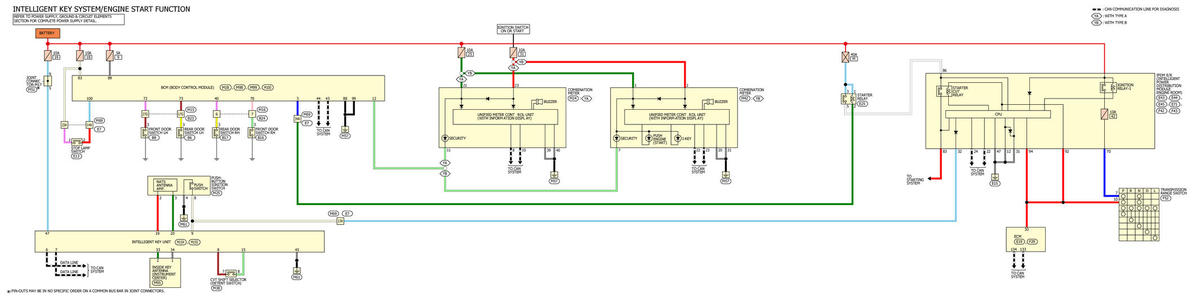

Intelligent Key System-Engine Start Function: Wiring Diagram

GNSW9555

Courtesy of EWD
