Removal and Installation: Removal

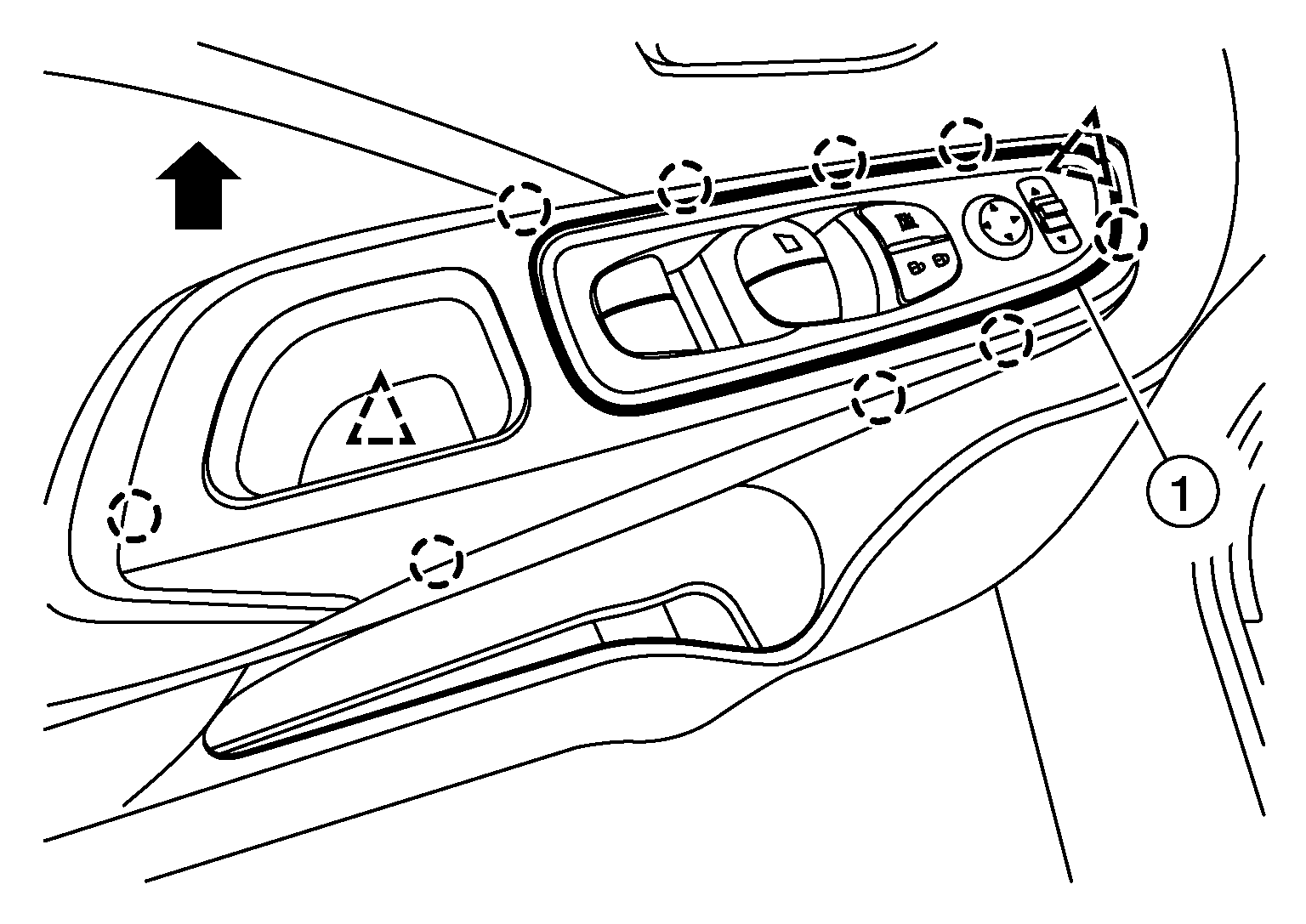

  1. Release pawls using a suitable tool and remove main power window and door lock/unlock switch finisher (1) in direction shown (SYMBOL ).
    GNSALKIA0829Z-829Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

    SYMBOL

    : Clip

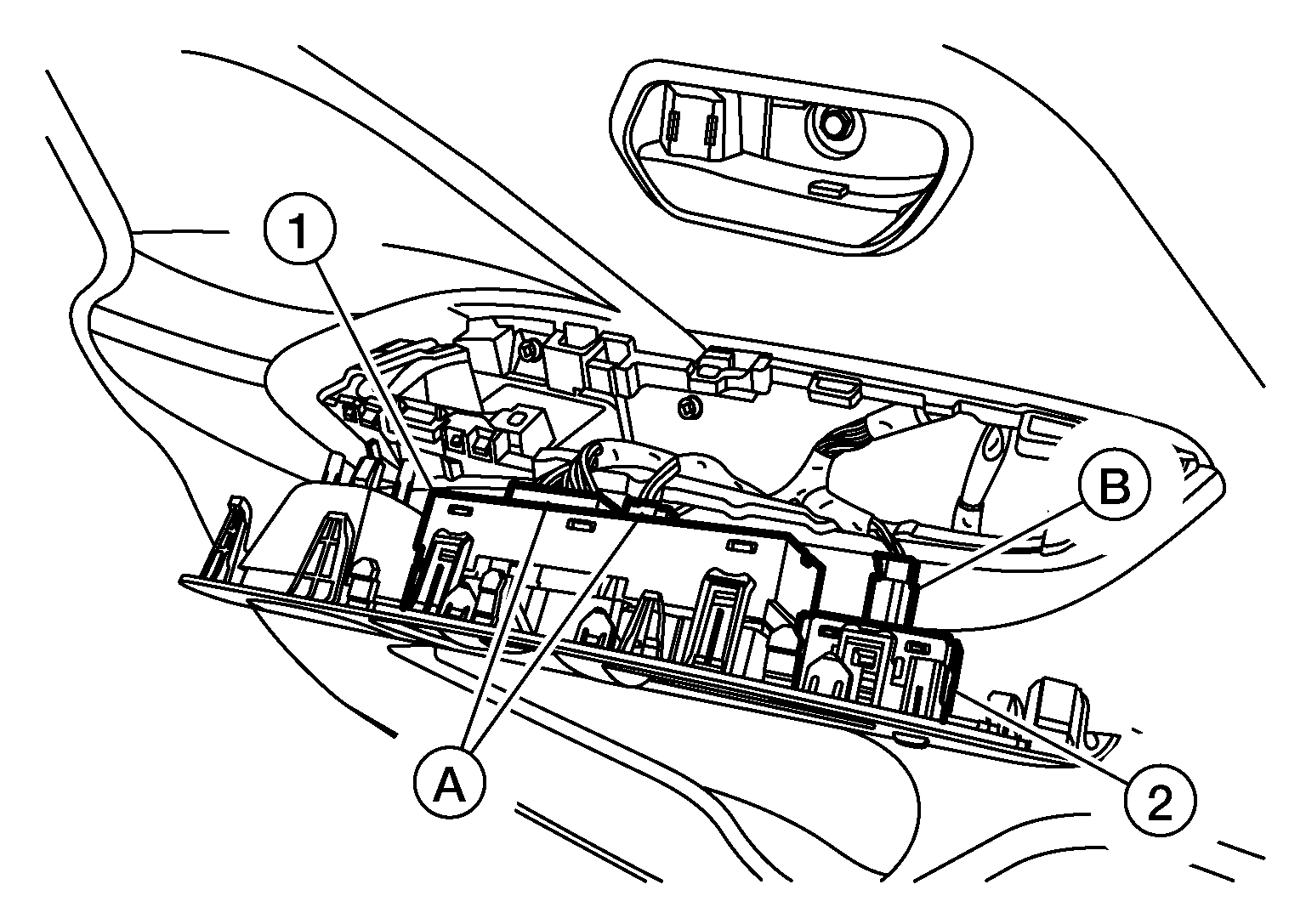

  2. Disconnect the harness connectors (A) from the main power window and door lock/unlock switch (1) and harness connector (B) from the door mirror remote control switch (2) and remove.
    GNSALKIA0830Z-830Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release pawls, then remove main power window and door lock/unlock switch (1) from the main power window and door lock/unlock switch finisher (2).
    GNSAWKIA4084Z-084Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
