Home >> Nissan-Datsun >> 2021 >> Versa S, Automatic CVT Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security Control System >> With Intelligent Key System >> Wiring Diagram >> Intelligent Key System-Engine Start Function >> Wiring Diagram

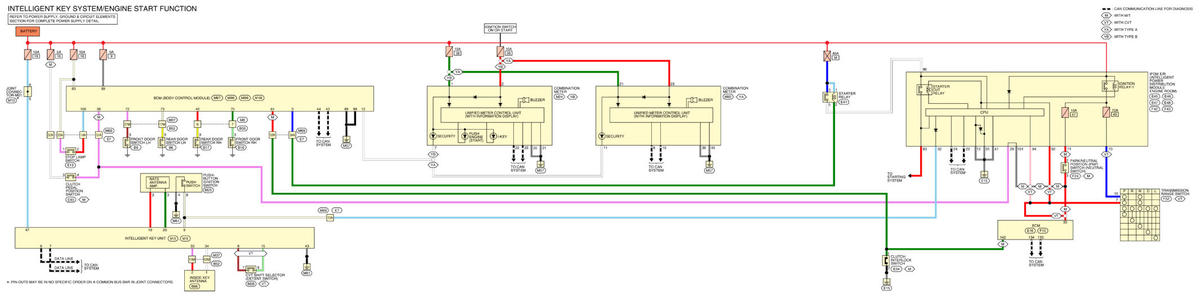

Intelligent Key System-Engine Start Function: Wiring Diagram

GNS2199C015501-501

Courtesy of EWD
