Exploded View

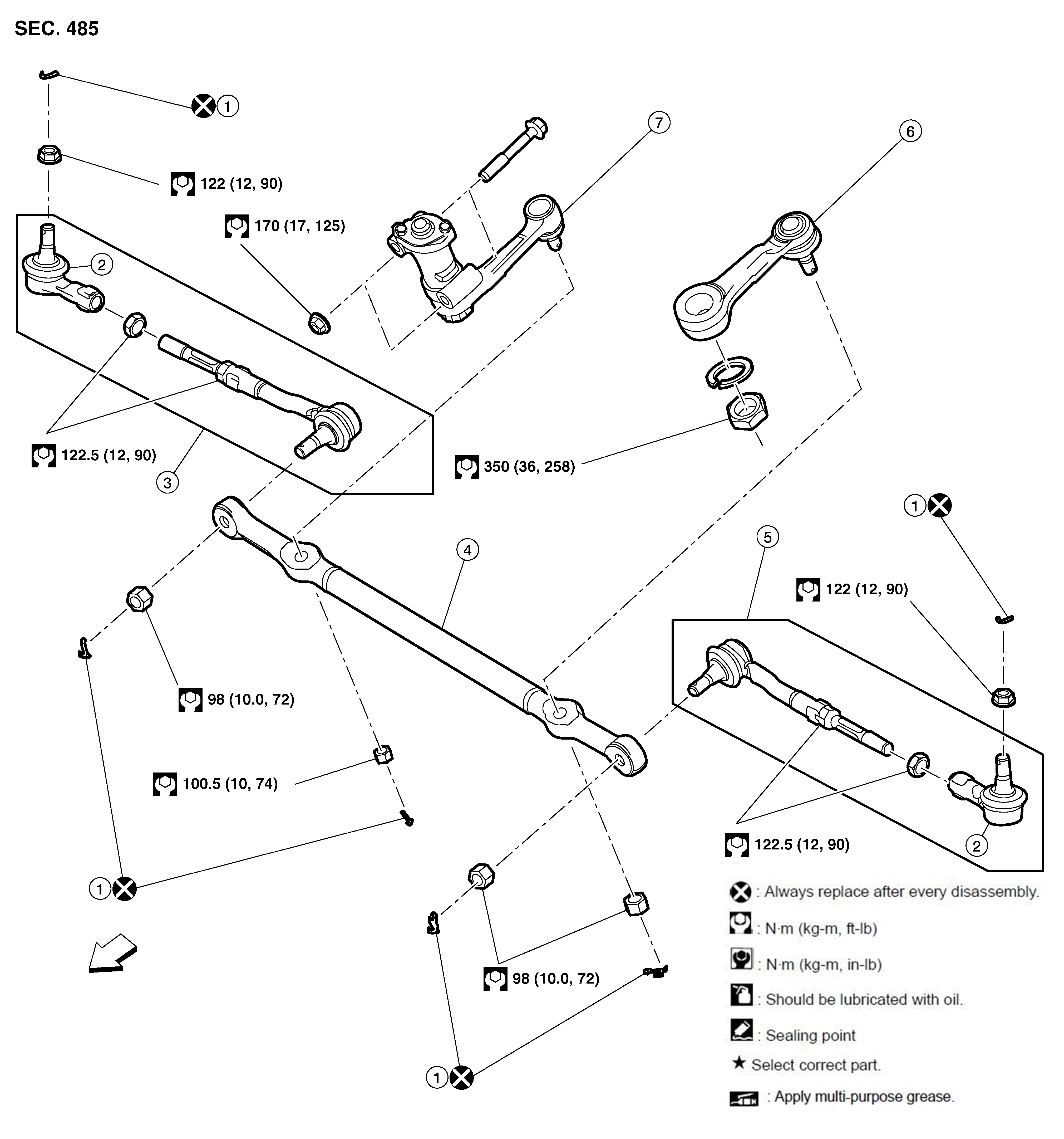

Fig 1: Inner And Outer Sockets Components With Torque Specifications - 2WD
GNSAWGIA0446Z-446Courtesy of NISSAN NORTH AMERICA, INC.

1.

Cotter pin

2.

Outer socket

3.

Inner/outer socket assembly (RH)

4.

Relay rod

5.

Inner/outer socket assembly (LH)

6.

Pitman arm

7.

Idler arm

SYMBOL

Front

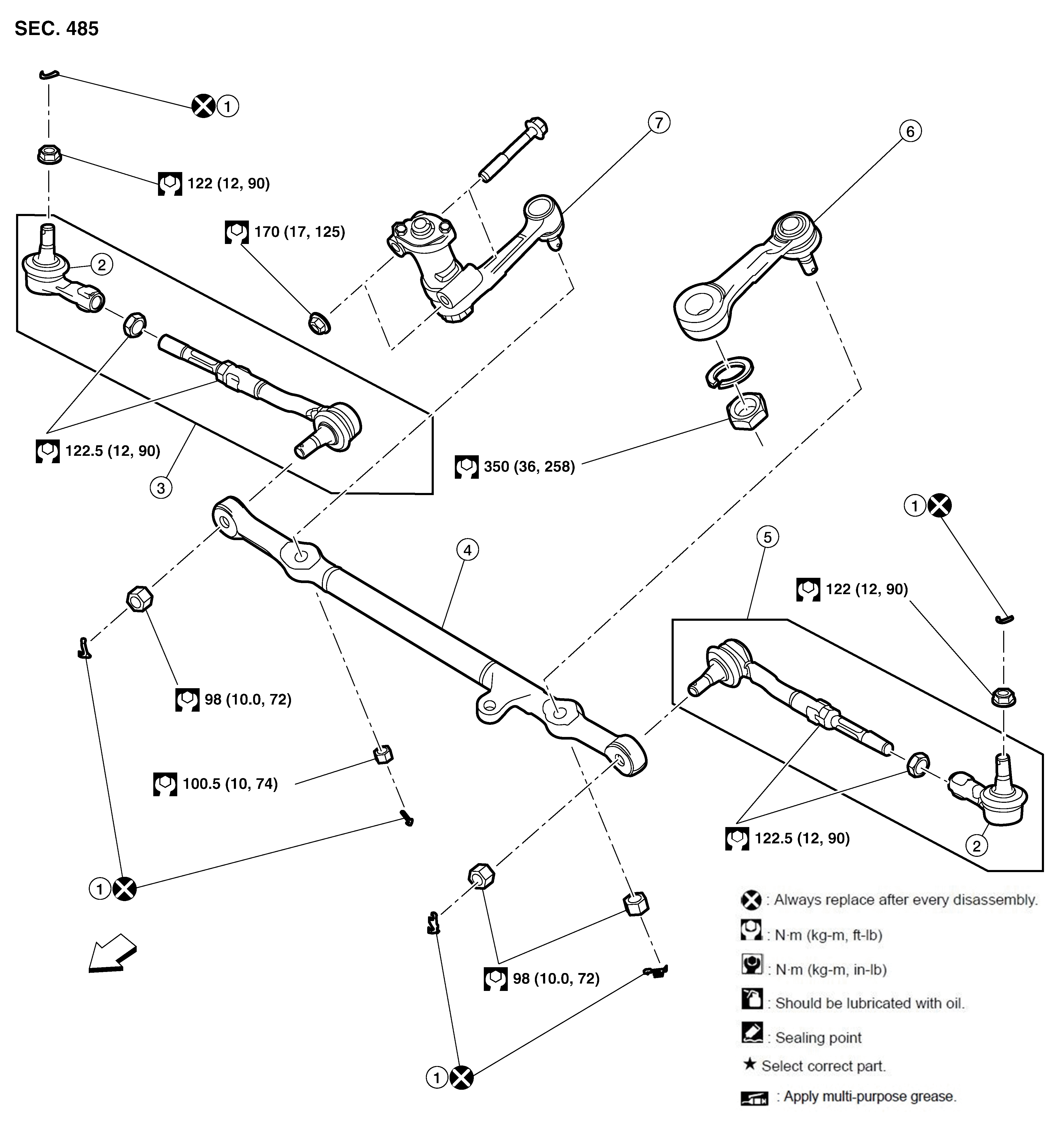

Fig 2: Inner And Outer Sockets Components With Torque Specifications - 4WD
GNSAWGIA0447Z-447Courtesy of NISSAN NORTH AMERICA, INC.

1.

Cotter pin

2.

Outer socket

3.

Inner/outer socket assembly (RH)

4.

Relay rod

5.

Inner/outer socket assembly (LH)

6.

Pitman arm

7.

Idler arm

SYMBOL

Front
