Home
>>
Nissan-Datsun
>>
2021
>>
Titan SL, RWD
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Steering System
>>
Removal And Installation
>>
Power Steering Oil Pump
>>
Exploded View
Exploded View

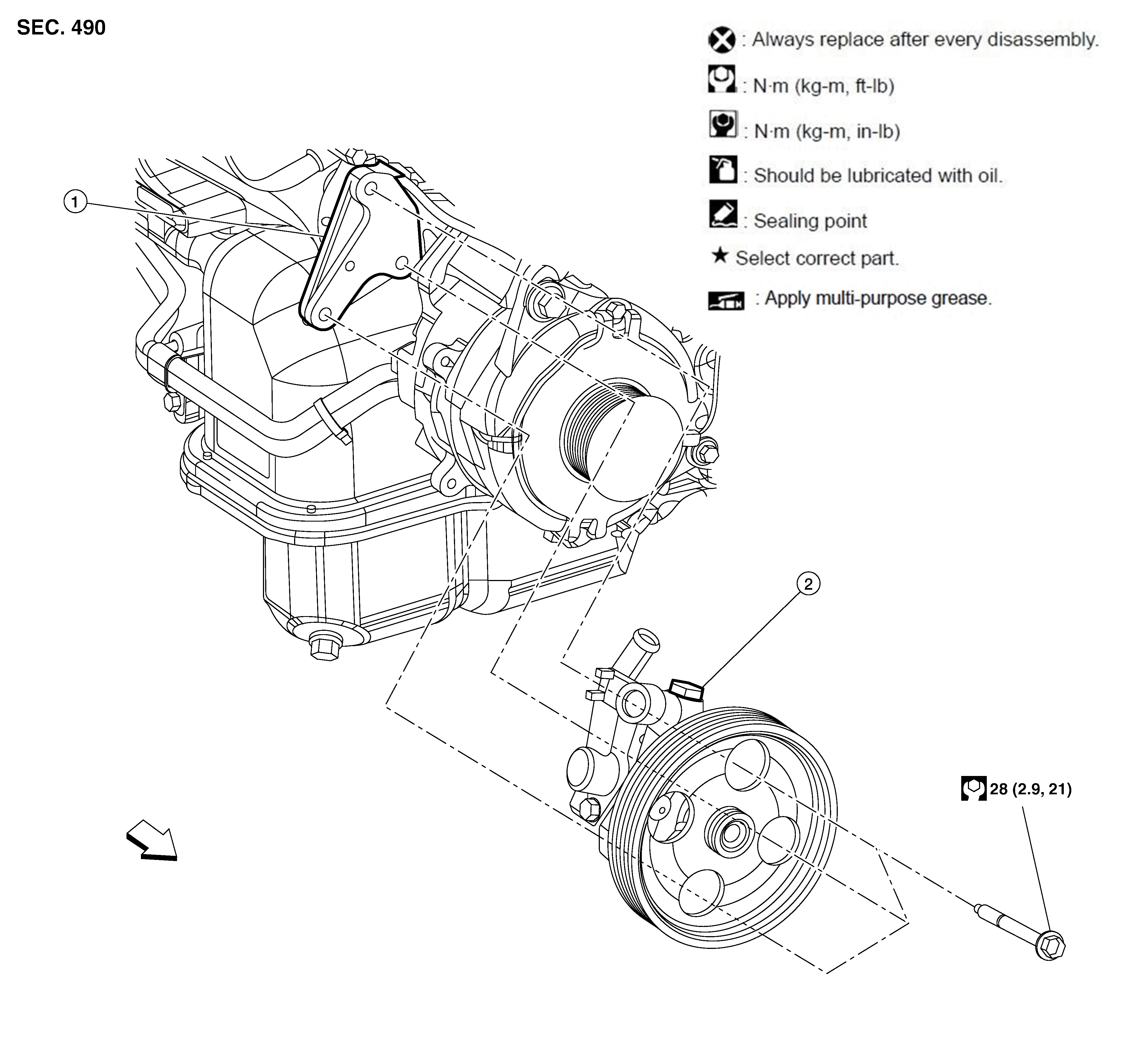

Fig 1: Power Steering Oil Pump Replacement Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Bracket
2.
Power steering oil pump
Front
Courtesy of NISSAN NORTH AMERICA, INC.
