Component Inspection

  1. CHECK POWER WINDOW RELAY
    1. Ignition switch OFF.
    2. Disconnect power window relay.
    3. Check continuity between power window relay terminals.

    Terminal

    Condition

    Continuity

    power window relay

    3

    5

    12 V direct current supply between terminals 1 and 2.

    Yes

    No current supply

    No

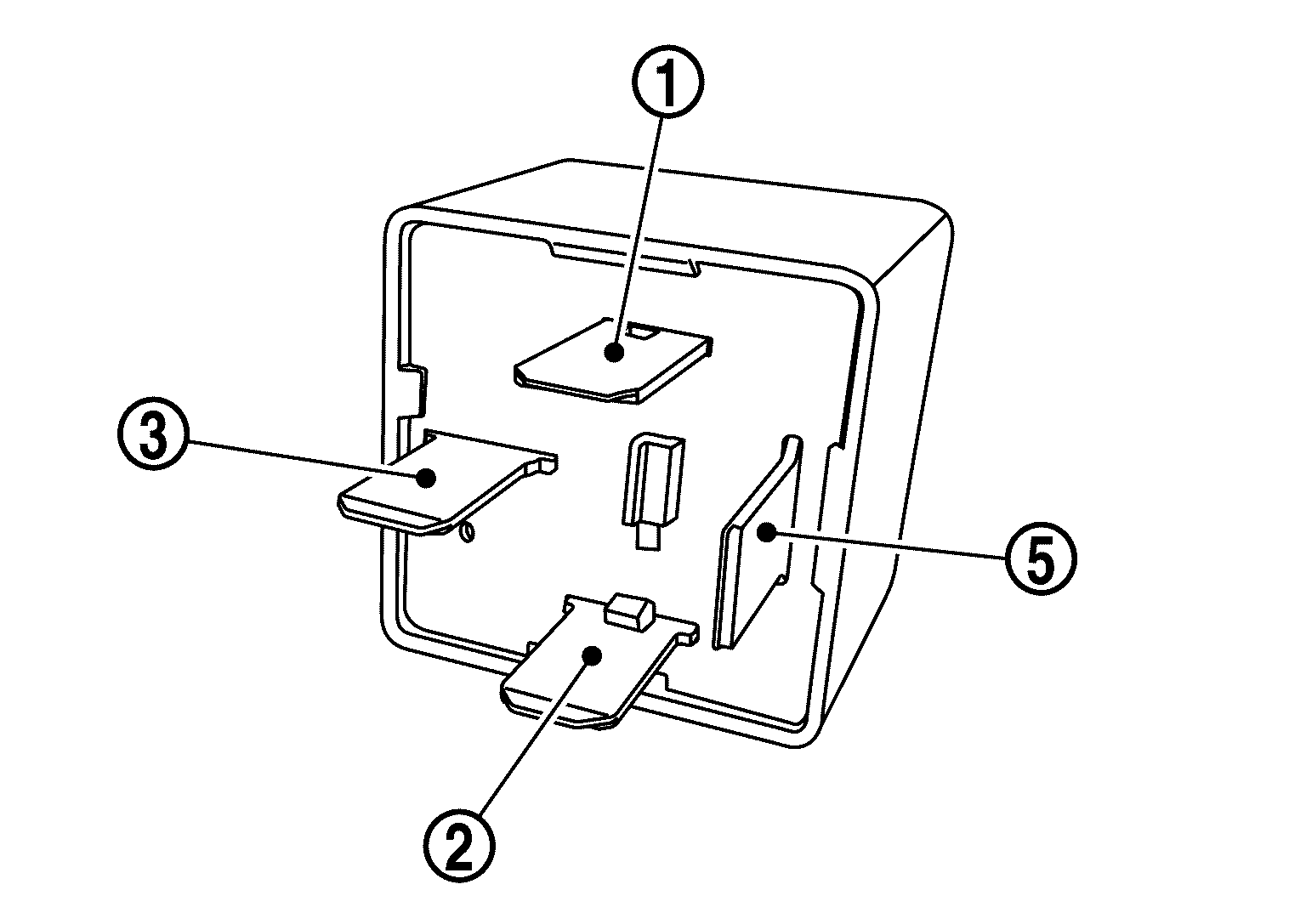

    GNSILL0260141-141Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES

    Inspection End.

    NO

    Replace power window relay.
