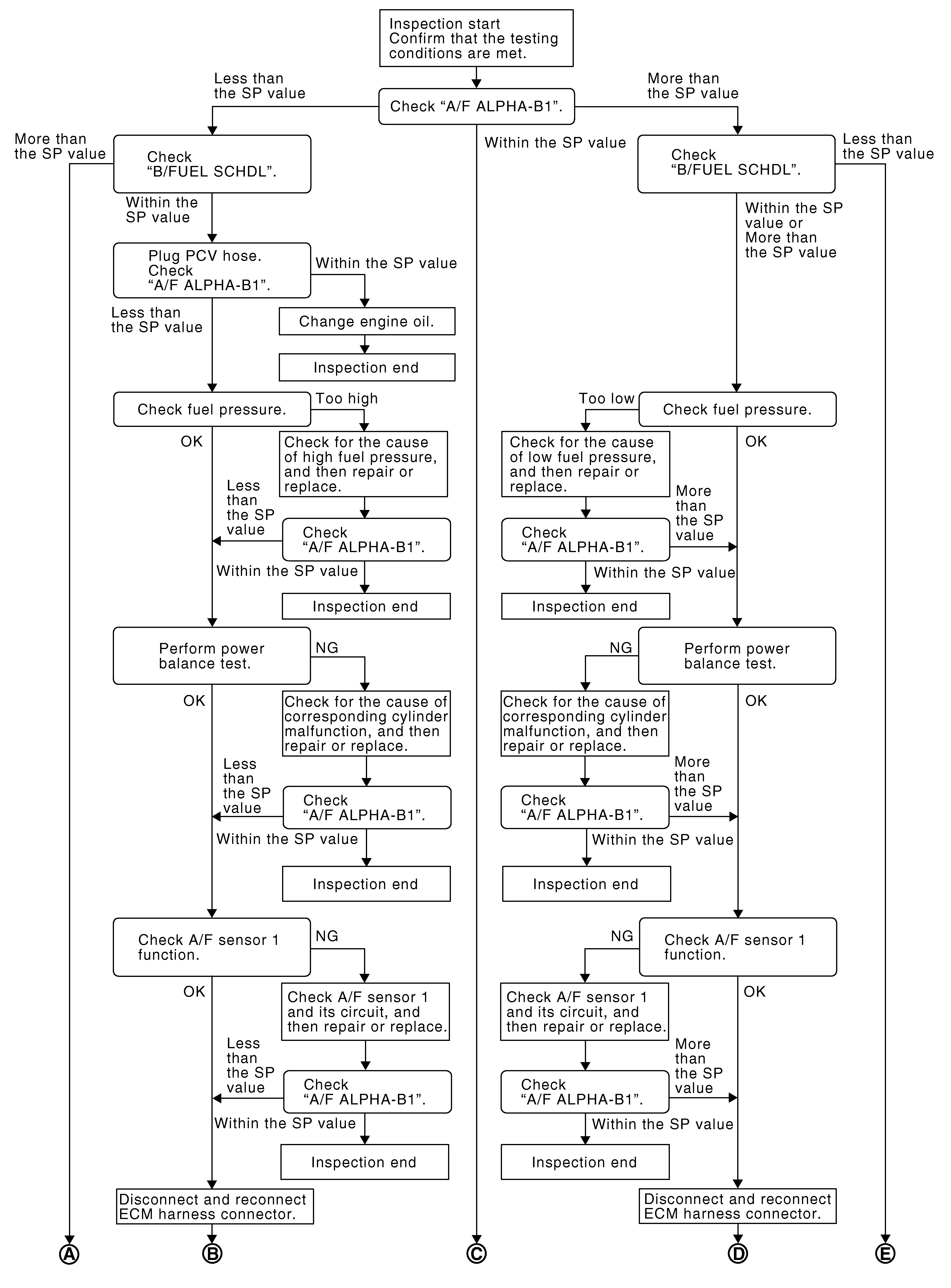

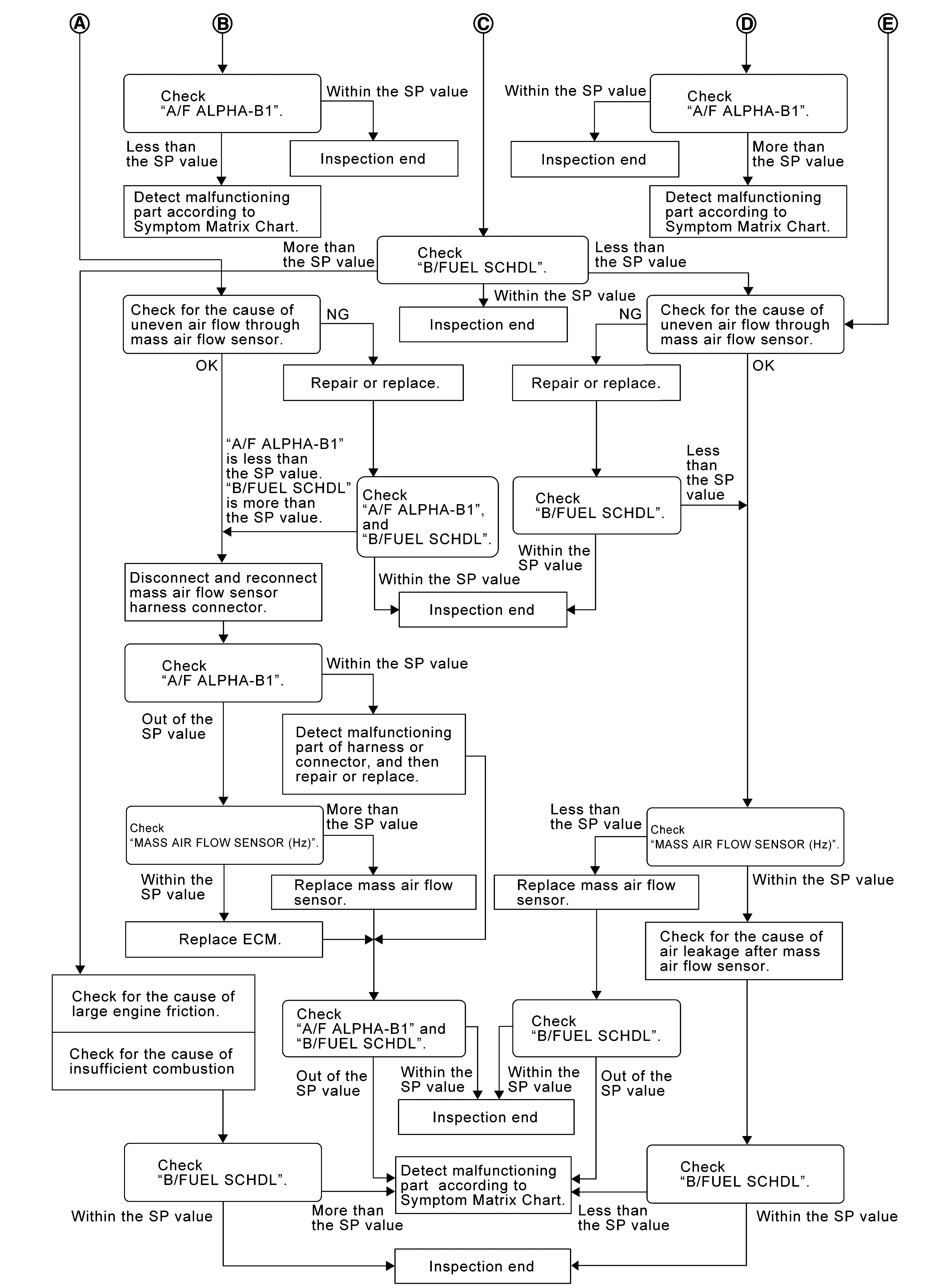

Overall Sequence

G04147137Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIA6802GB-802Courtesy of NISSAN NORTH AMERICA, INC.
