Home >> Nissan-Datsun >> 2021 >> Sentra S >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Basic Inspection >> Diagnosis And Repair Work Flow >> Work Flow (With 165-DSS-5000P) >> Overall Sequence

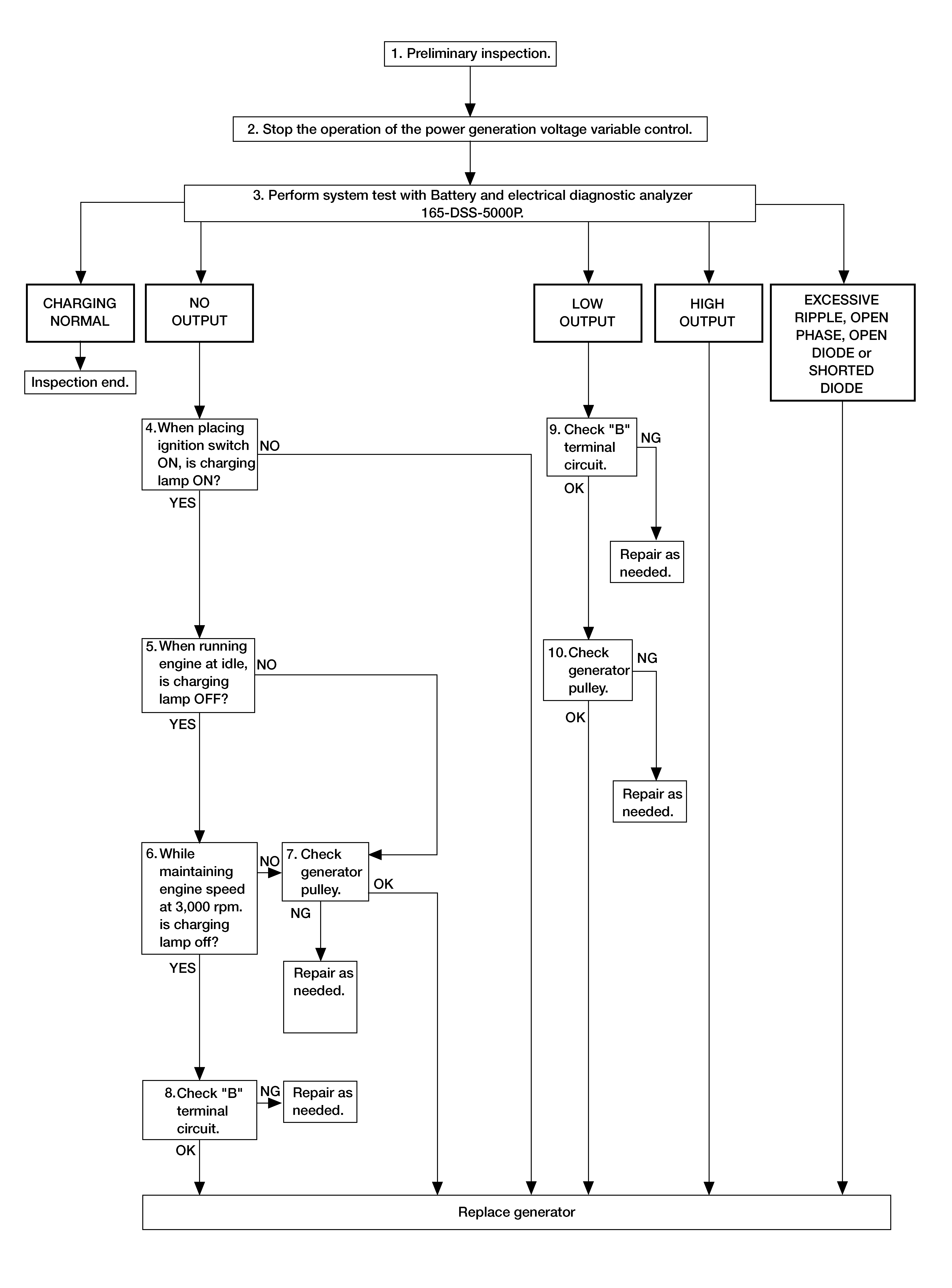

Overall Sequence

GNSAWMIA0212GB-212Courtesy of NISSAN NORTH AMERICA, INC.
