Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console (if equipped). Refer to Removal and Installation .
  2. Remove the cluster lid C finisher. Refer to Removal and Installation .
  3. Disconnect the push-button ignition switch electrical connector.

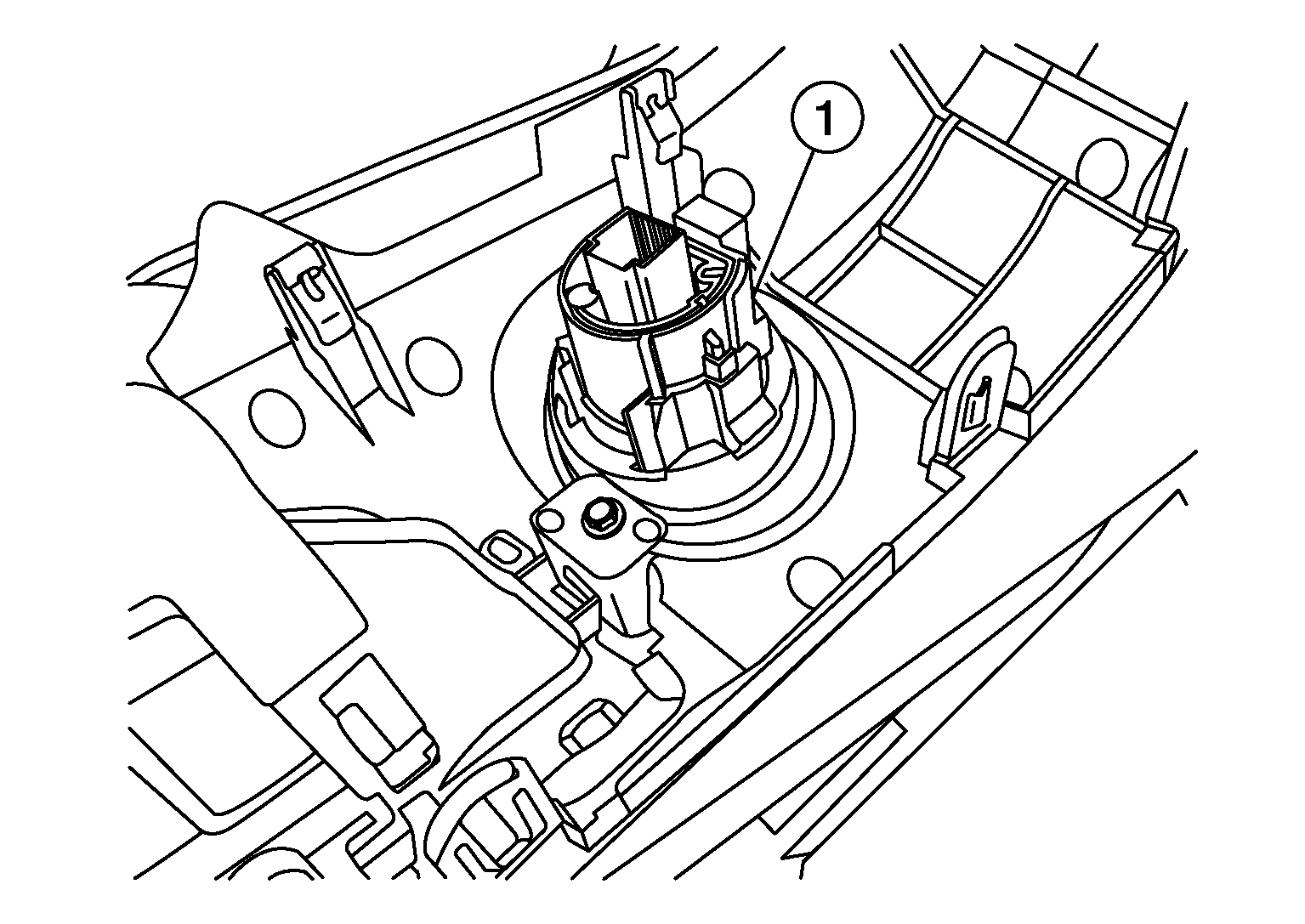

  4. Release the pawl on each side of the push-button ignition switch (1) and remove from the cluster lid C finisher.
    GNSALKIA4174Z-174Courtesy of NISSAN NORTH AMERICA, INC.

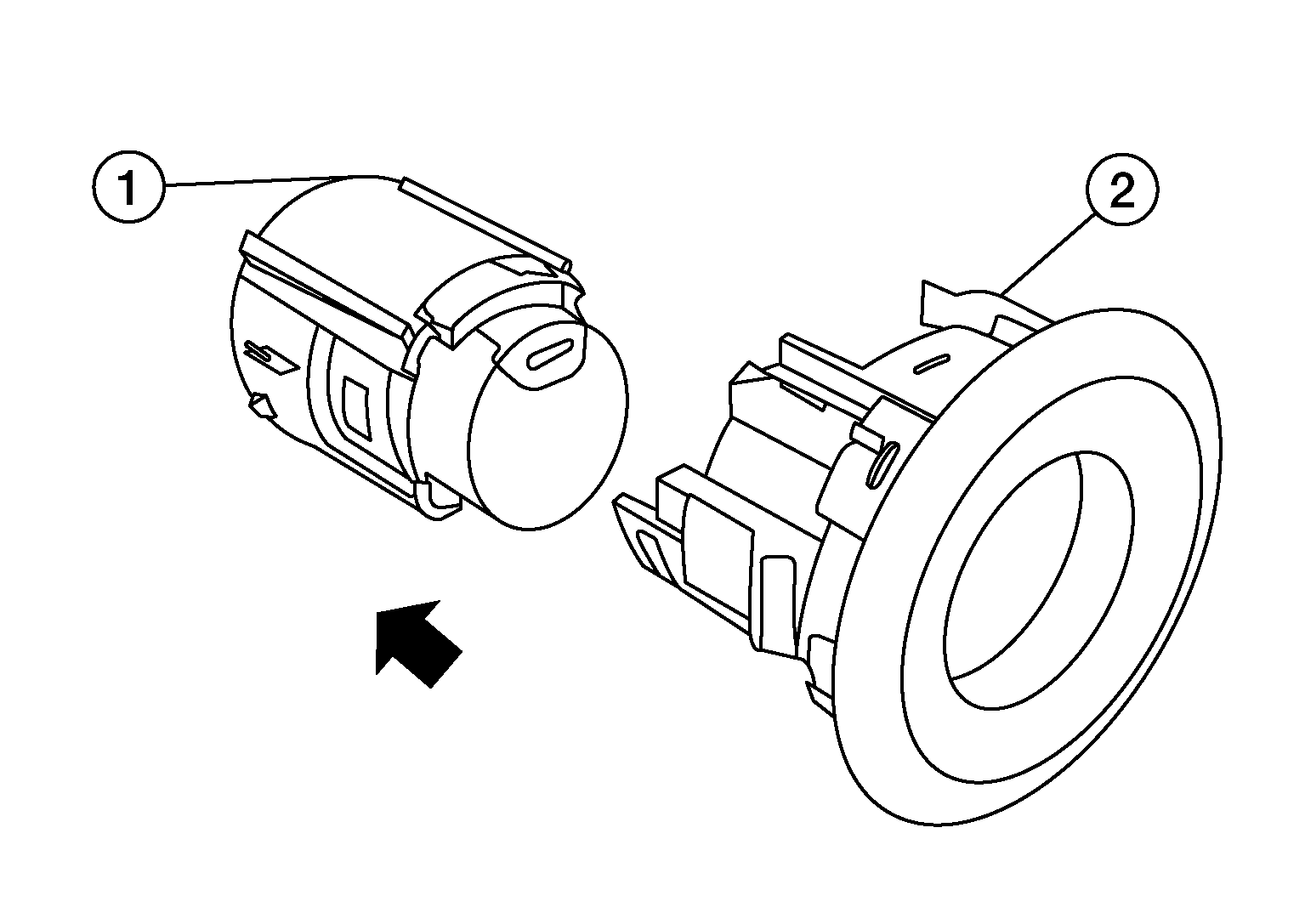

  5. Release the pawl on each side and remove the push-button ignition switch (1) from the NATS antenna amp (2).
    GNSALKIA4175Z-175Courtesy of NISSAN NORTH AMERICA, INC.
