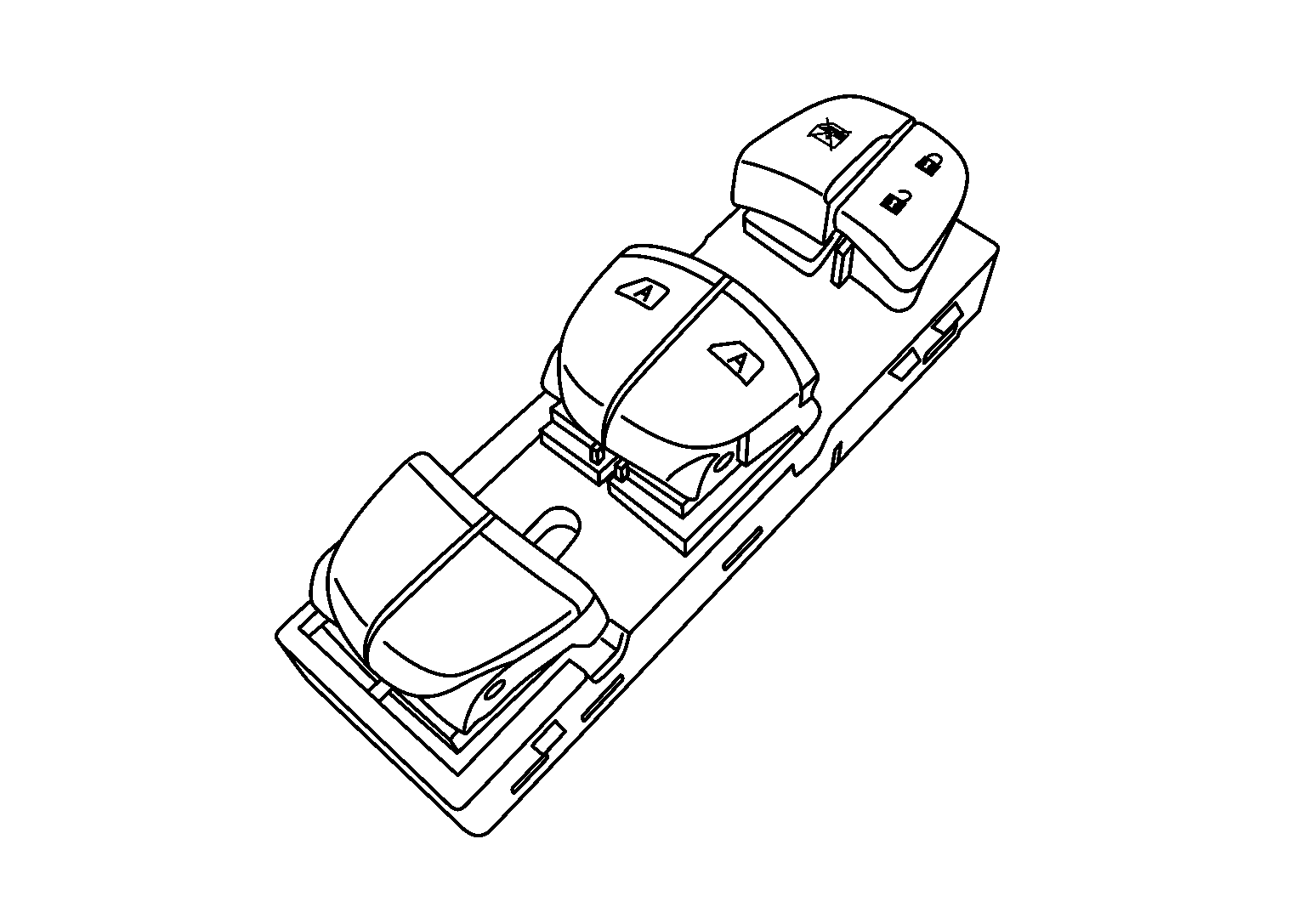

Main Power Window and Door Lock/Unlock Switch

Main power window and door lock/unlock switch controls all power windows.

Courtesy of NISSAN NORTH AMERICA, INC.
Main power window and door lock/unlock switch integrates UP/DOWN switch, power window lock switch, and door lock/unlock switch.
Main power window and door lock/unlock switch controls power window lock function and AUTO UP/DOWN function.
Receives encoder pulse signal and then controls anti-pinch system.
