Home >> Nissan-Datsun >> 2021 >> Kicks SV >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Wiring Diagram >> Power Window System >> Wiring Diagram

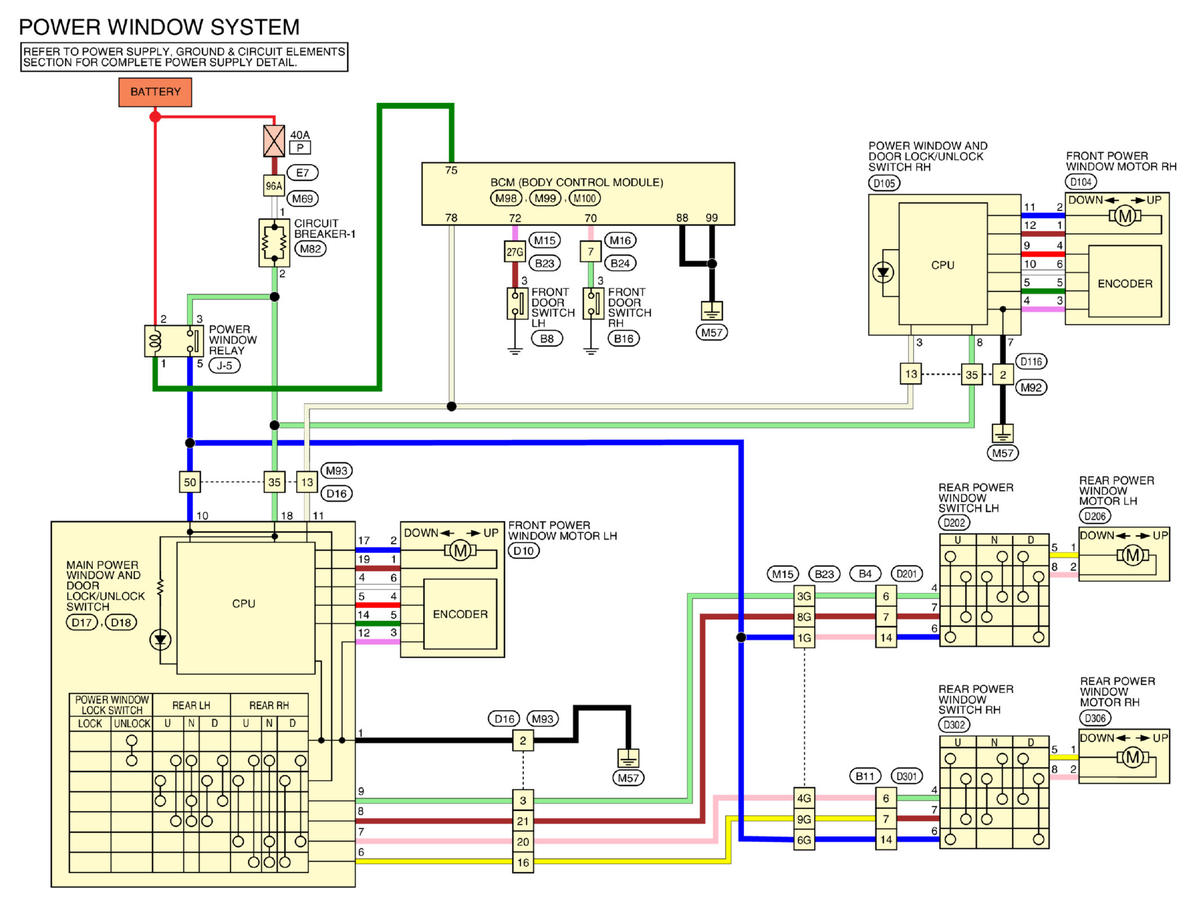

Power Window System: Wiring Diagram

GNS2125C014801-801

Courtesy of EWD
