Tilt Mechanism Operating Range

Unit: mm (in)

Courtesy of NISSAN NORTH AMERICA, INC.

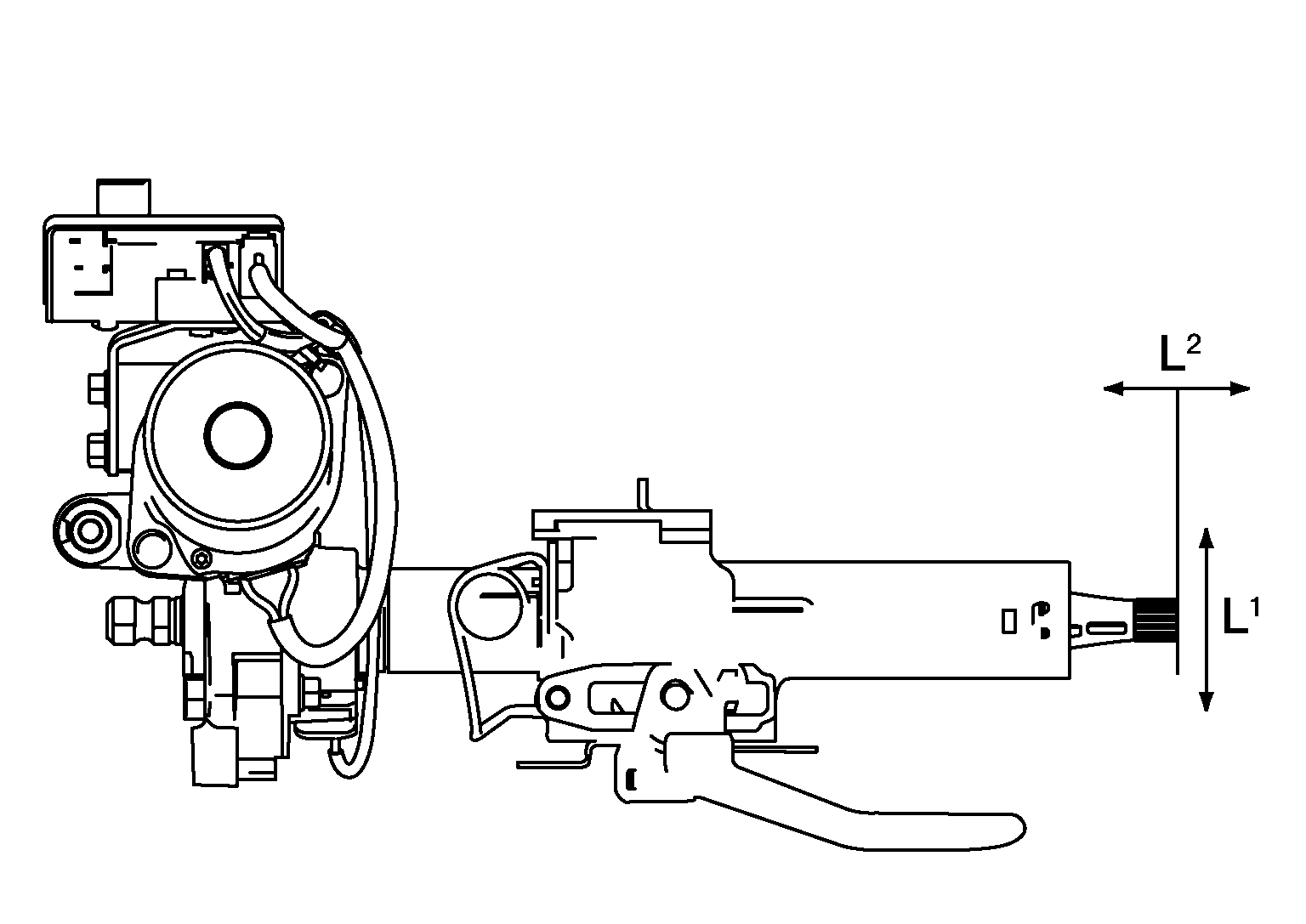

Tilt operating range (L ¹ )	40 (1.57)
Telescopic operating range (L ² )	40 (1.57)
