Removal and Installation: Removal

CAUTION: If replacing chassis control module (with built in steering angle sensor), perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE (WITH BUILT IN STEERING ANGLE SENSOR)". Refer to Description .

NOTE: If chassis control module (with built in steering angle sensor) is replaced, user registration information is erased, and all setting items for Nissan InTuition related parts are erased.

Remove spiral cable. Refer to Removal and Installation .
Disconnect harness connector from chassis control module (with built in steering angle sensor).

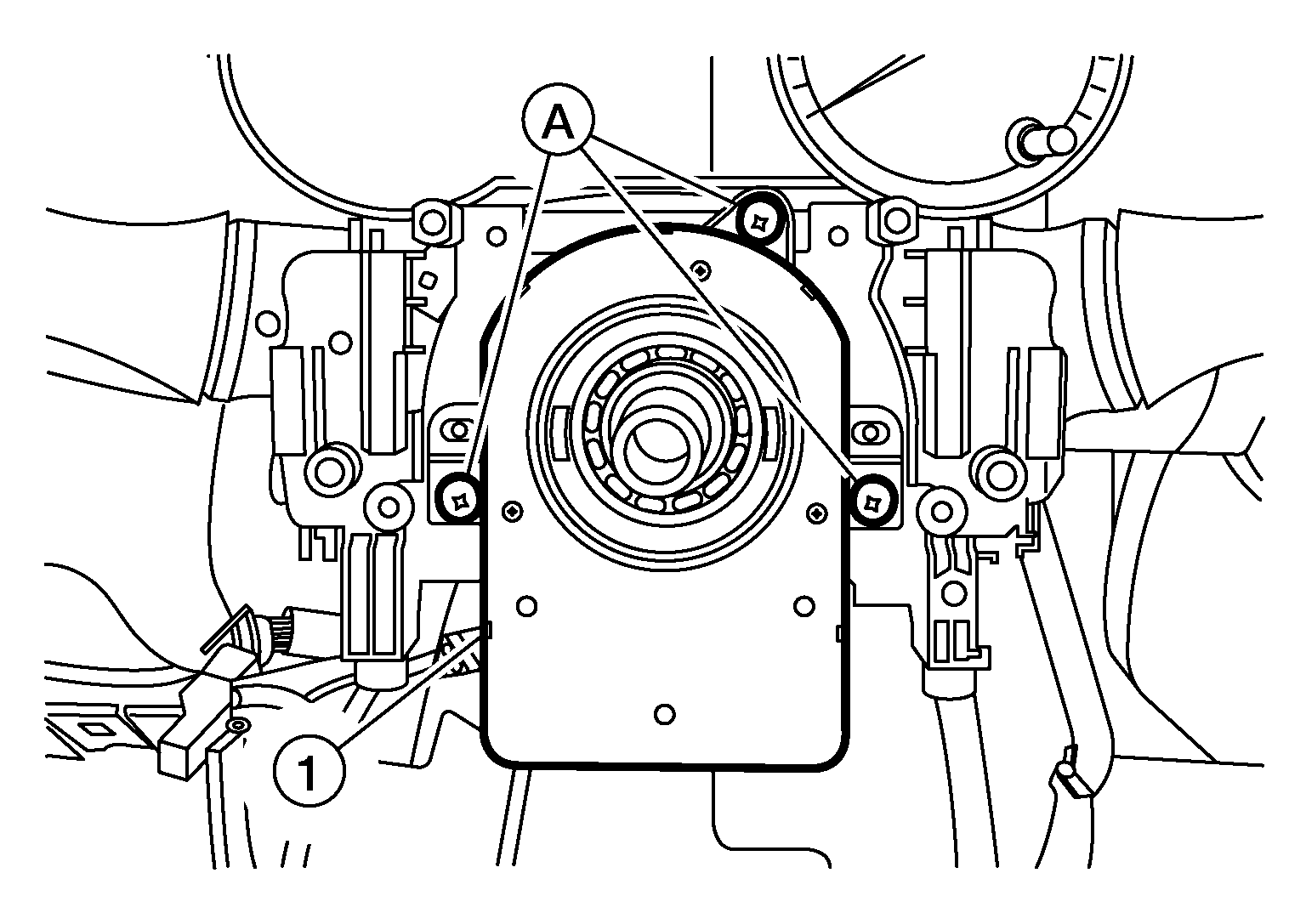

Remove screws (A) and remove chassis control module (with built in steering angle sensor) (1).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not drop chassis control module (with built in steering angle sensor).
