Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

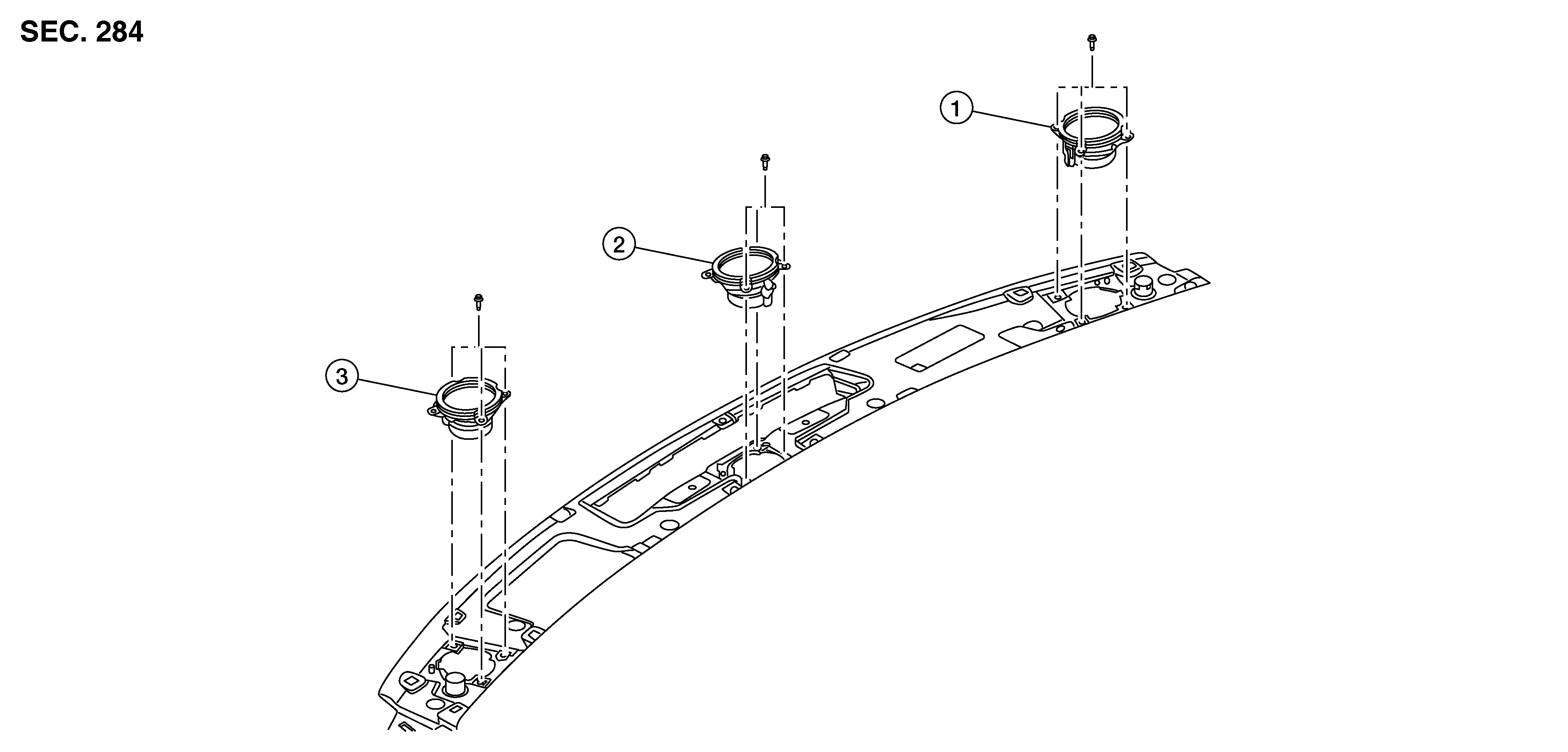

GNSALNIA0079Z-079Courtesy of NISSAN NORTH AMERICA, INC.

1.

Instrument panel speaker (RH)

2.

Center speaker

3.

Instrument panel speaker (LH)
