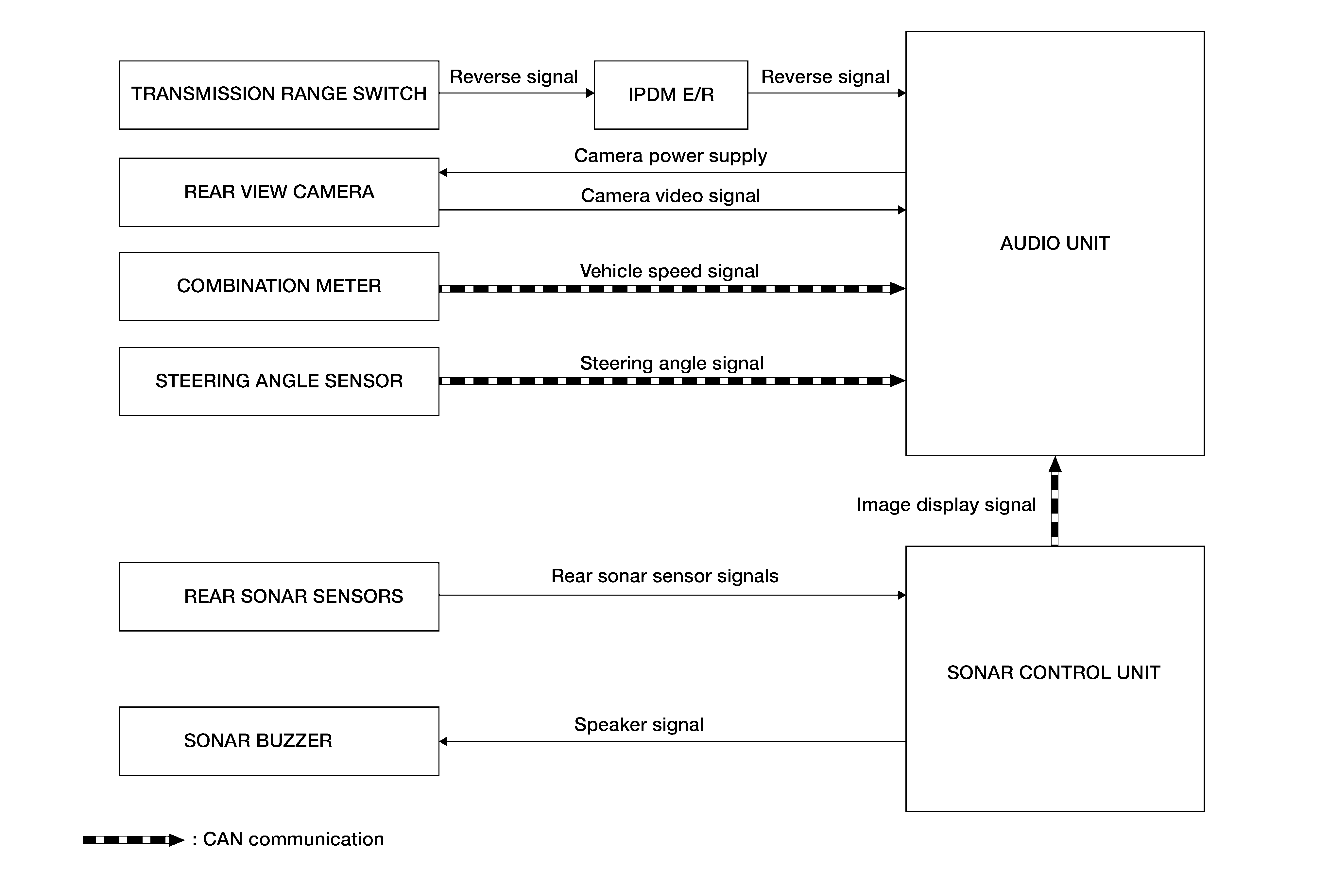

System Diagram

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
GNSAWNIA0264GB-264Courtesy of NISSAN NORTH AMERICA, INC.
