LANE CAMERA UNIT : Exploded View

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

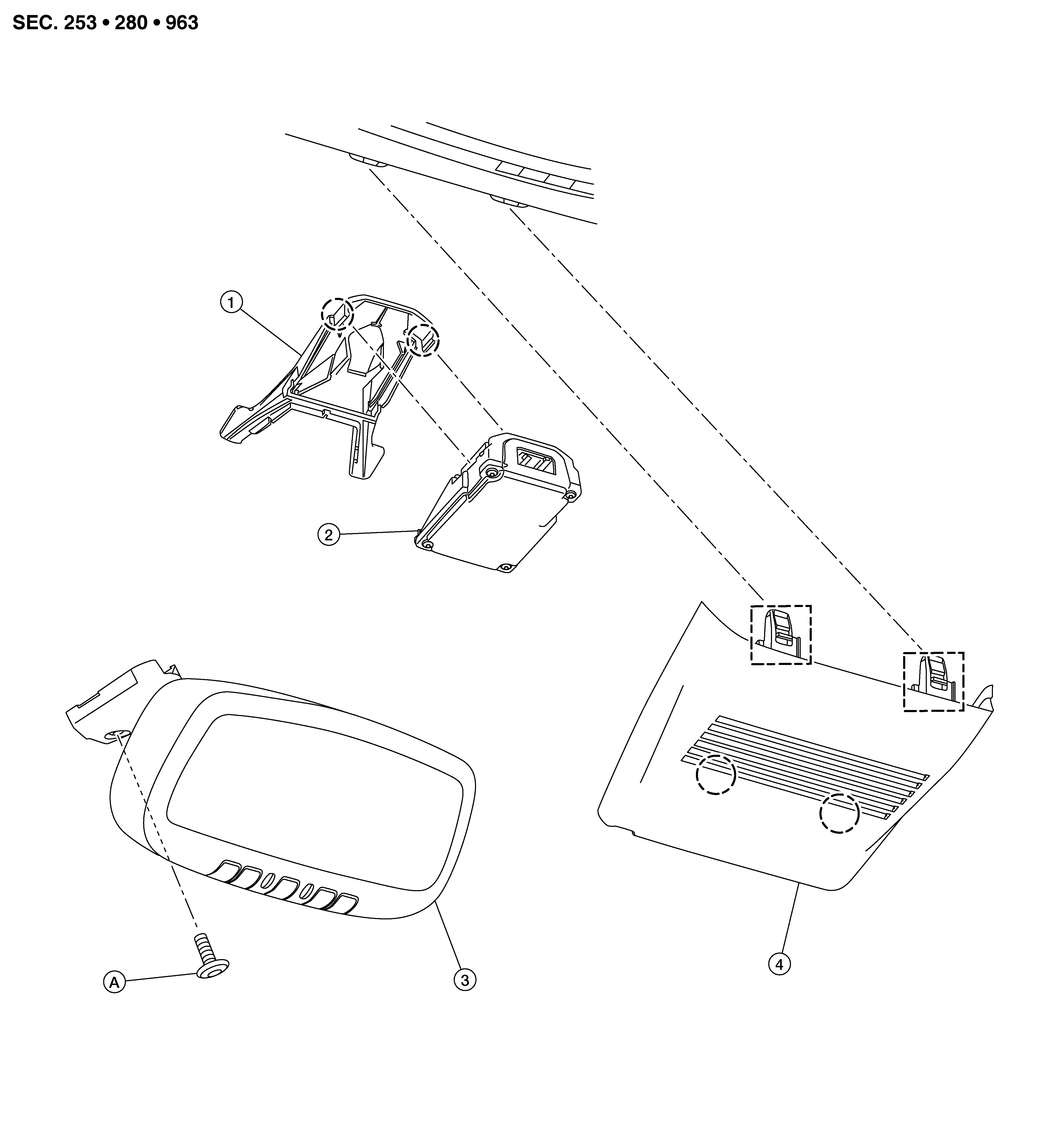

GNSAWOIA0063Z-063Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lane camera bracket

2.

Lane camera unit

3.

Inside mirror

4.

Inside mirror finisher

A.

Screw

SYMBOL

Metal clip

SYMBOL

Pawl
