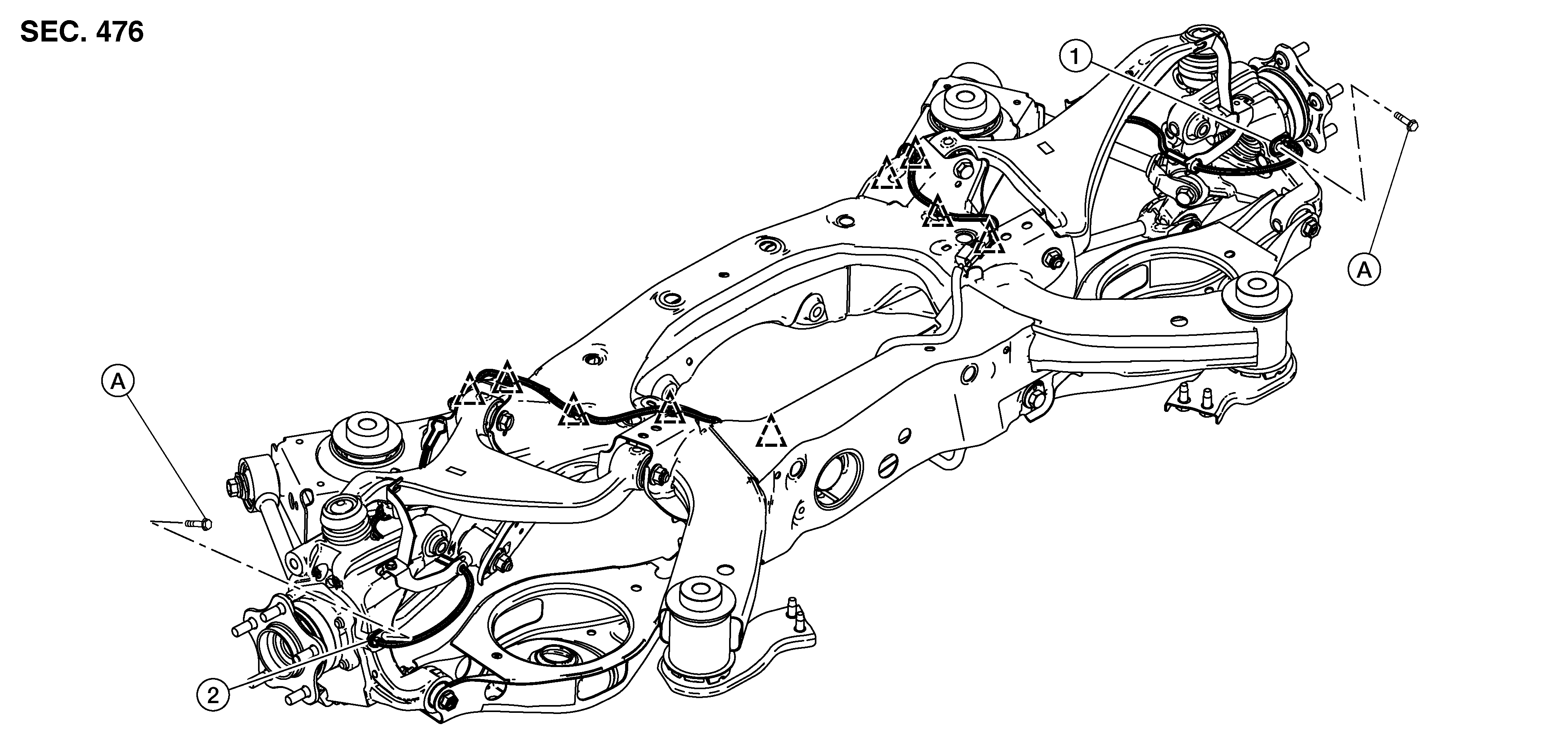

REAR WHEEL SENSOR : Exploded View

GNSAWFIA0192Z-192Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear wheel sensor (RH)

2.

Rear wheel sensor (LH)

A.

Refer to REAR WHEEL SENSOR : Removal & Installation .

SYMBOL

Clip
