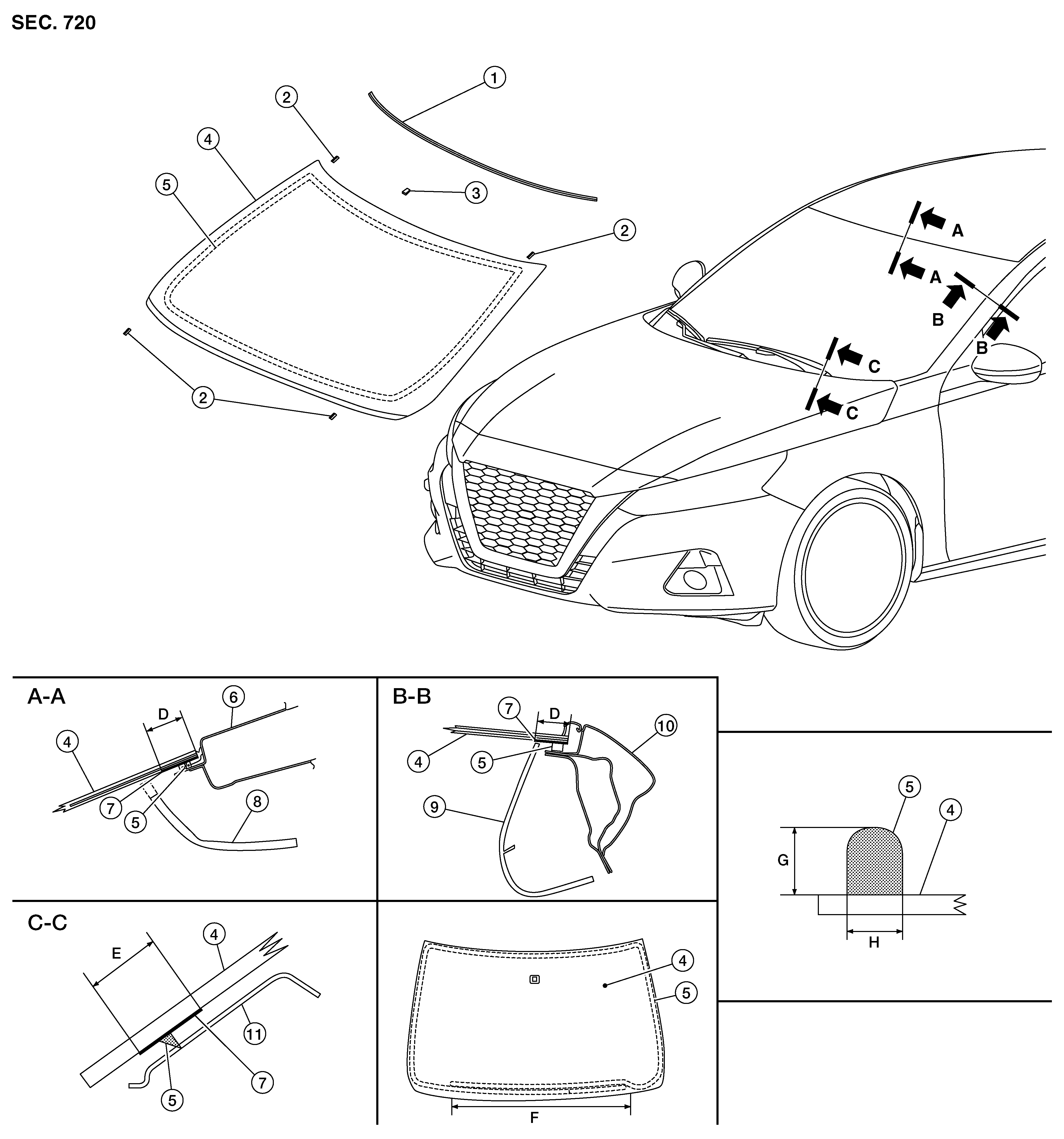

WINDSHIELD GLASS : Exploded View

1.

Windshield glass molding

2.

Spacer

3.

Mirror base

4.

Windshield glass

5.

Adhesive

6.

Metal roof

7.

Glass primer

8.

Headlining

9.

Front pillar finisher

10.

Body side outer

11.

Cowl top

D.

16 mm (0.63 in)

E.

25 mm (0.98 in)

F.

1190 mm (46.9 in) overlap

G.

12 + 2, - 0 mm (0.47 + 0.08, - 0 in)

H.

7 + 2, - 0 mm (0.28 + 0.08, - 0 in)
