Work Procedure - With Pro Pilot: Description

Always perform the Steering Torque Calibration after replacing the ADAS control unit or any of the upper steering components outlined in the figure below.

Refer to Work Procedure .

NOTE: The system does not operate normally unless the Steering Torque Calibration is performed. Always perform it.

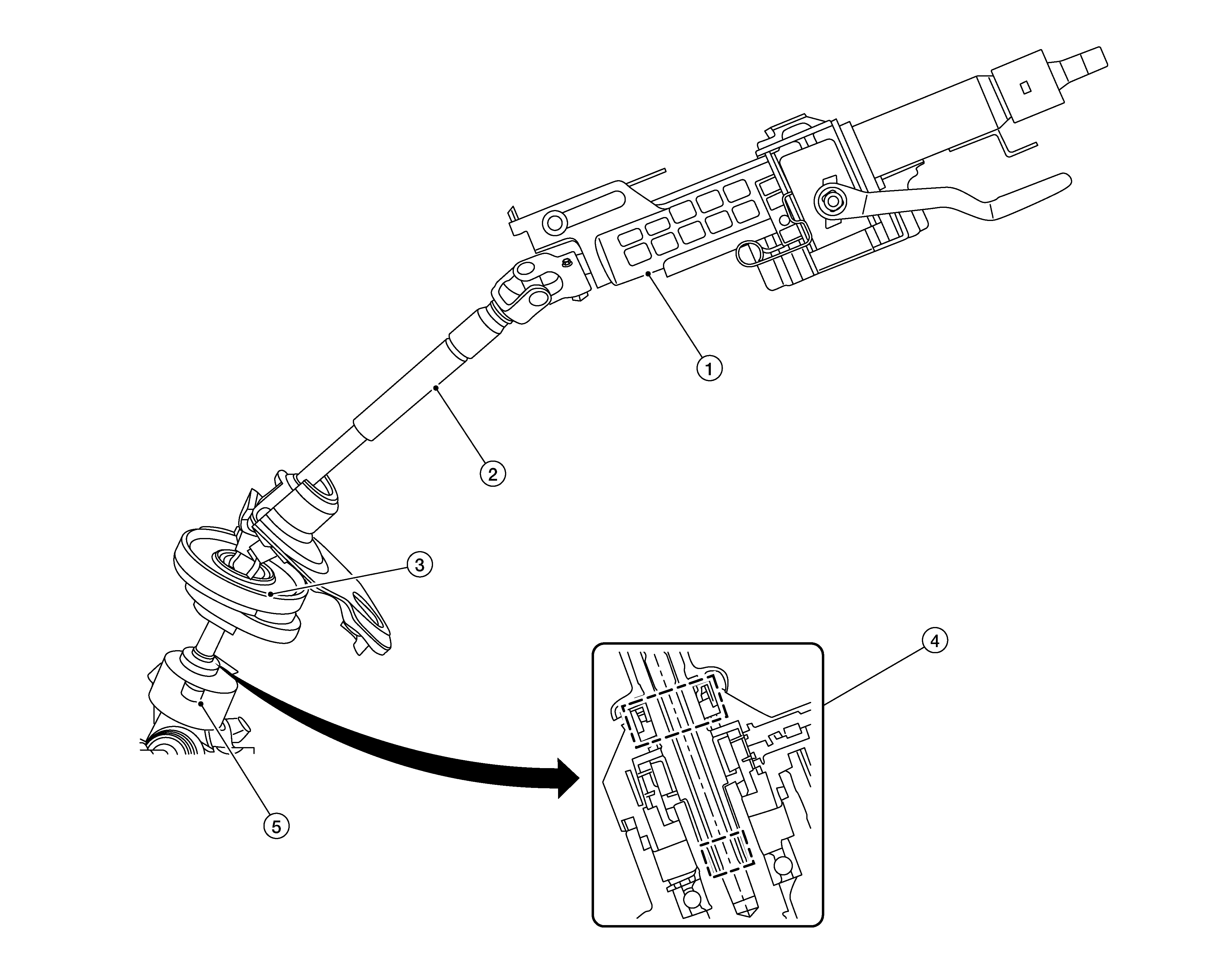

GNSALOIA0271Z-271Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering Column

2.

Intermediate Shaft

3.

Intermediate Shaft Seal

4.

Gear Shaft Seal

5.

Torque Sensor
