Removal & Installation: Removal

  1. Remove the center exhaust tube. Refer to Exploded View .
  2. Disconnect harness connector from EVAP control system pressure sensor.

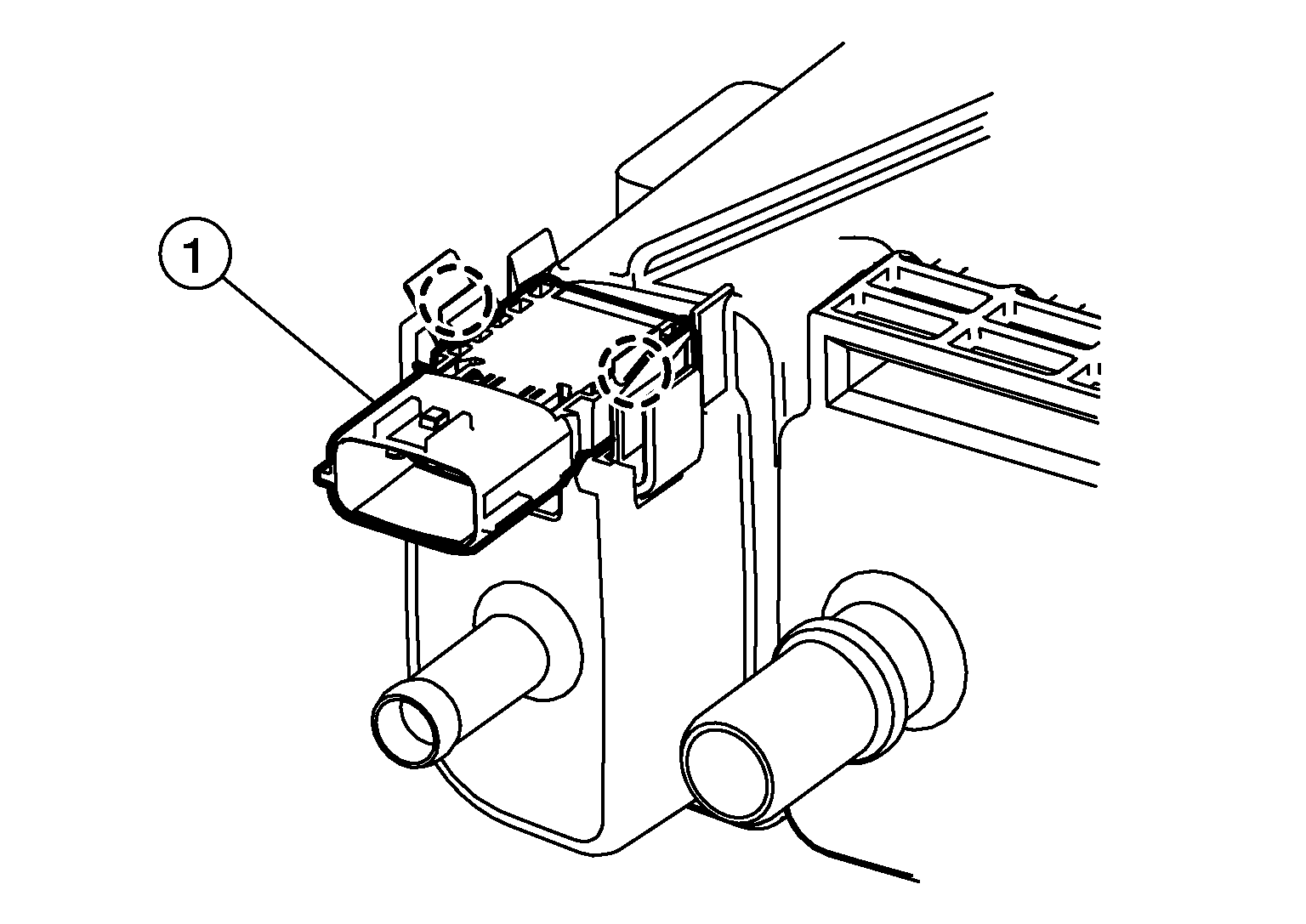

  3. Release pawls and remove EVAP control system pressure sensor (1).
    GNSALBIA0456Z-456Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse O-ring when installing new EVAP control system pressure sensor. The EVAP control system pressure sensor and O-ring are serviced as an assembly.

    SYMBOL

    : Pawl
