Steering System (Service Information)
>>
Unit Removal And Installation
>>
Steering Gear And Linkage
>>
Exploded View
Exploded View

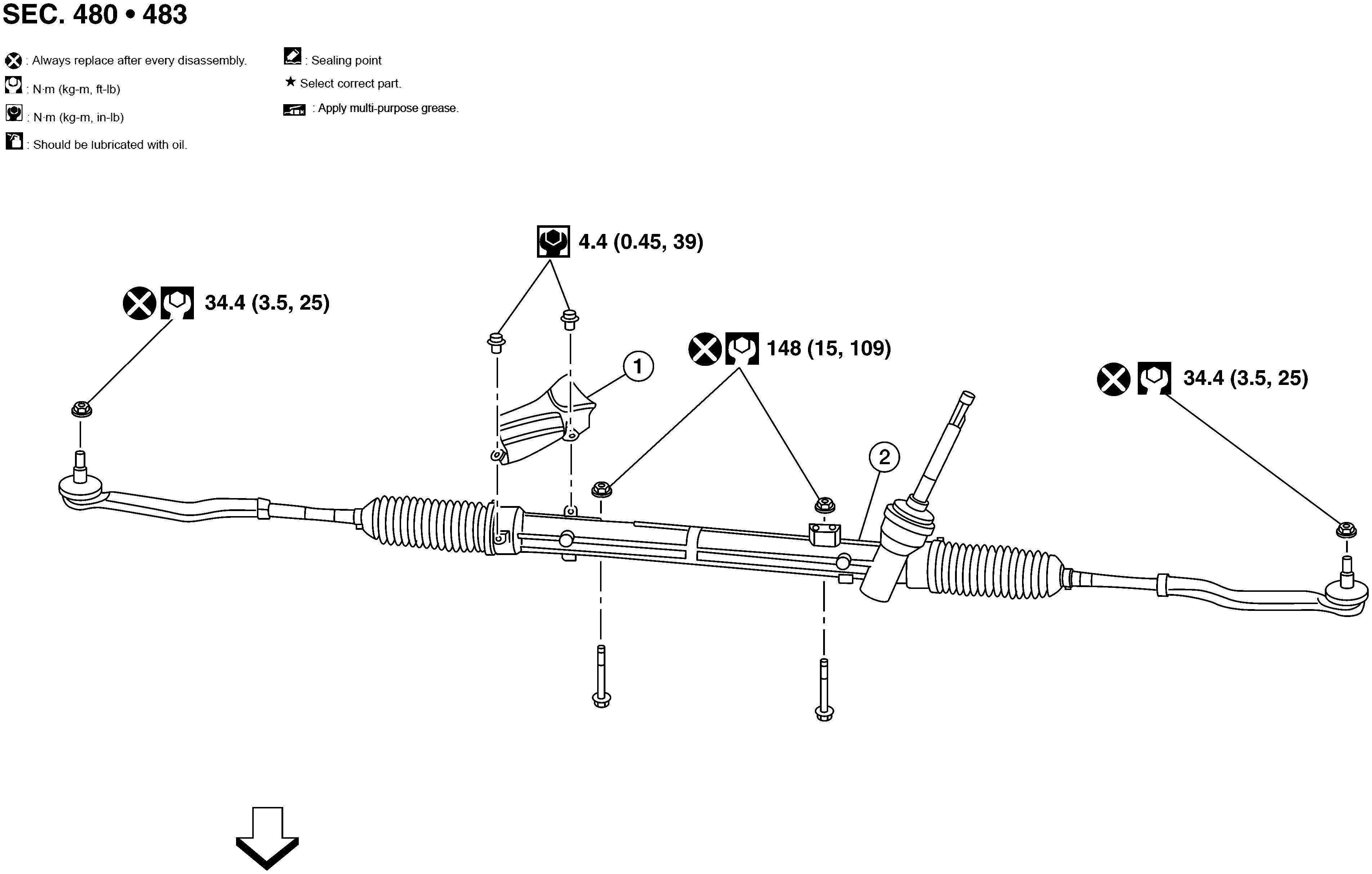

Fig 1: Steering Gear And Linkage Unit Removal And Installation With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Heat insulator
2.
Steering gear
Front
Courtesy of NISSAN NORTH AMERICA, INC.
