Exploded View

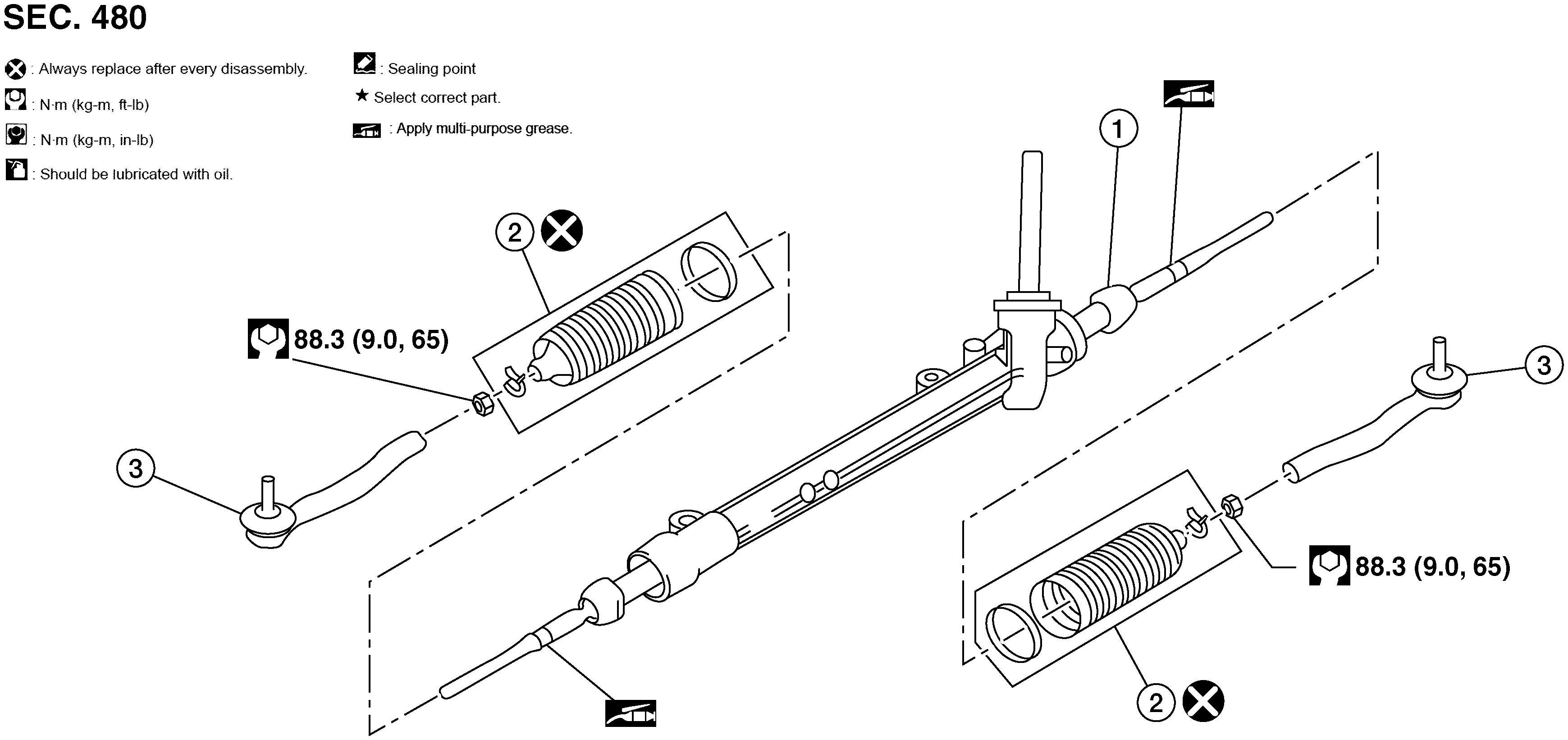

Fig 1: Steering Gear Unit Disassembly And Assembly With Torque Specification

GNSAWGIA0487Z-487

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear

2.

Boot

3.

Outer socket
