Push-Button Ignition Switch
>>

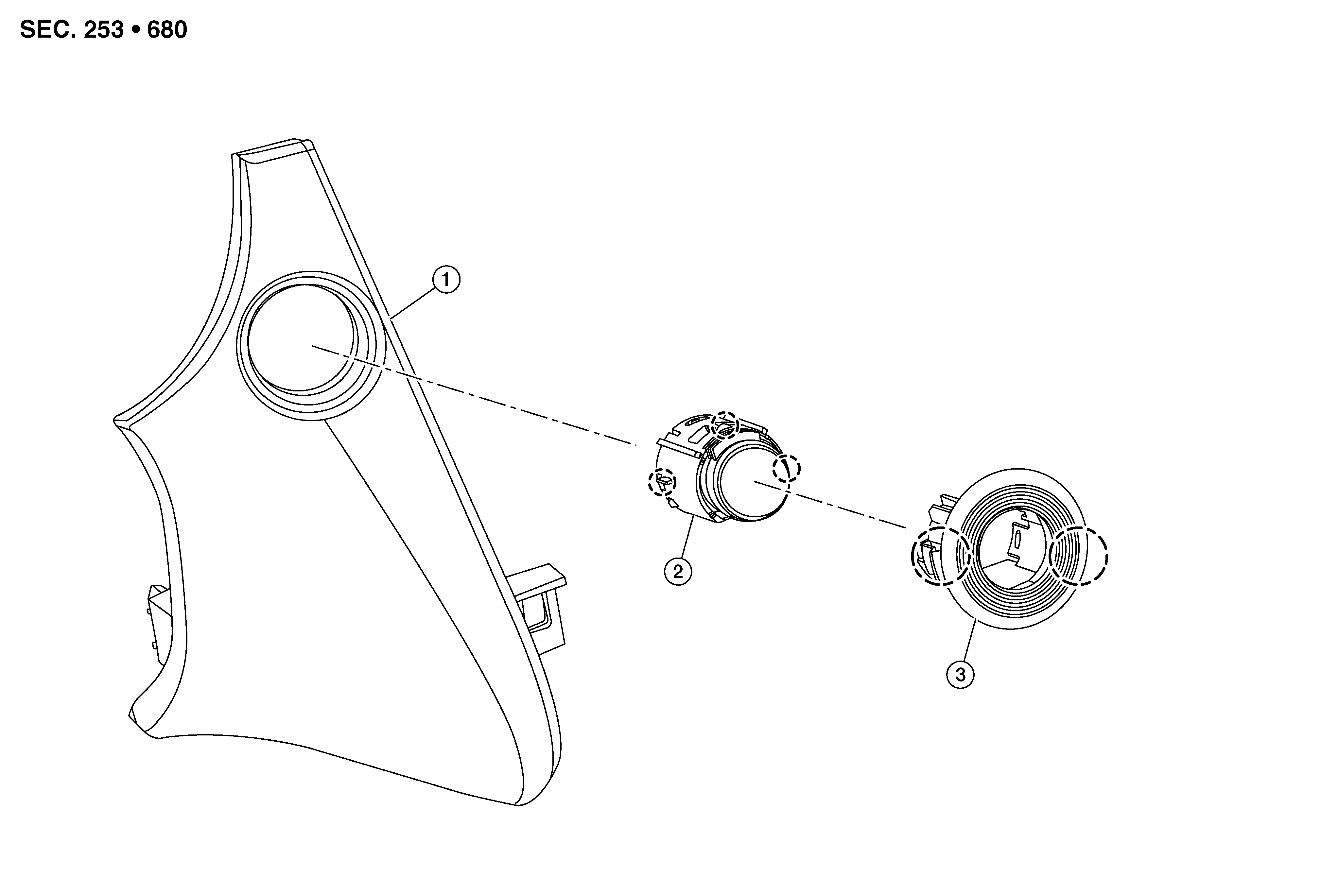

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Instrument finisher B
2.
Push button ignition switch
3.
NATS antenna amp.
Pawl
