Removal And Installation
>>
Steering Angle Sensor
>>

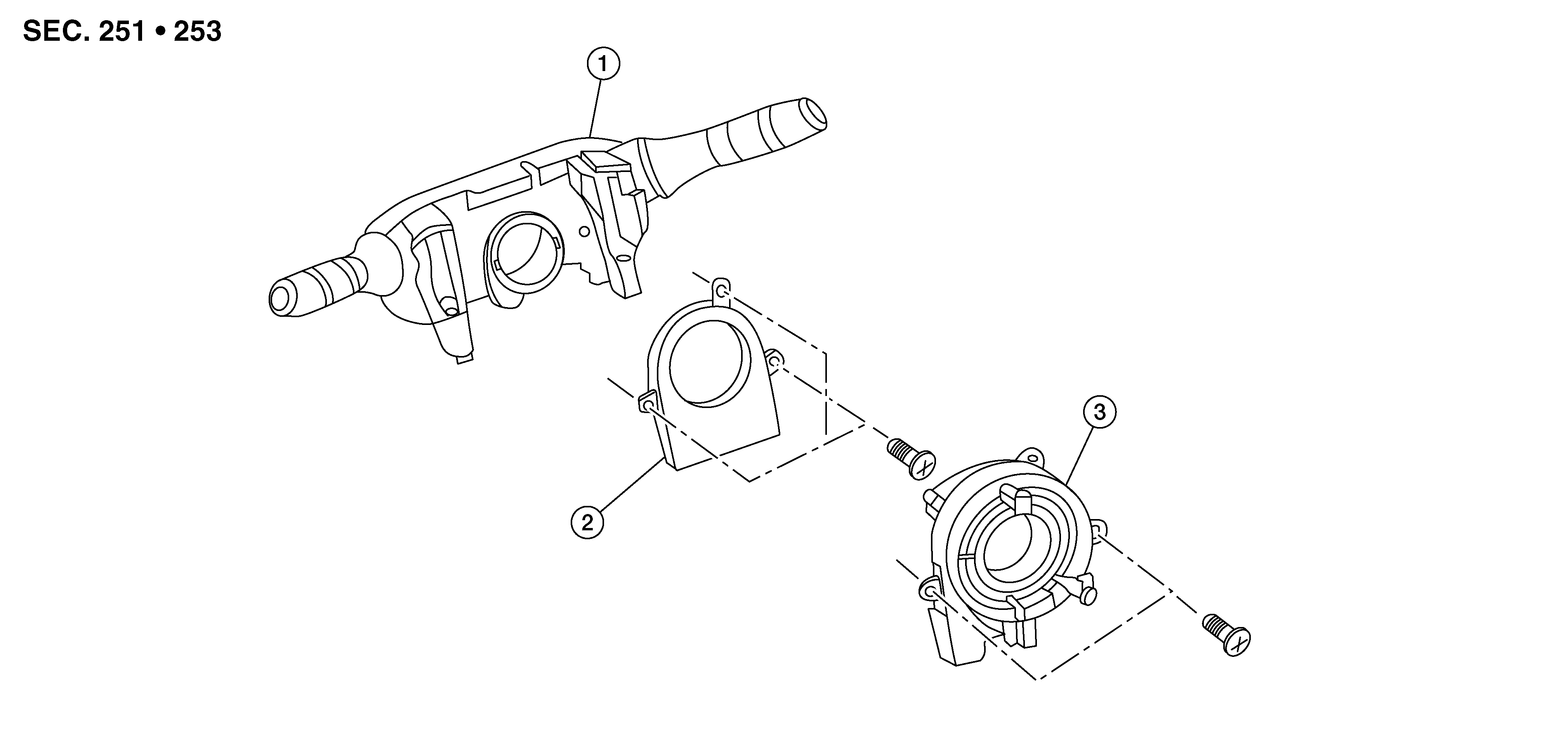

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Combination switch
2.
Steering angle sensor
3.
Spiral cable
Courtesy of NISSAN NORTH AMERICA, INC.
