Exploded View

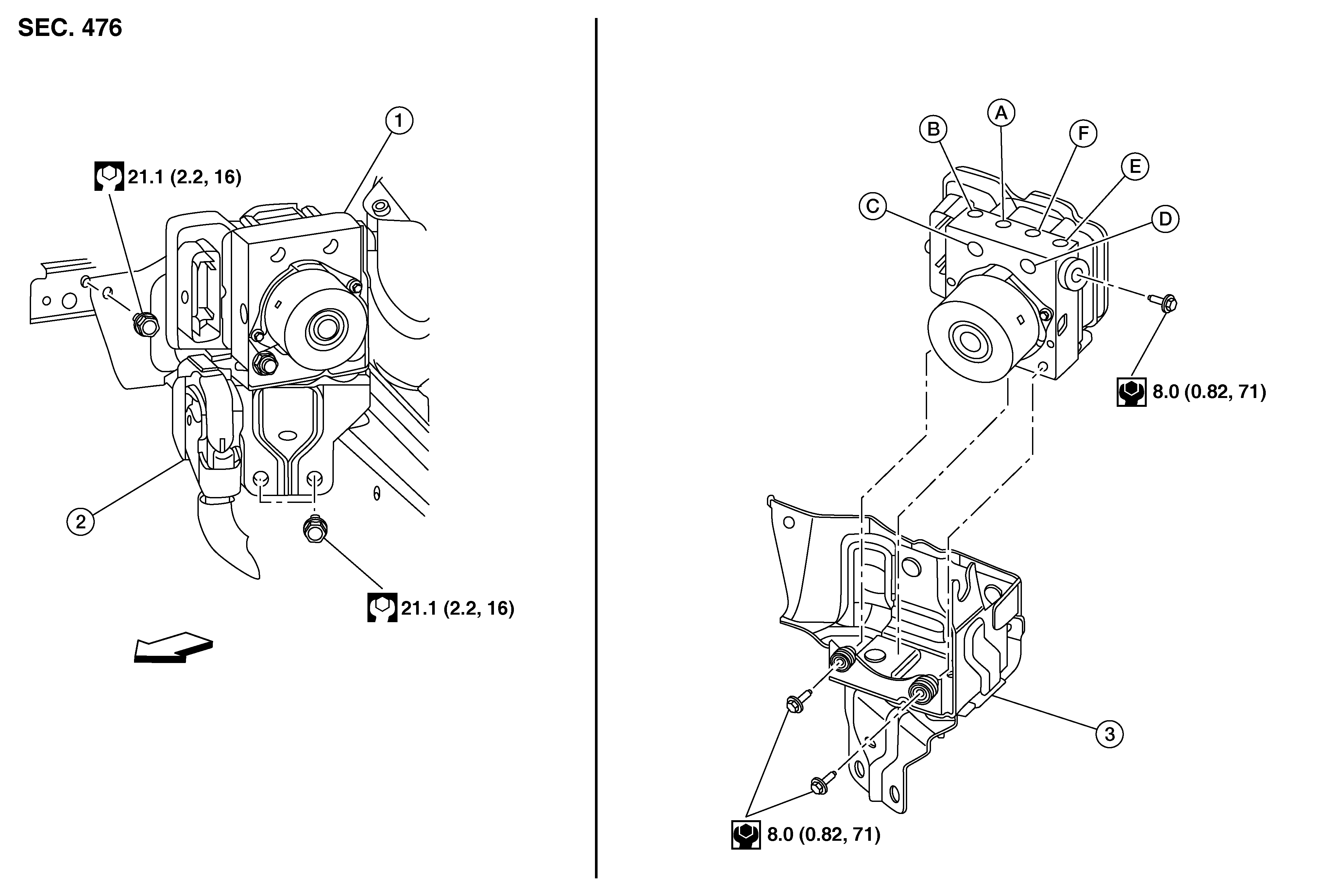

Fig 1: ABS Actuator And Electric Unit (Control Unit) Components With Torque Specification (Japan Production)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Connector	3.	Bracket
A.	To front brake caliper (LH). Refer to Exploded View .	B.	To rear brake caliper (RH). Refer to Exploded View .	C.	From master cylinder secondary side. Refer to Exploded View .
D.	From master cylinder primary side. Refer to Exploded View .	E.	To rear brake caliper (LH). Refer to Exploded View .	F.	To front brake caliper (RH). Refer to Exploded View .
	Front

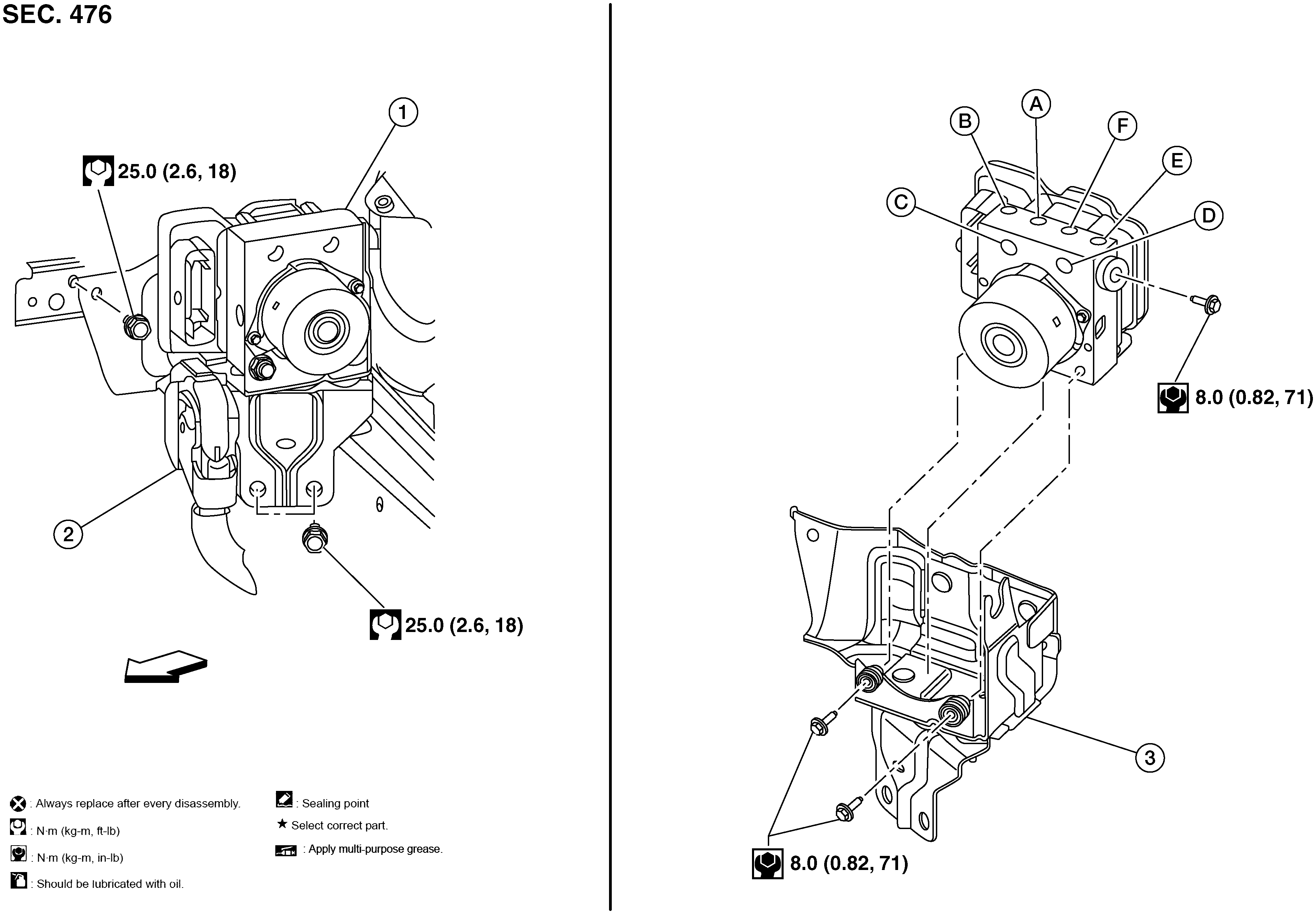

Fig 2: ABS Actuator And Electric Unit (Control Unit) Components With Torque Specification (Except Japan Production)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Connector	3.	Bracket
A.	To front brake caliper (LH). Refer to Exploded View .	B.	To rear brake caliper (RH). Refer to Exploded View .	C.	From master cylinder secondary side. Refer to Exploded View .
D.	From master cylinder primary side. Refer to Exploded View .	E.	To rear brake caliper (LH). Refer to Exploded View .	F.	To front brake caliper (RH). Refer to Exploded View .
	Front
