Removal and Installation: Removal

  1. Remove the front door pull handle bracket (LH). Refer to Exploded View .

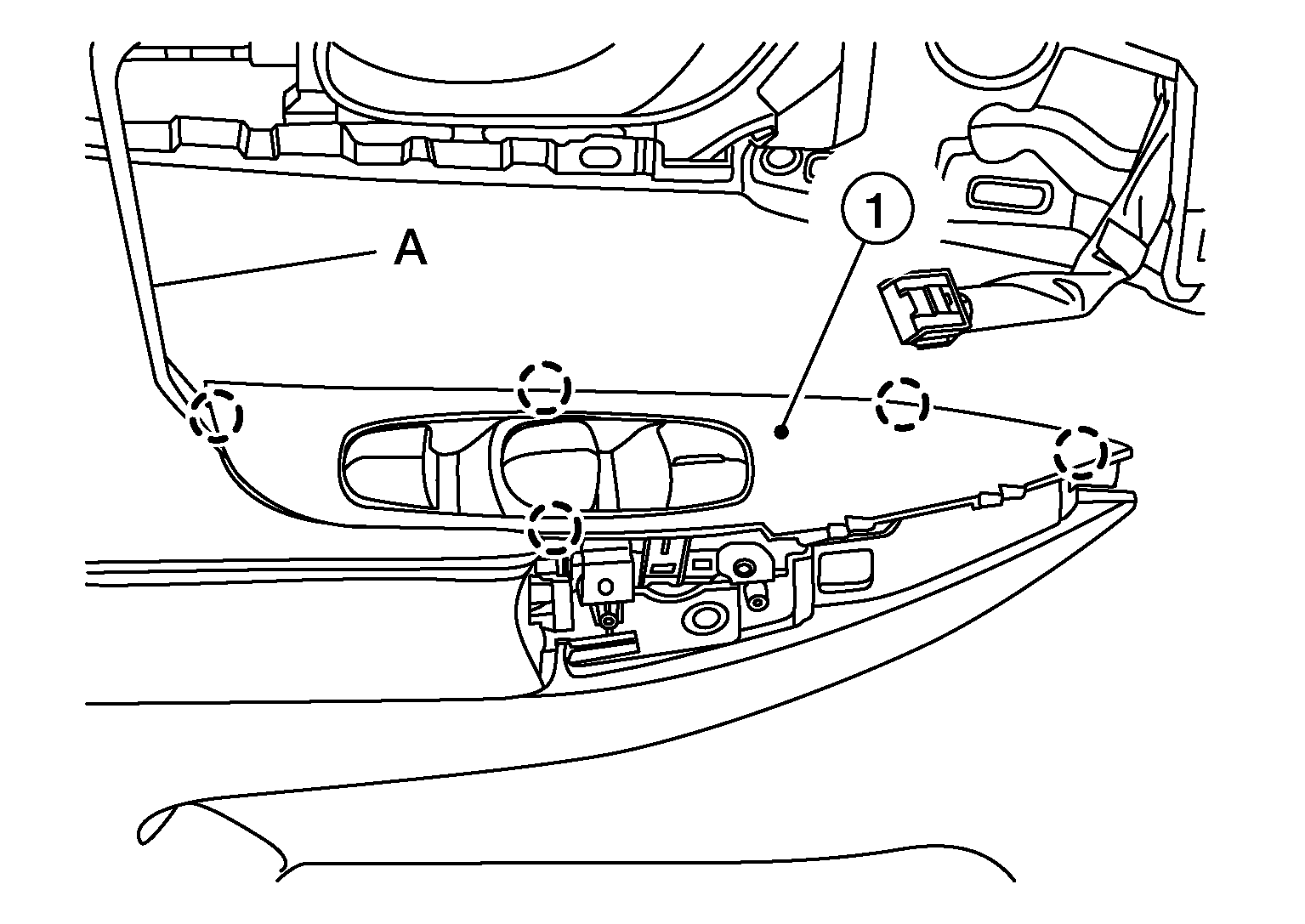

  2. Release pawls using a suitable tool (A) and remove main power window and door lock/unlock switch finisher (1).
    GNSALJIA1466Z-466Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

  3. Disconnect the harness connectors from the main power window and door lock/unlock switch.

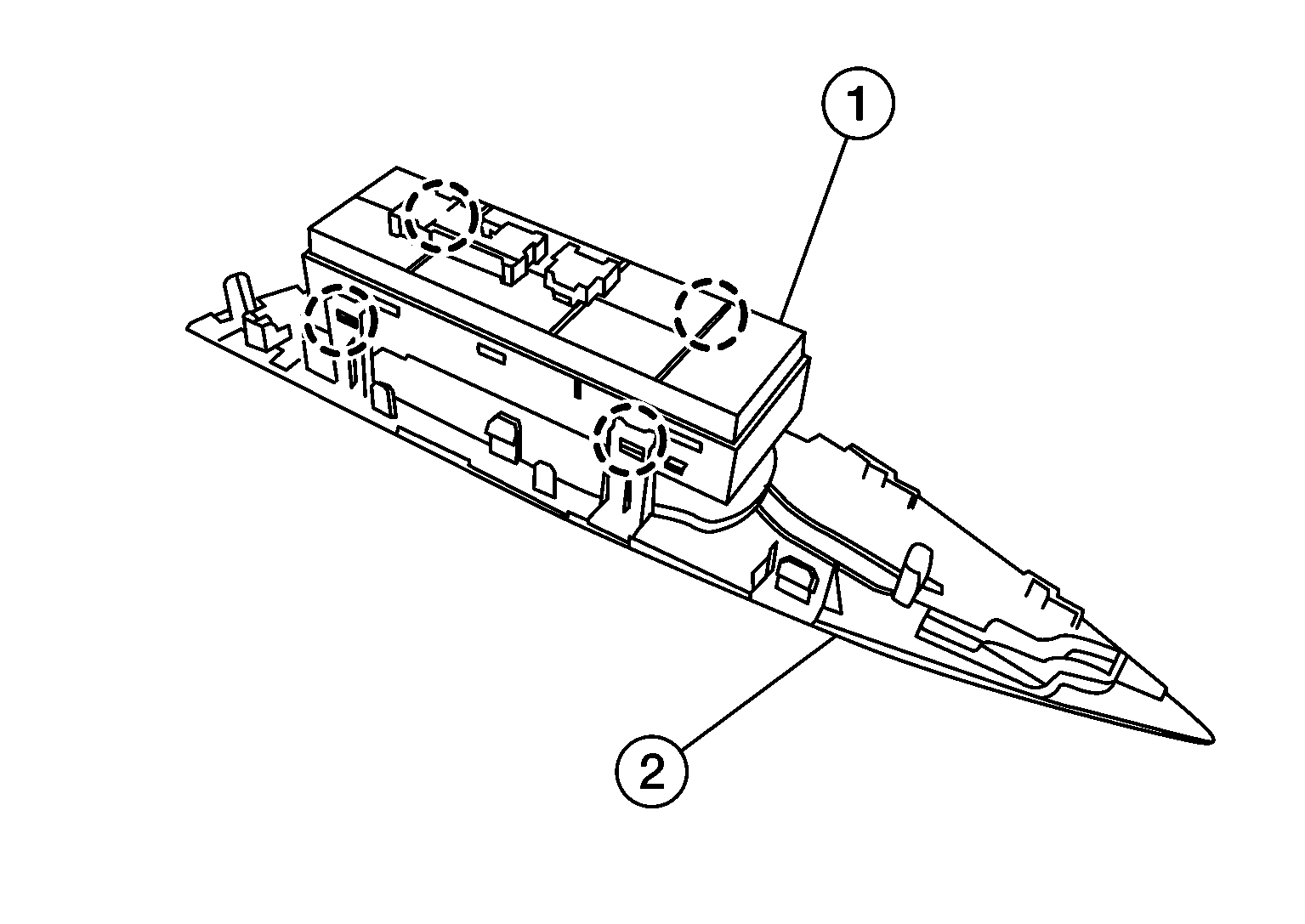

  4. Release the pawls, then separate the main power window and door lock/unlock switch (1) from the switch finisher (2).
    GNSALKIA3471Z-471Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
