Drivers Assistance Systems - ADAS
>>
Intelligent Around View Monitor System
>>
System Description
>>
Component Parts
>>
Sonar Control Unit

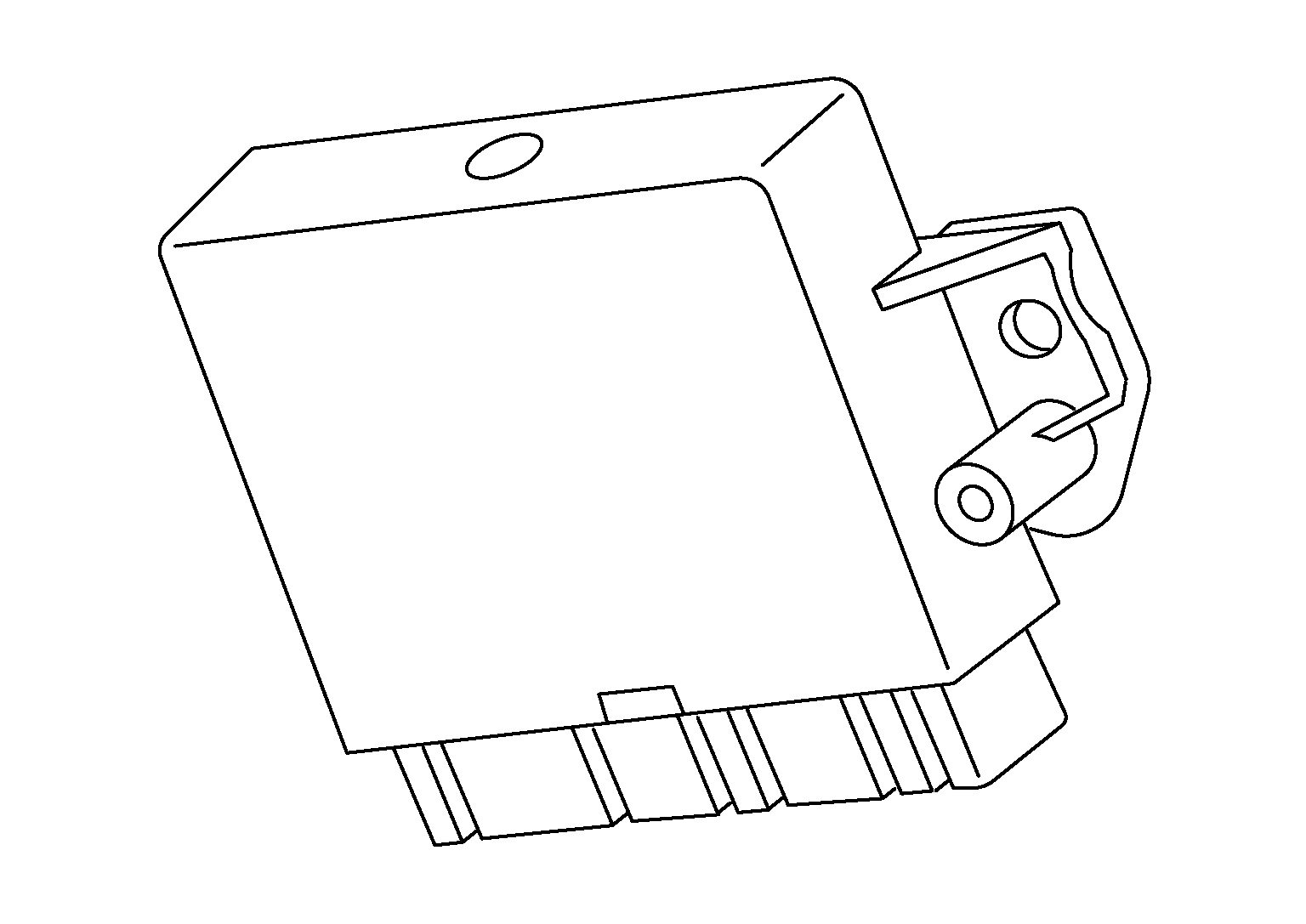

Sonar Control Unit
Sonar sensor signals are received by the sonar control unit and transmitted to the combination meter via CAN communication for the indicator display.
Courtesy of NISSAN NORTH AMERICA, INC.
Sonar control unit outputs a buzzer signal for audible alert.
Courtesy of NISSAN NORTH AMERICA, INC.
