System Control Condition Display

Quickly push (less than 1.5 seconds) and release the ICC MAIN switch.

Condition

Display on ICC system display

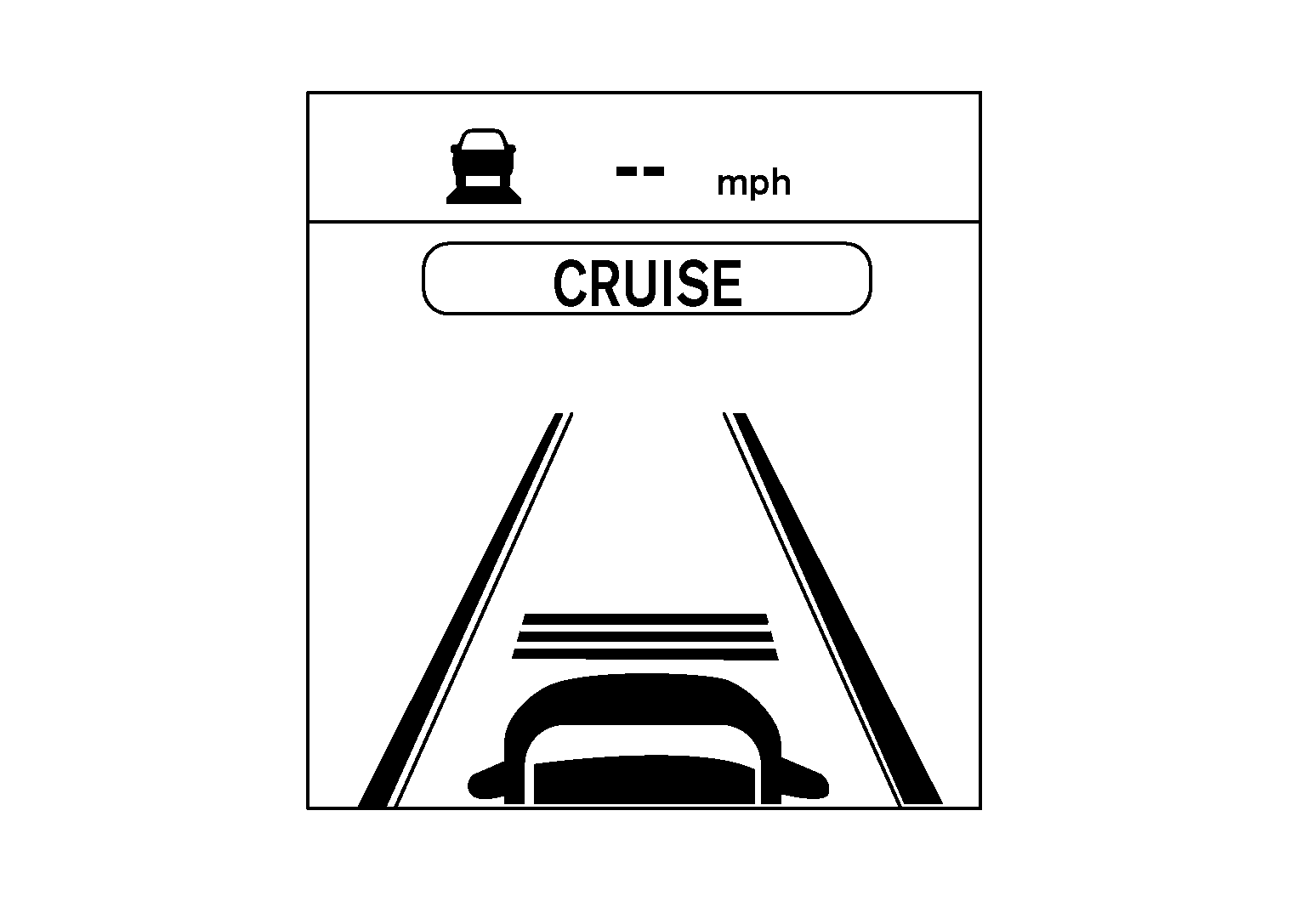

Standby mode

GNSALOIA0545Z-545Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

Without a vehicle ahead

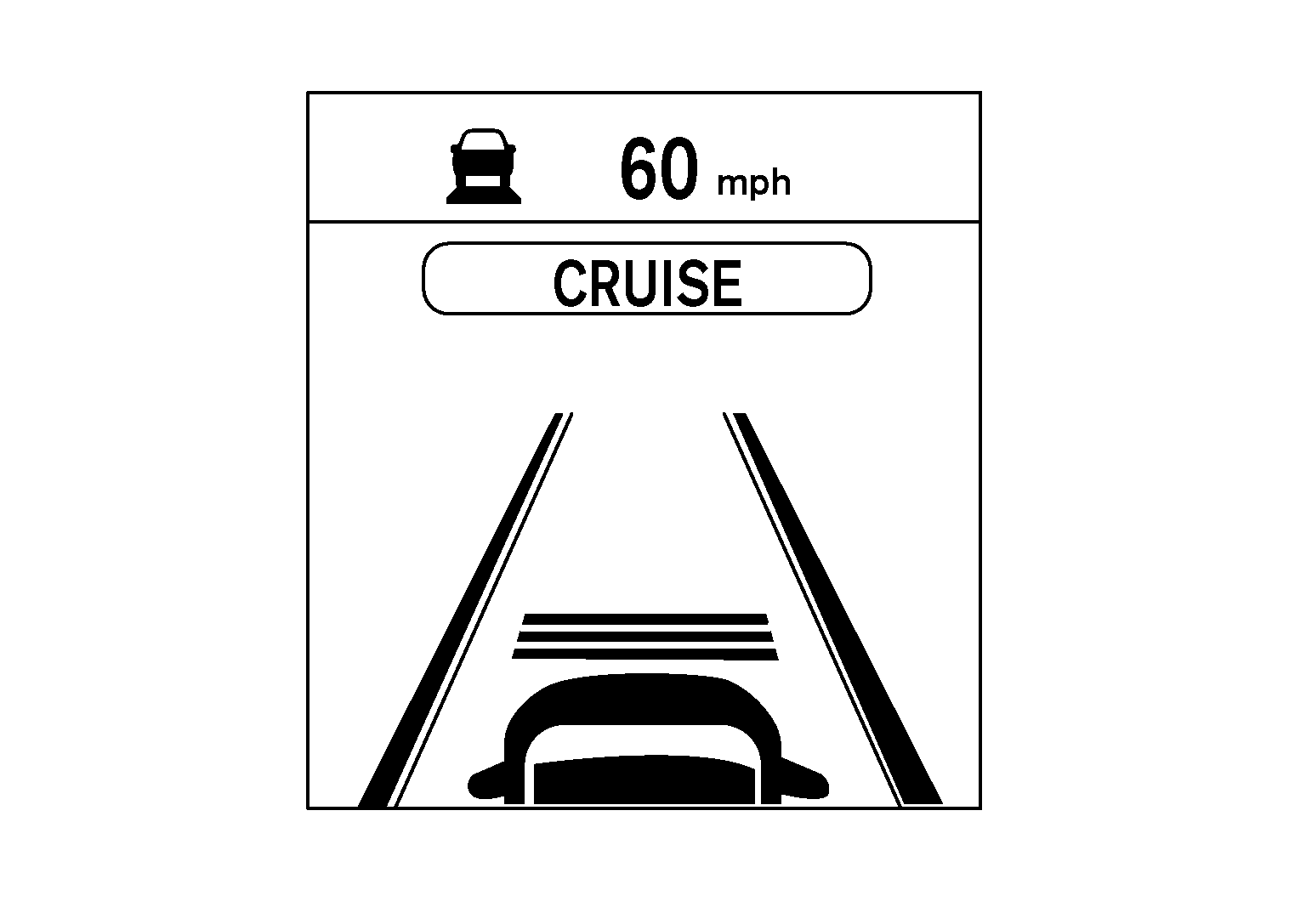

Set vehicle distance (Long)

GNSALOIA0546Z-546Courtesy of NISSAN NORTH AMERICA, INC.

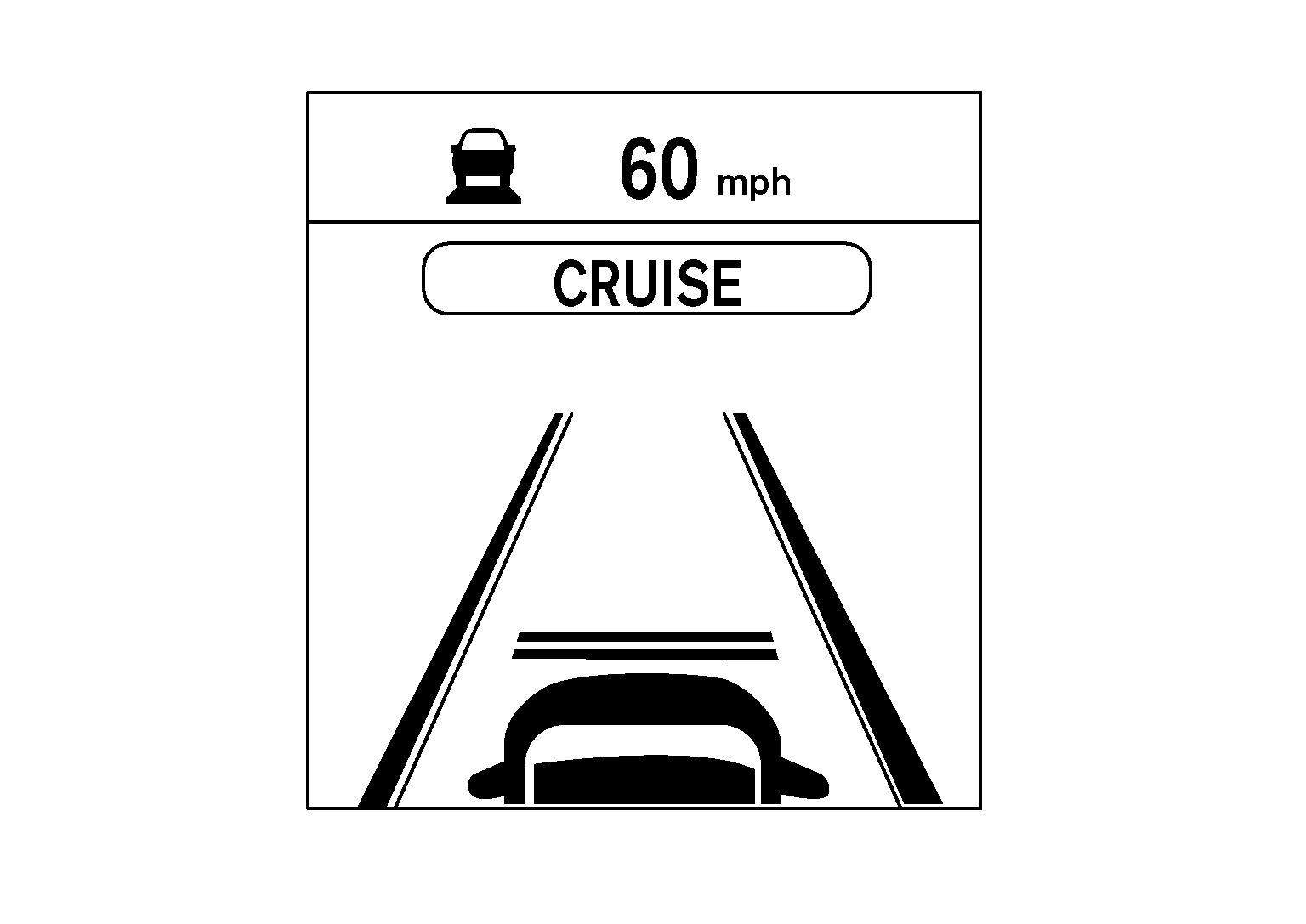

Set vehicle distance (Middle)

GNSALOIA0547Z-547Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Short)

GNSALOIA0548Z-548Courtesy of NISSAN NORTH AMERICA, INC.

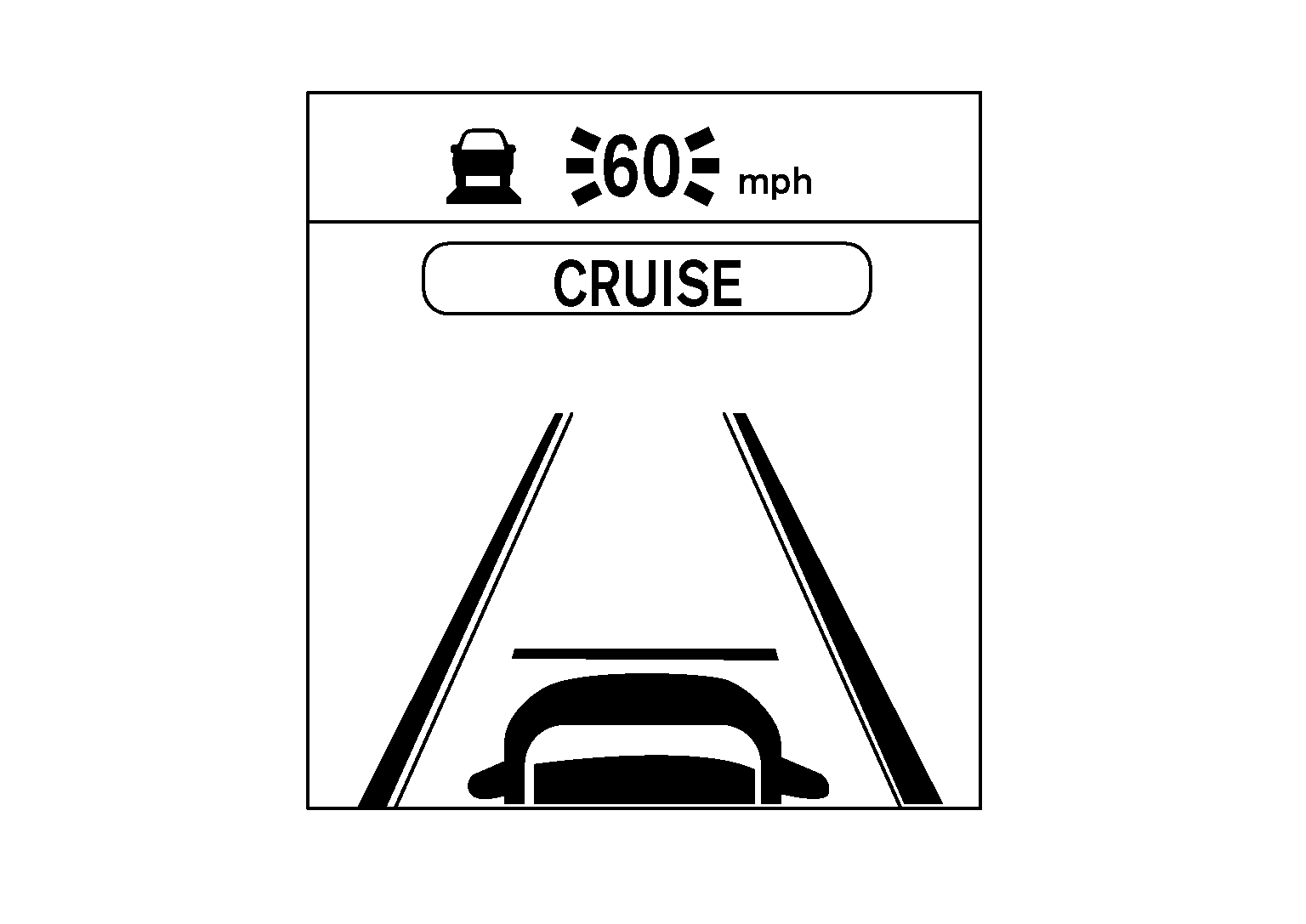

When the vehicle speed exceeds the set speed

GNSALOIA0549Z-549Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

With a vehicle ahead

Set vehicle distance (Long)

GNSALOIA0550Z-550Courtesy of NISSAN NORTH AMERICA, INC.

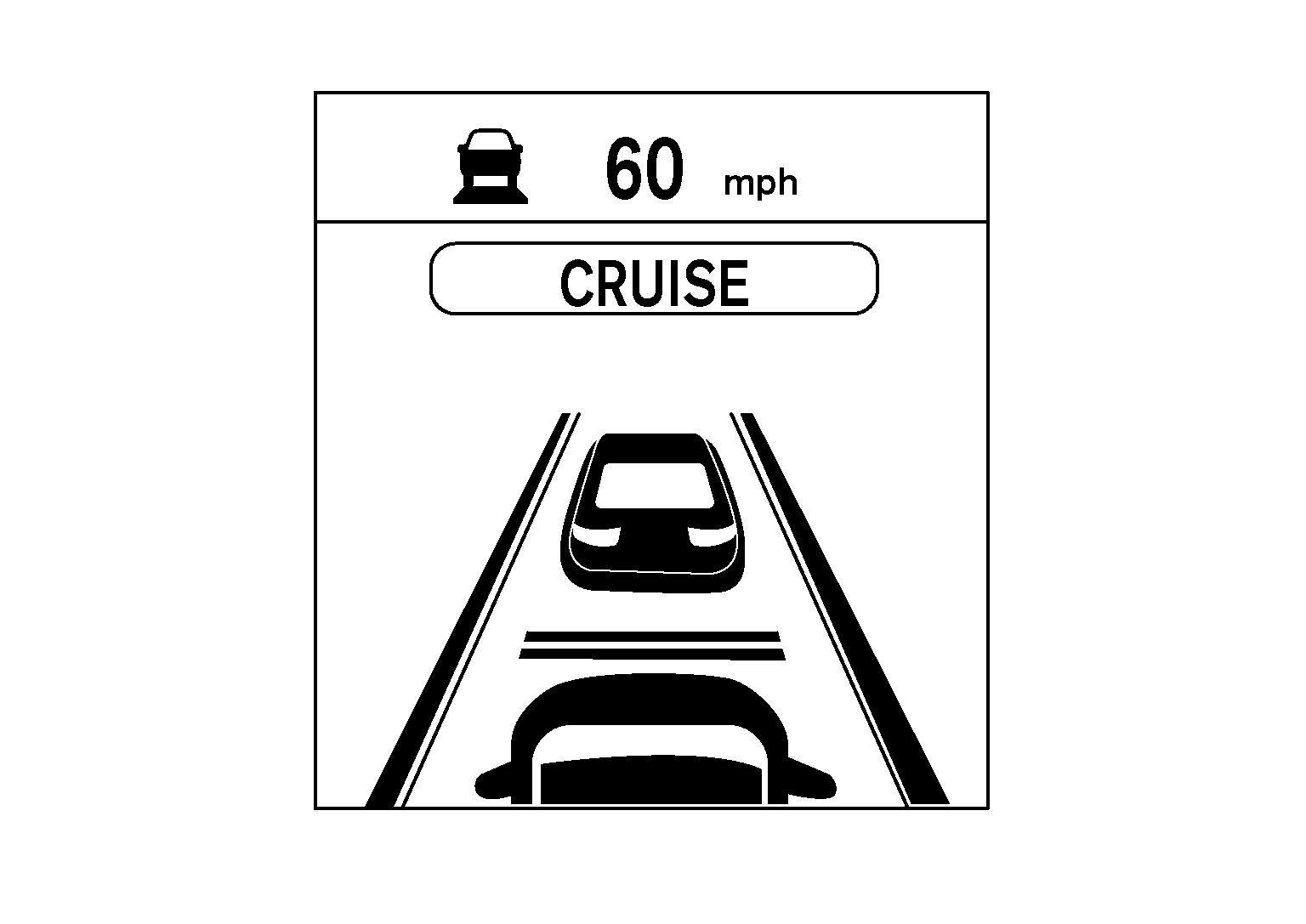

Set vehicle distance (Middle)

GNSALOIA0551Z-551Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Short)

GNSALOIA0552Z-552Courtesy of NISSAN NORTH AMERICA, INC.

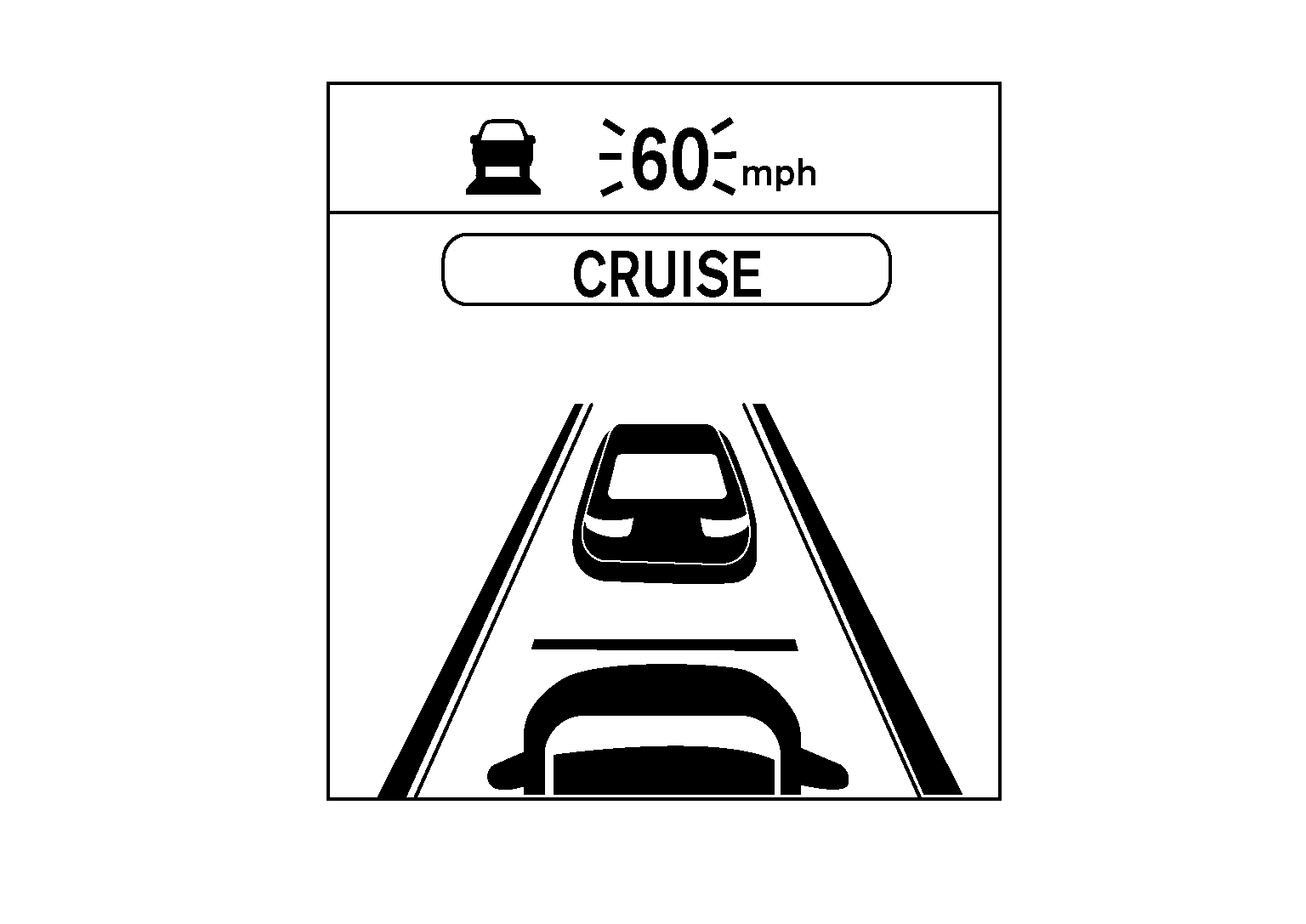

When the vehicle speed exceeds the set speed

GNSALOIA0553Z-553Courtesy of NISSAN NORTH AMERICA, INC.
