Exploded View

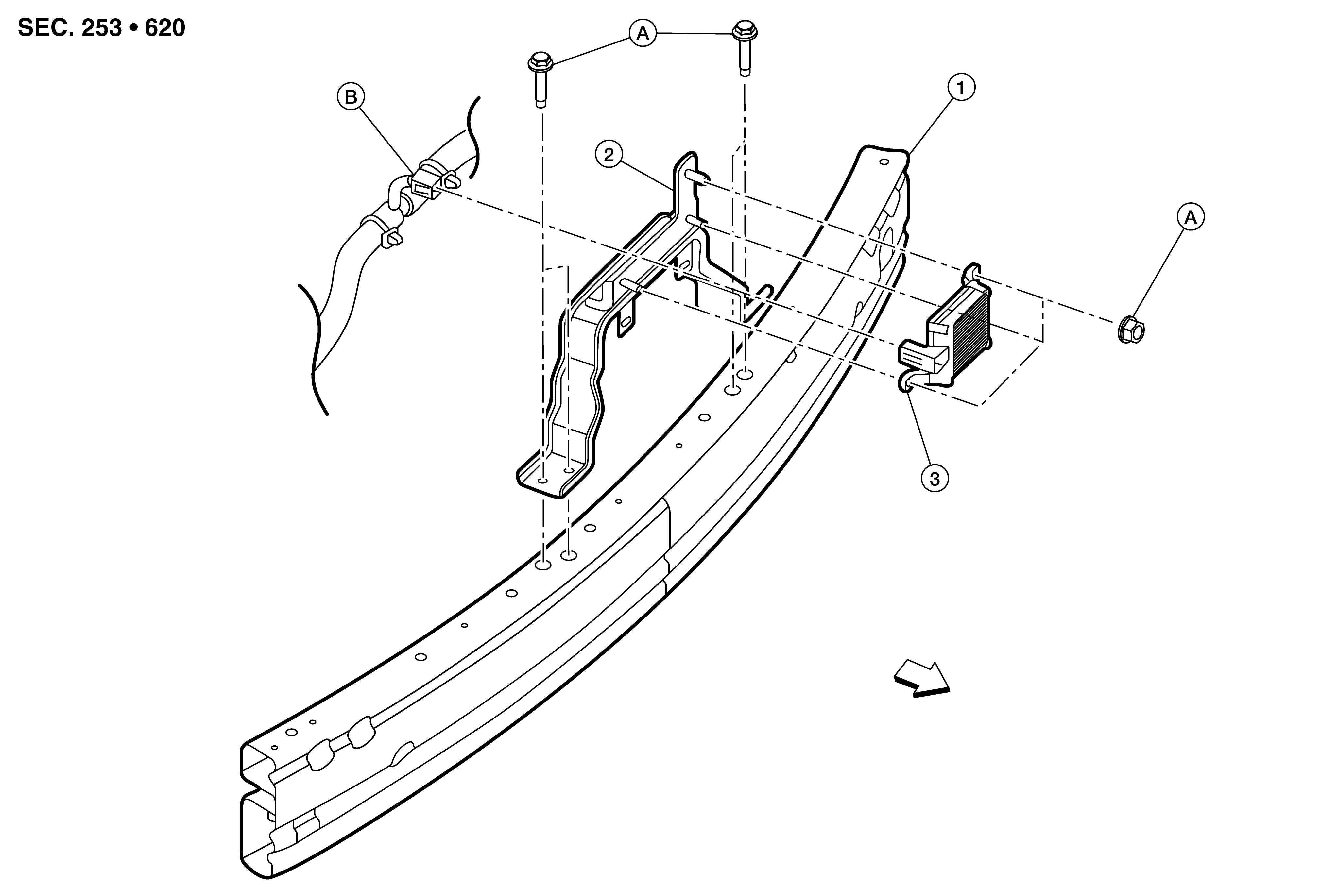

GNSALOIA0556Z-556Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front bumper reinforcement

2.

Distance sensor bracket

3.

Distance sensor

A.

Refer to Removal and Installation .

B.

Distance sensor harness connector

SYMBOL

Front
