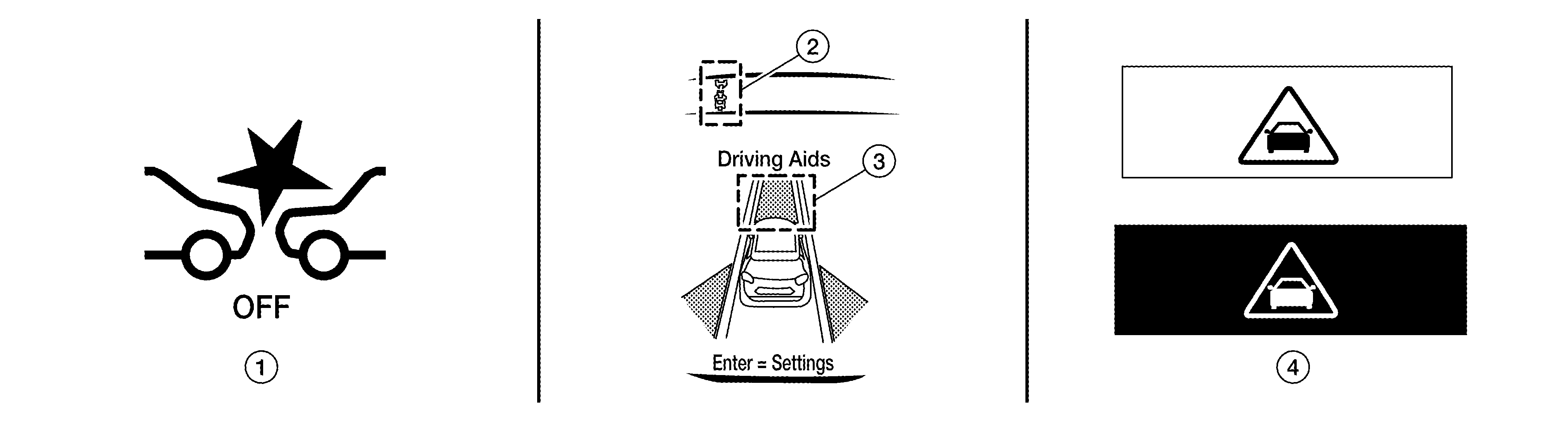

System Display

No.

Switch name

Description

1.

AEB warning lamp

• AEB warning lamp indicates that an abnormal condition is present in AEB system
• When the AEB system turns OFF, the AEB warning lamp will illuminate.

2.

Vehicle ahead indicator

• Indicates whether it detects a vehicle ahead.
• Blinks when there is a possibility of a collision with the vehicle ahead.

3.

AEB system indicator "Forward" position

• Indicates whether it detects a vehicle ahead.
• Blinks when there is a possibility of a collision with the vehicle ahead.

4.

AEB warning

Displays immediately before the harder brake operates
