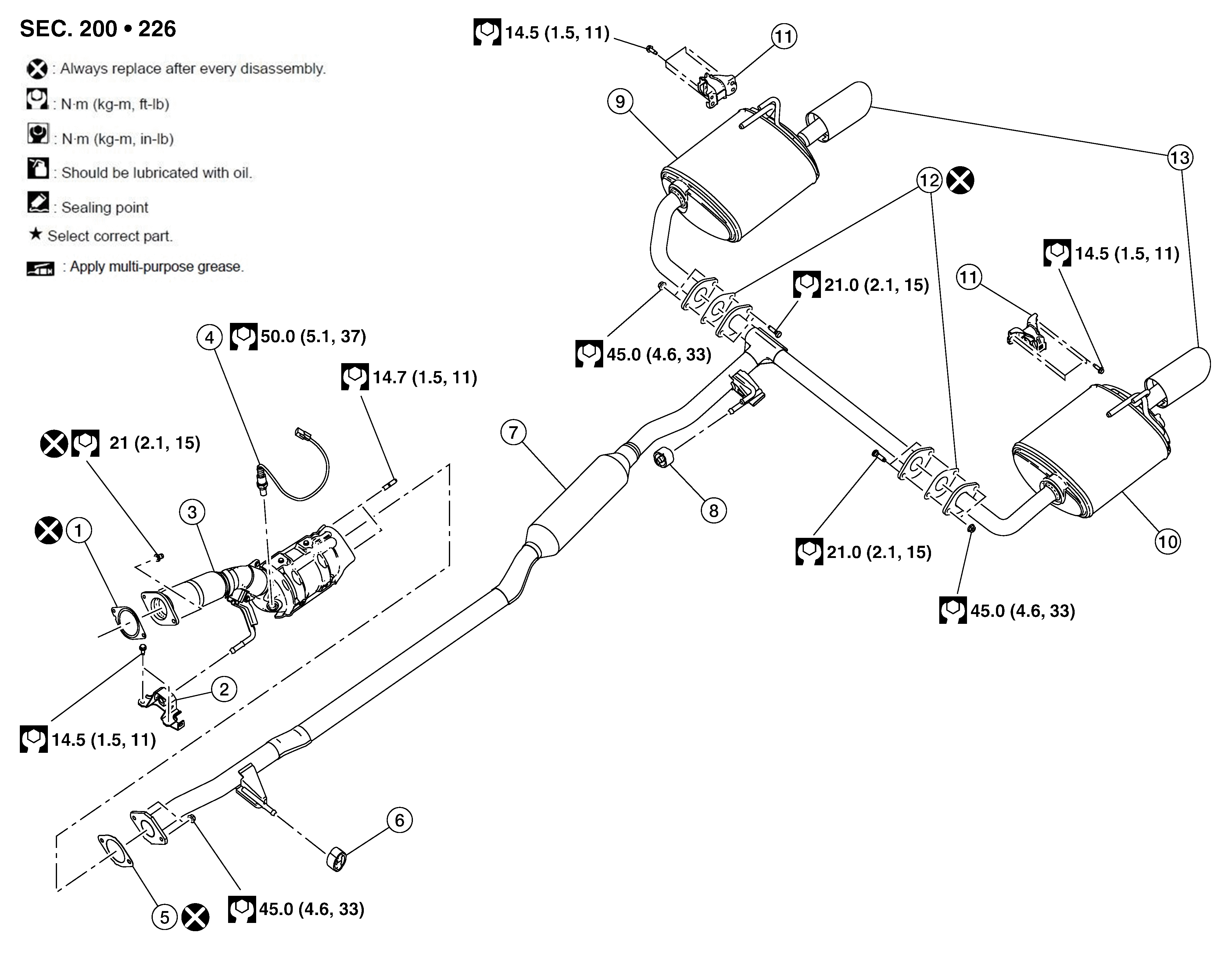

EXHAUST SYSTEM : Exploded View
|
1. |
Gasket |
2. |
Front exhaust hanger |
3. |
Front exhaust tube |
|
4. |
Heated oxygen sensor 2 |
5. |
Gasket |
6. |
Mounting rubber |
|
7. |
Center exhaust tube |
8. |
Mounting rubber |
9. |
Rear muffler (RH) |
|
10. |
Rear muffler (LH) |
11. |
Rear muffler bracket |
12. |
Gasket |
|
13. |
Exhaust Finishers [except S grade (not serviceable)] |
||||
