Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

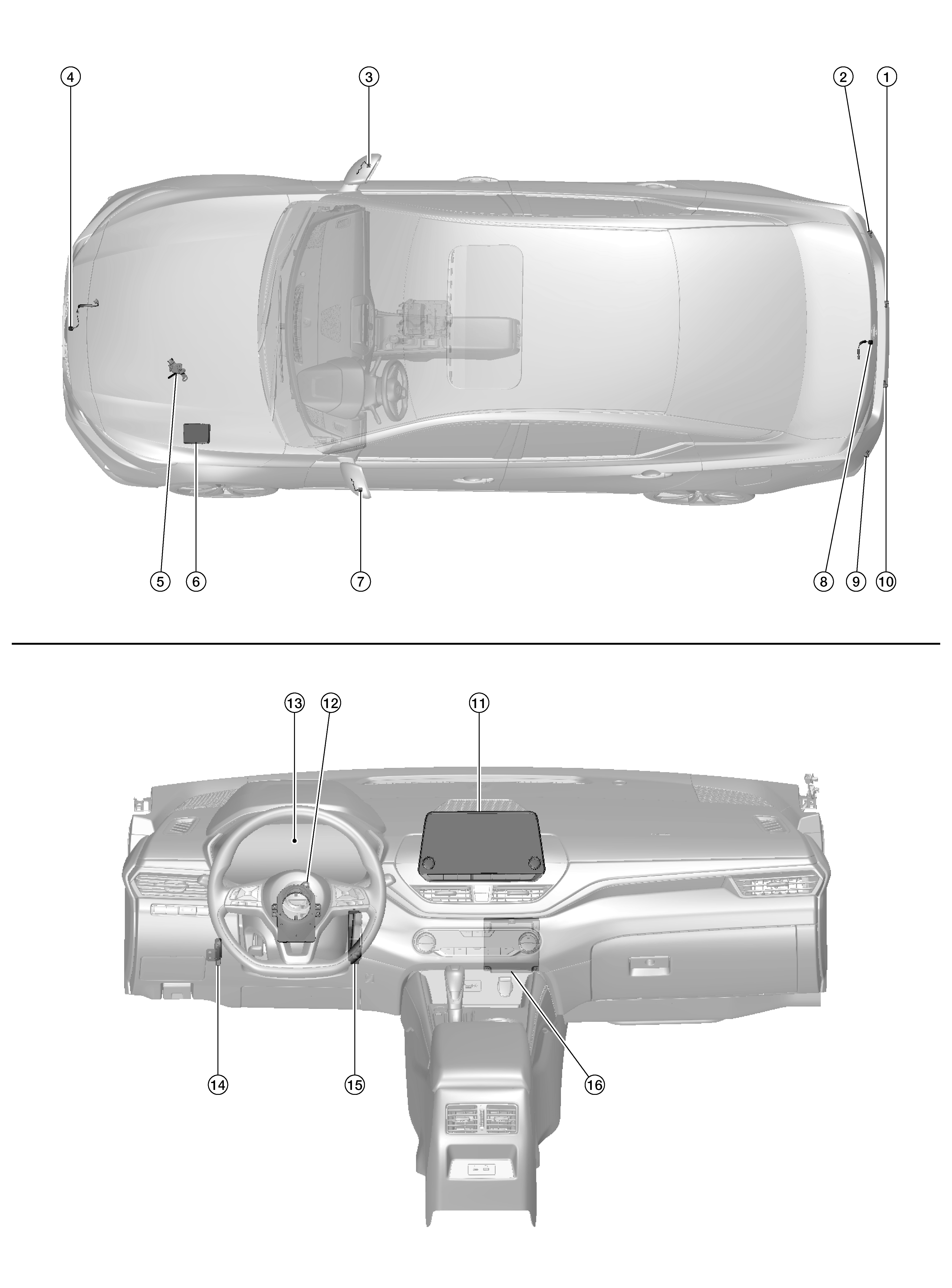

No.	Component	Function
1.	Rear sonar sensor RH inner	Refer to Component Description .
2.	Rear sonar sensor RH outer	Refer to Component Description .
3.	Door mirror RH (side camera)	Refer to Component Description .
4.	Front camera	Refer to Component Description .
5.	Transmission range switch	Supplies the reverse signal to the AV control unit.
6.	IPDM E/R	The pass-through for the reverse signal to the AV control unit.
7.	Door mirror LH (side camera)	Refer to Component Description .
8.	Rear camera	Refer to Component Description .
9.	Rear sonar sensor LH outer	Refer to Component Description .
10.	Rear sonar sensor LH inner	Refer to Component Description .
11.	AV control unit	Refer to Component Description .
12.	Chassis control module (with built in steering angle sensor)	Refer to Component Description .
13.	Combination meter	Refer to Component Description .
14.	Sonar buzzer	Refer to Component Description .
15.	Sonar control unit	Refer to Component Description .
