Removal And Installation: Removal

WARNING: This page is about a different car, the 2017 Nissan 370Z and 2016 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

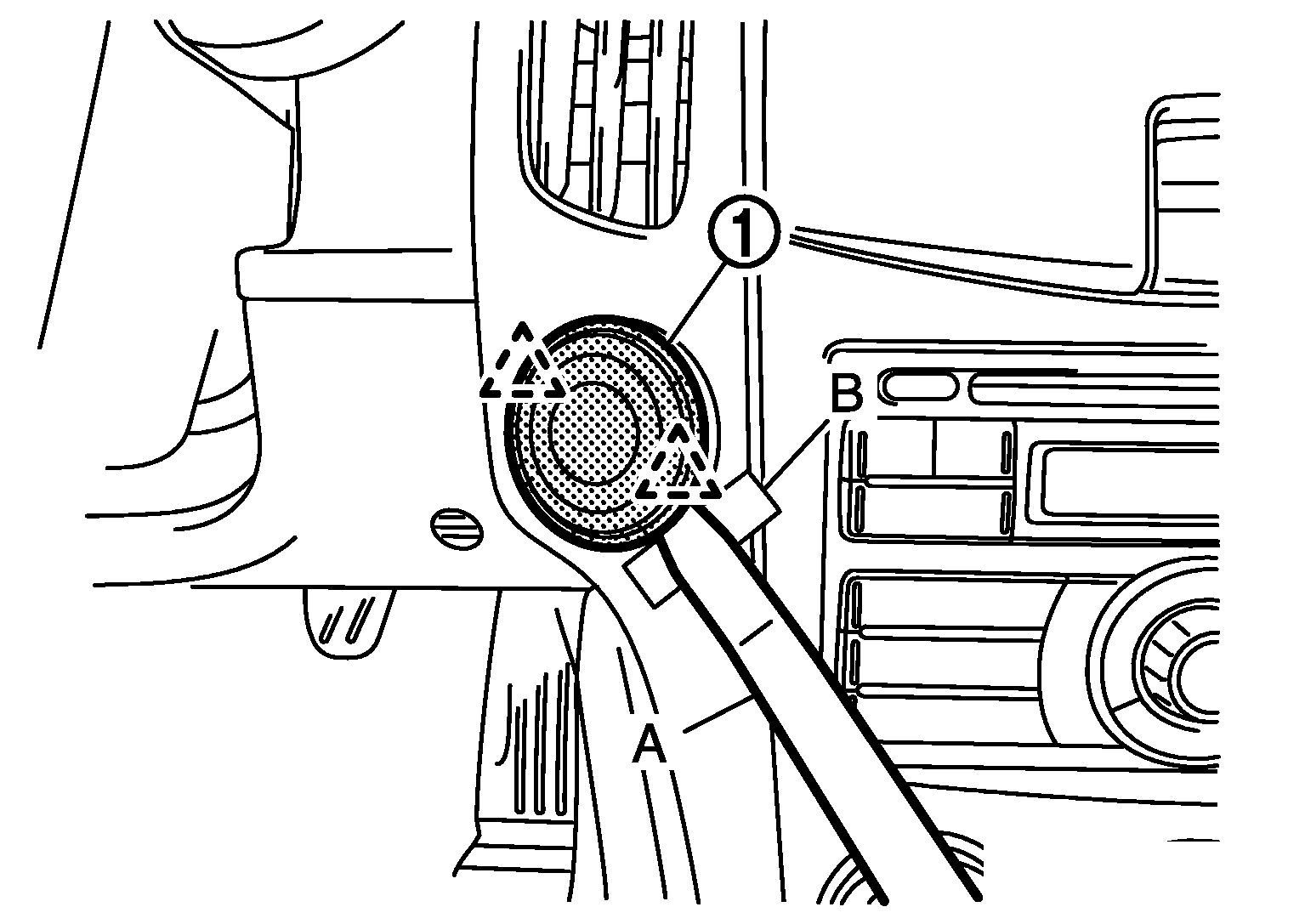

Disconnect the push-button ignition switch (1) fixing pawl using a remover tool (A), and then remove push-button ignition switch.

G06053660Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:

Always apply a protective tape (B) on instrument panel for protection.

SANKAKU-H : Pawl
