Section 4 (Body Control System)
>>
System Description
>>
Power Consumption Control System
>>
Component Location
Component Location
WARNING:
This page is about a different car, the 2017 Nissan 370Z and 2016 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.

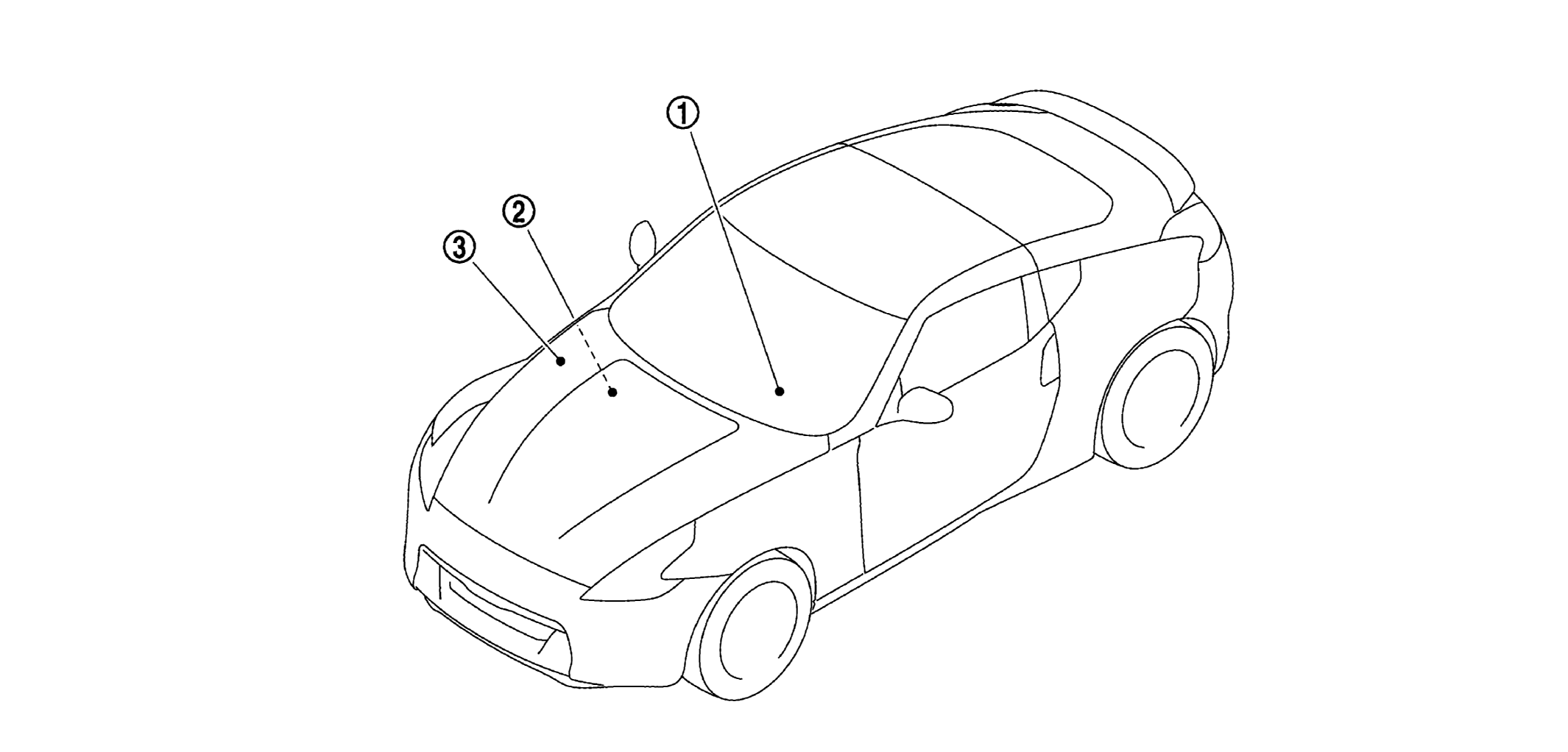

1.
Combination meter
2.
BCM
Refer to
COMPONENT LOCATION
.
3.
IPDM E/R
Refer to
COMPONENT LOCATION
.
