YAW RATE/SIDE G SENSOR : Exploded View

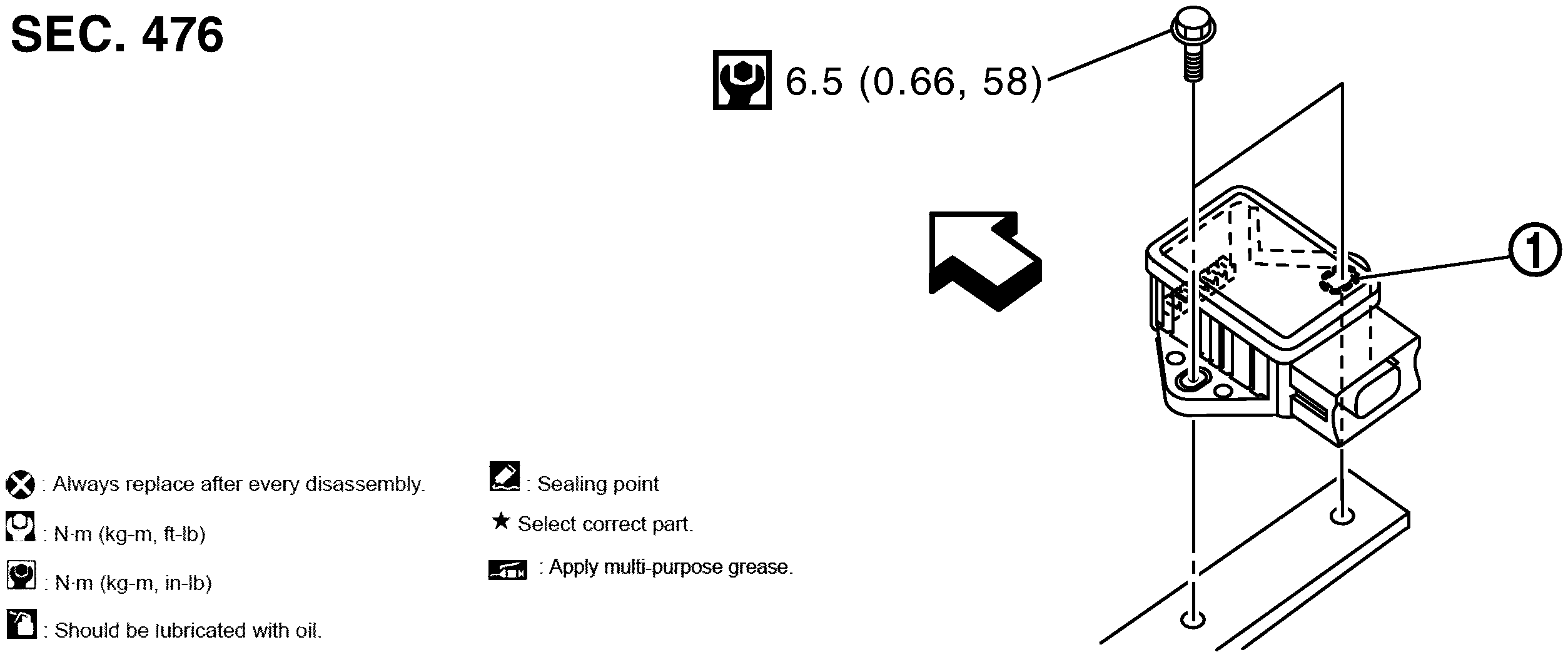

Fig 1: Yaw Rate/Side G Sensor With Torque Specifications
GNSJSFIA02GB-002Courtesy of NISSAN NORTH AMERICA, INC.

1.

Yaw rate/side G sensor

SYMBOL : Vehicle front

Refer to HOW TO USE THIS INFORMATION : Repair Information for symbols in the figure.
