Component Location
|

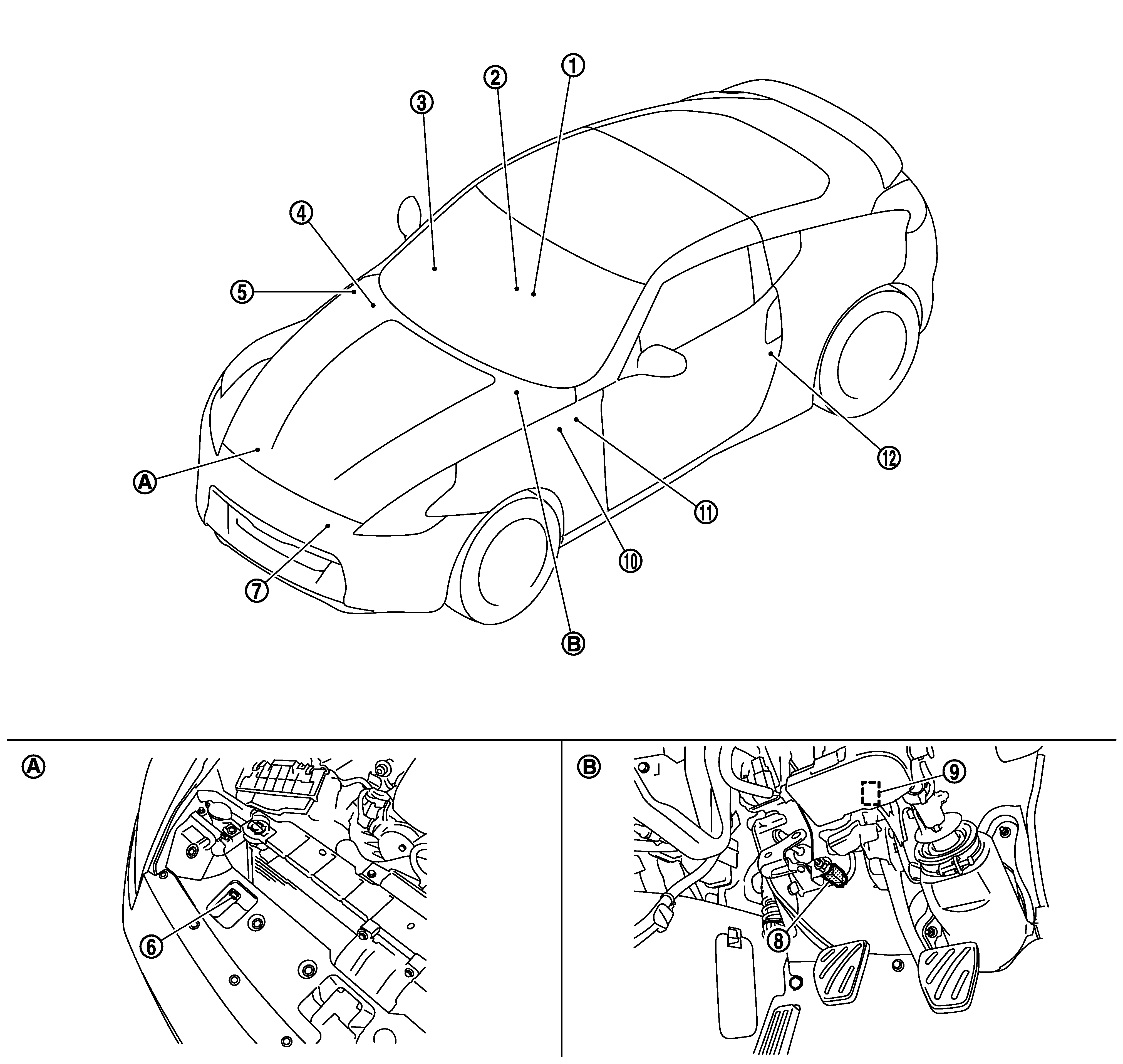

1. |
Combination meter M53, M54 |
2. |
Push-button ignition switch M50 |
3. |
Remote keyless entry receiver M104 Refer to Component Location .. |
|
4. |
BCM M118, M119, M121, M122, M123 Refer to Component Location .. |
5. |
IPDM E/R E5, E6, E7, E9 Refer to Component Location .. |
6. |
Hood switch |
|
7. |
Horn (low) E69, E70 |
8. |
Clutch interlock switch E111 (for M/T models) |
9. |
Stop lamp switch E110 |
|
10. |
ABS actuator and electric unit (control unit) E41 Refer to Component Location .. |
11. |
Key slot M22 |
12. |
Driver side door switch B16 |
|
A. |
Built in hood lock RH |
B. |
View with instrument driver lower cover removed |
||
|

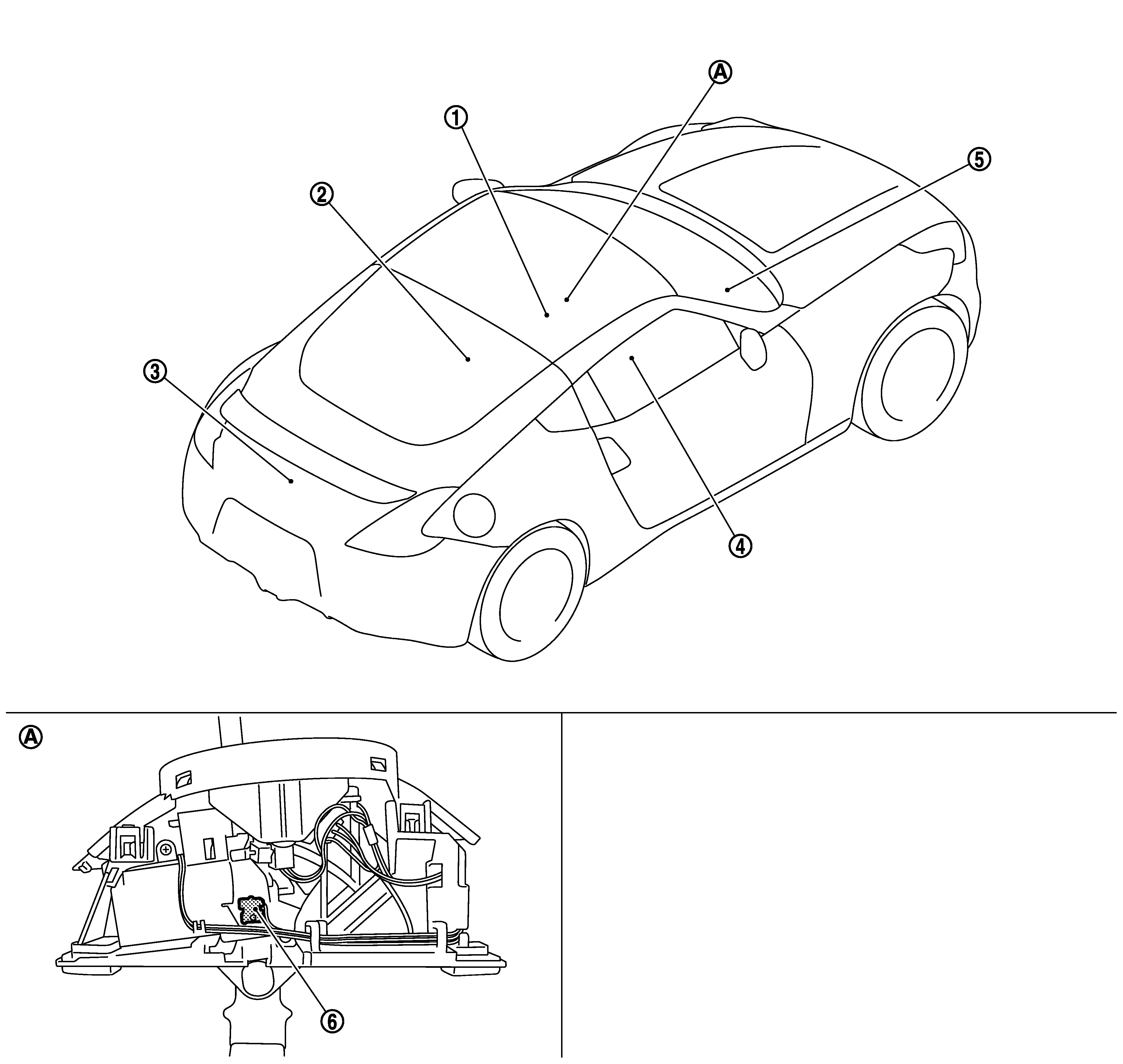

1. |
Inside key antenna (console) M257 |
2. |
Inside key antenna (luggage room) B222 |
3. |
Back door switch B66 |
|
4. |
TCM F301 |
5. |
ECM M107 |
6. |
A/T shift selector (detention switch) M137 |
|
A. |
Built in A/T shift selector |
||||
|
Component |
Reference |
|
BCM |
Refer to Component Description . |
|
Push-button ignition switch |
Refer to Component Description . |
|
Door switch |
Refer to Component Description . |
|
A/T shift selector (detention switch) (A/T models) |
Refer to Component Description . |
|
Inside key antenna |
Refer to Component Description . |
|
Remote keyless entry receiver |
Refer to Component Description . |
|
Stop lamp switch |
Refer to Component Location . |
|
TCM (A/T models) |
Refer to Component Description . |
|
Clutch interlock switch (M/T models) |
Refer to Component Description . |
|
Starter relay |
Refer to Component Description . |
|
Starter control relay |
Refer to Component Description . |
|
Security indicator lamp |
Refer to Diagnosis Procedure . |
|
Key warning lamp |
Refer to Diagnosis Procedure . |
